Extended Life CHP® (Chrome-Hardened Pin) Chain

Pin Link Plate: outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Material: heat-treated carbon steel

Extended Life CHP® Pins: chrome-hardened pins press-fit into the pin link plate

Roller Link Plate: inner link plate

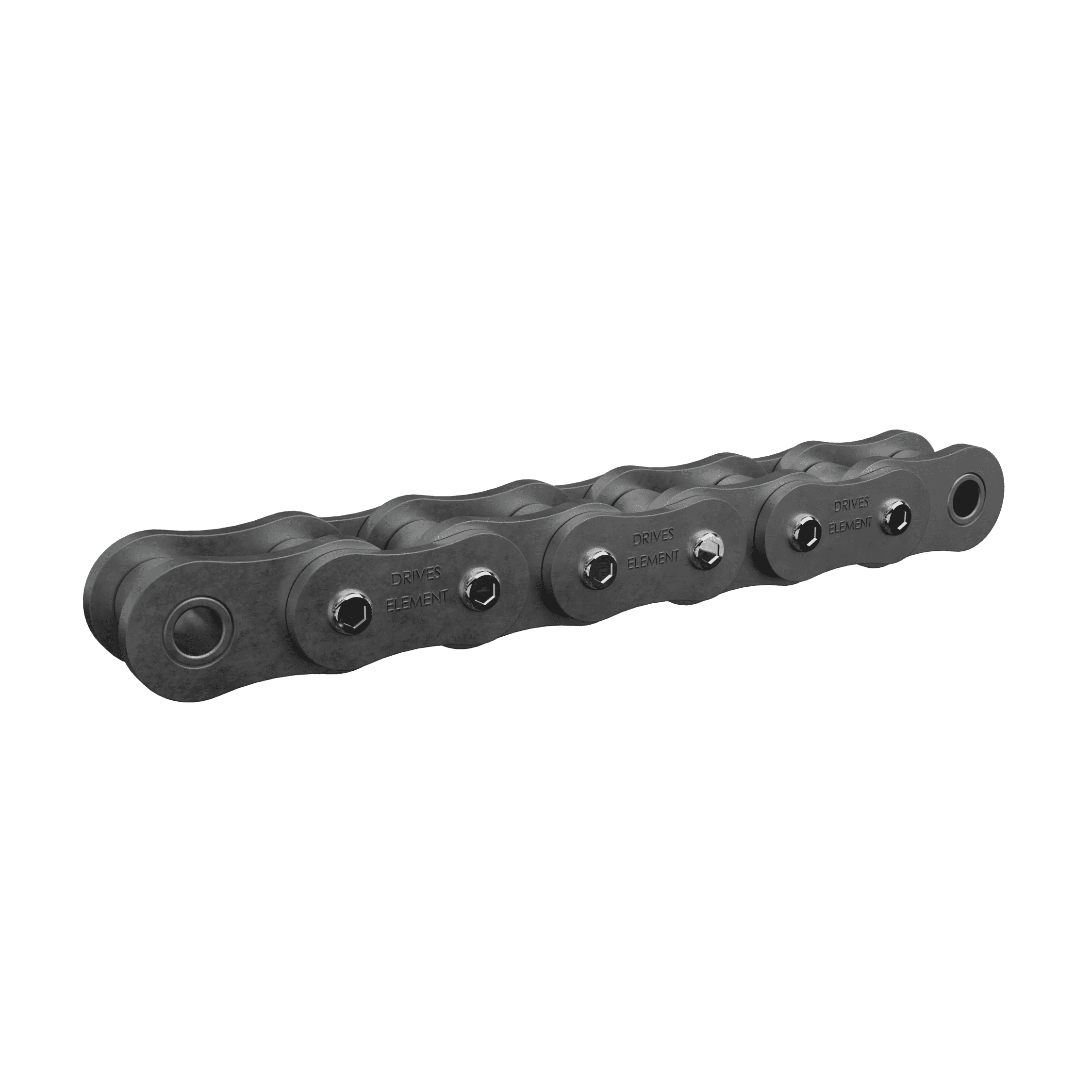

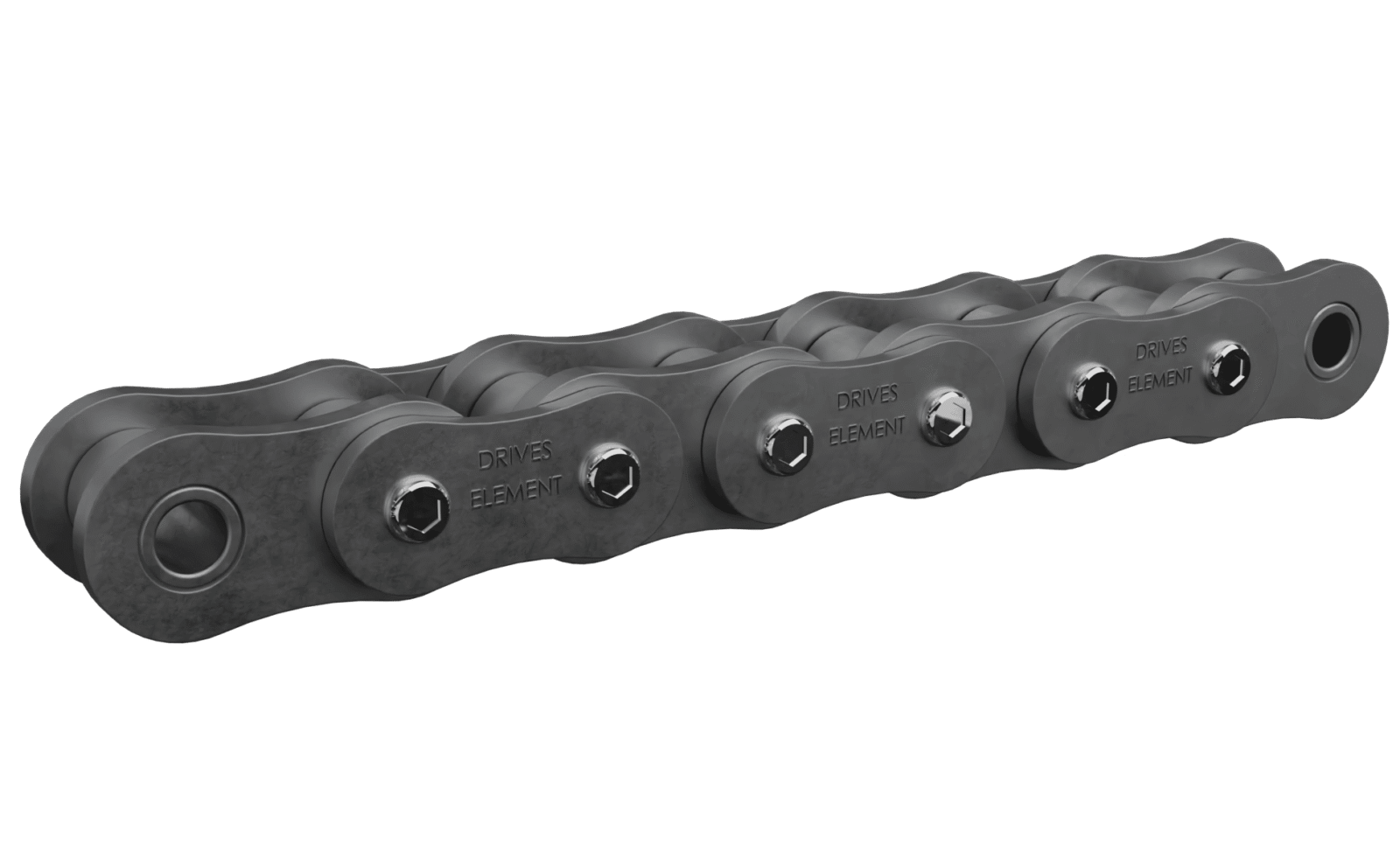

Drives Element® Reduced-Maintenance Chain

Pin Link Plate: wide-waist outer link plate

Bushing: sintered, hollow cylinder impregnated with oil and press-fit into the roller link plate (pin articulates inside the bushing)

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Silver Shield CR® Coating: heat-treated carbon steel as the base material with a Silver Shield CR coating

Extended Life CHP® Pins: chrome-hardened pins press-fit into the pin link plate

Roller Link Plate: wide-waist inner link plate

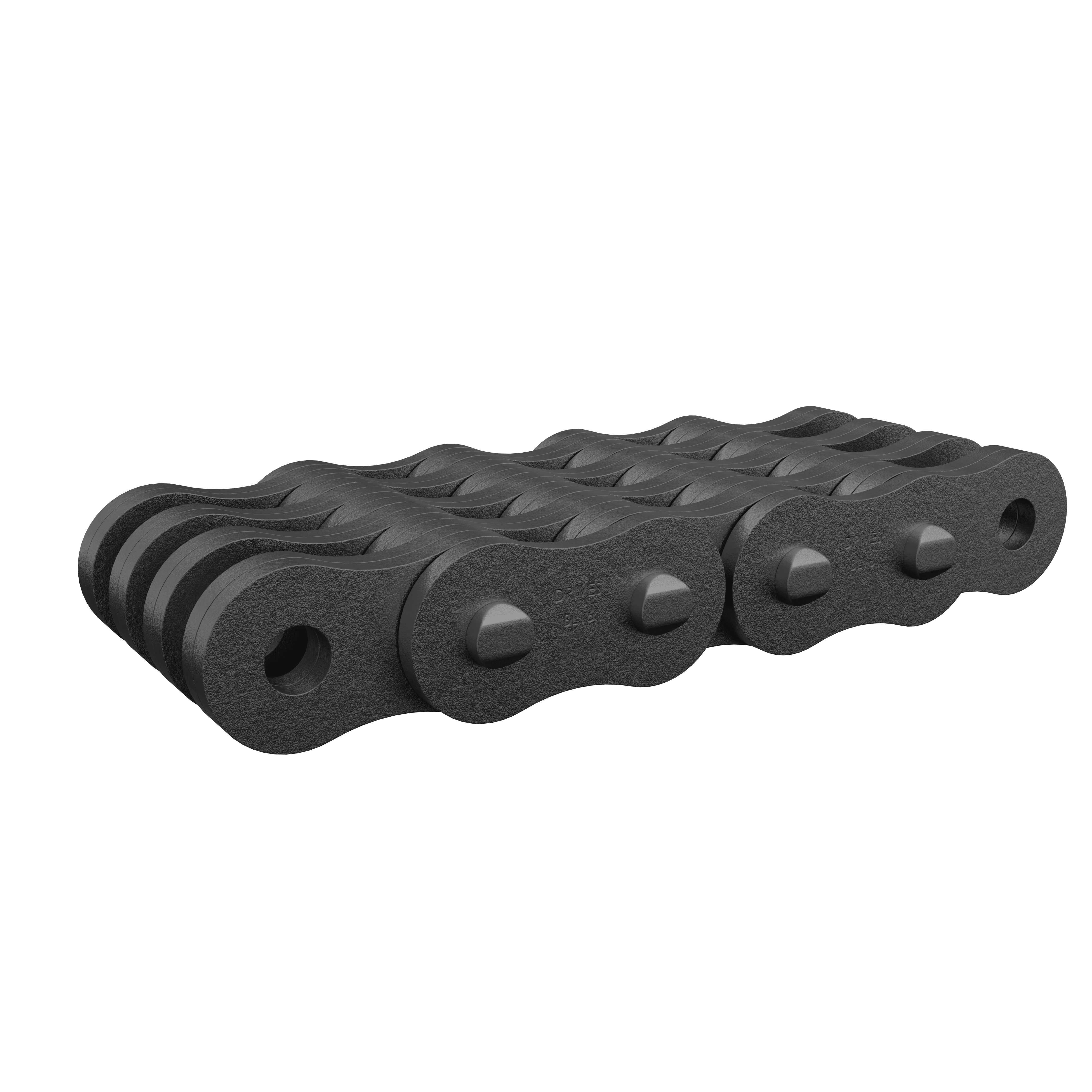

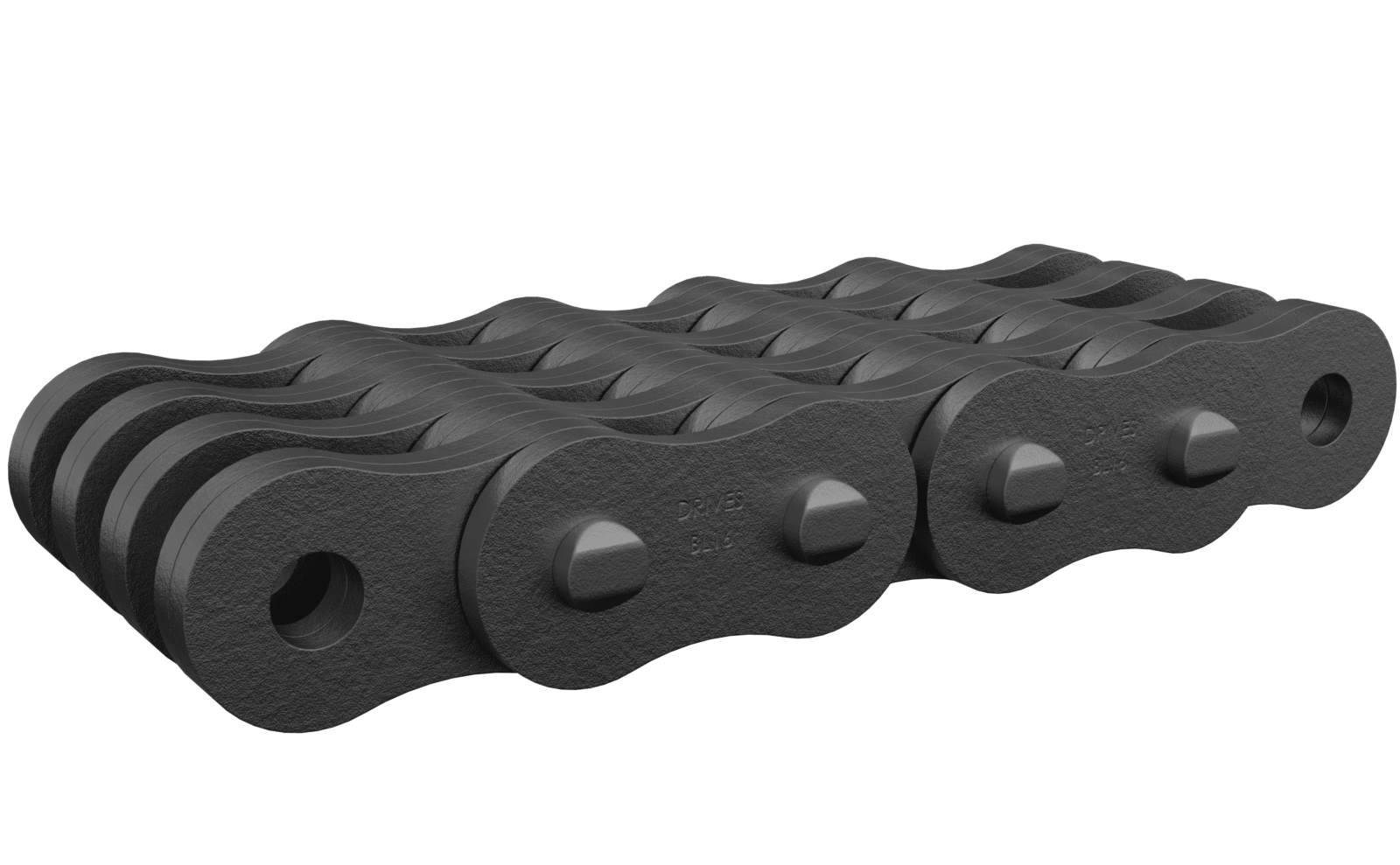

Leaf Chain

Inner Link Plates: slip-fit design allows the chain to articulate

Riveted Pin: a long solid cylinder through-hardened and press-fit into the link plates, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Outer Link Plates: press-fit design for maximum pin retention

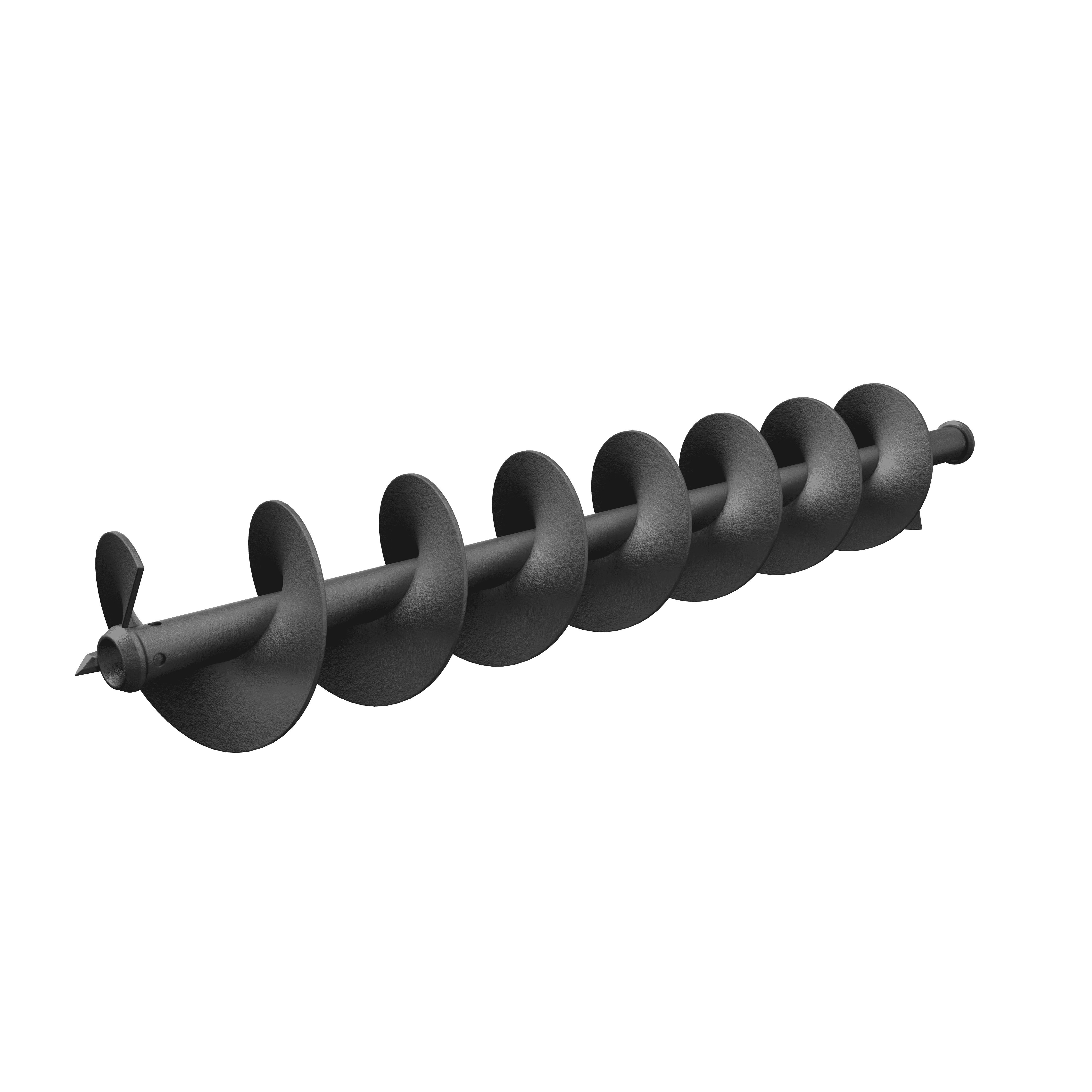

Sectional Augers

Sectional Design: individual sections welded together to form the auger

Material: heat-treated carbon steel

Shaft: tube or pipe that the sectional flights are welded onto

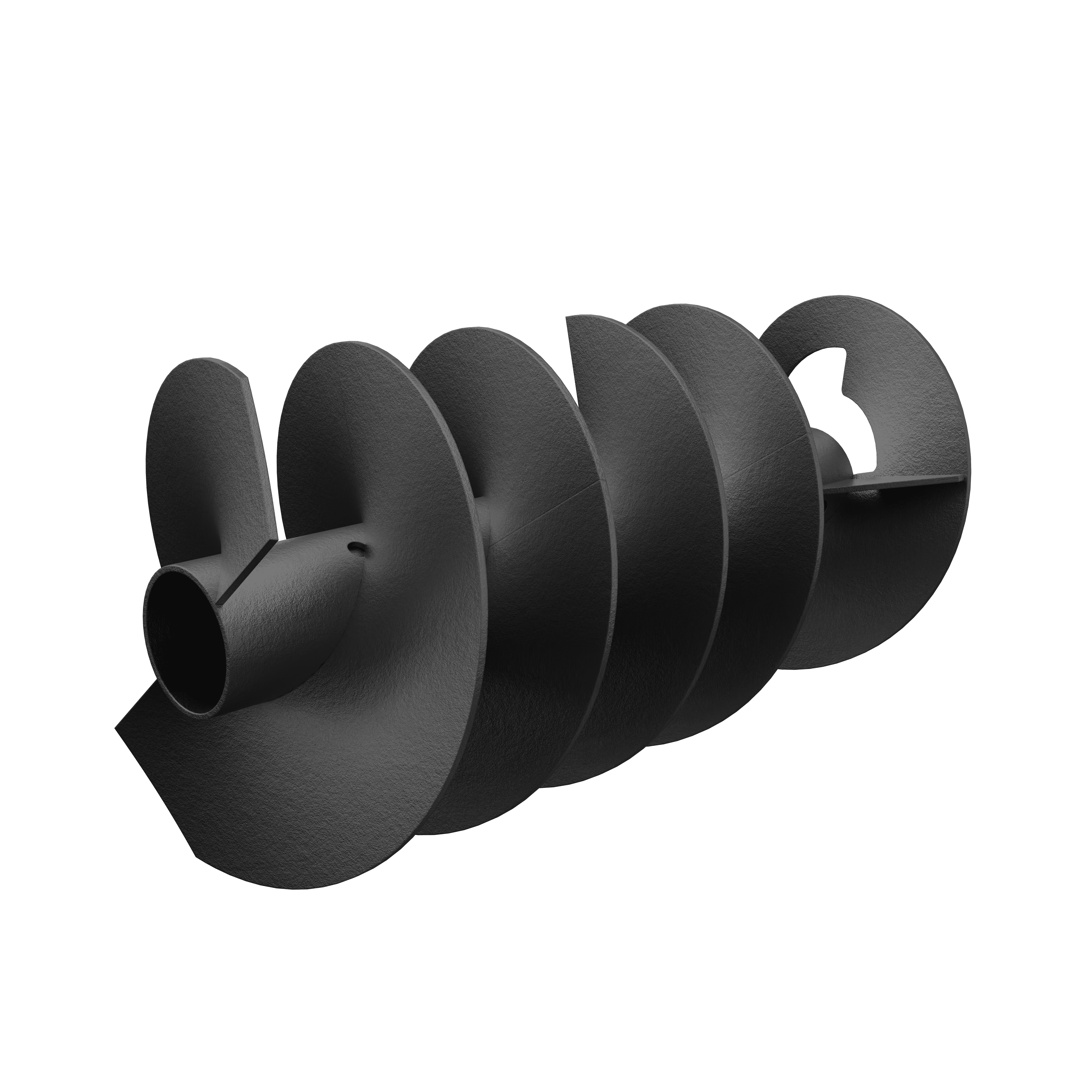

Helicoid Augers

Helicoid Design: continuous one-piece flight

Material: heat-treated carbon steel

Shaft: flight mounted (welded) to tube or pipe

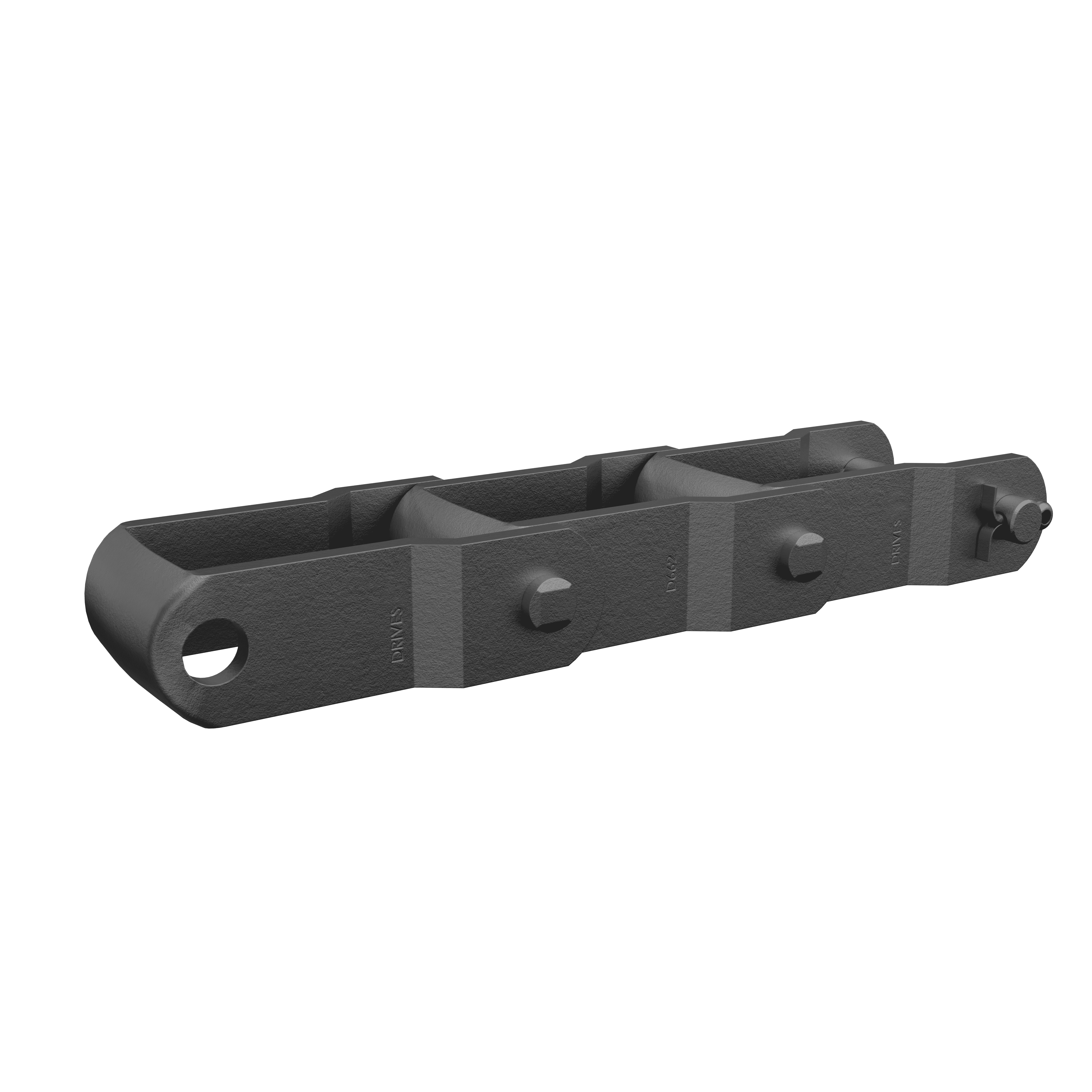

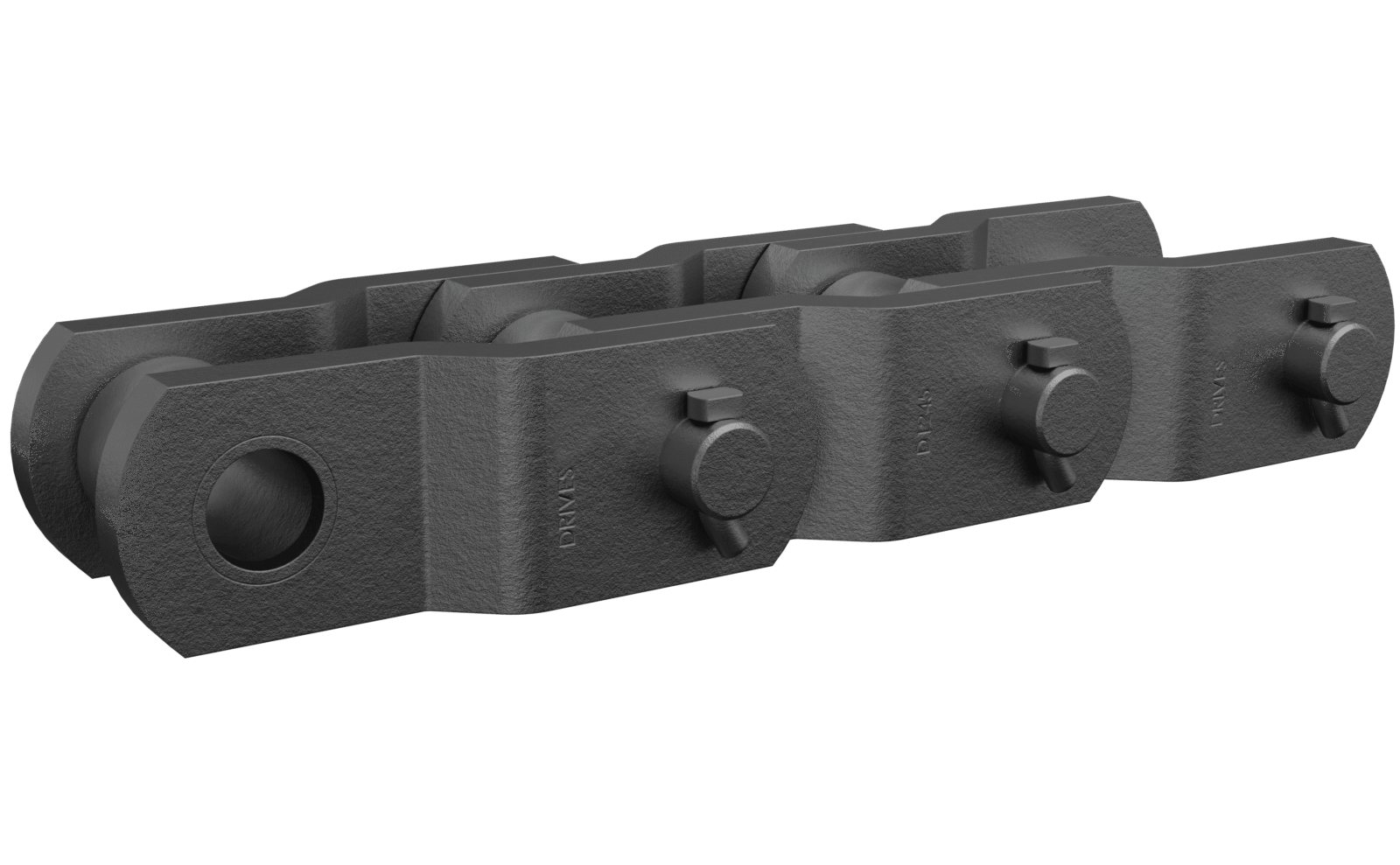

Engineered Class Drive Chain

Link Plate: formed link plate

Bushing: cold-headed hollow cylinder press-fit into the link plate

Cold Head Pin: cold head pin with cross-drilled hole for inserting a t-pin; can be case-hardened or through-hardened based on application requirements

Material: heat-treated carbon steel

Roller: cold-headed hollow cylinder which freely rotates around the bushing

Pintle Chain

Link Plate: formed open barrel link design

Connecting Link: formed open barrel connecting link

Split Cotter Pin: used as retainer for the pintle connecting link

Material: heat-treated carbon steel

Tear Drop Pin: cold headed pin designed to prevent the pin from rotating

Quad-Staked Pin: cold headed, through-hardened pin that is press fit into the formed link and quad-staked

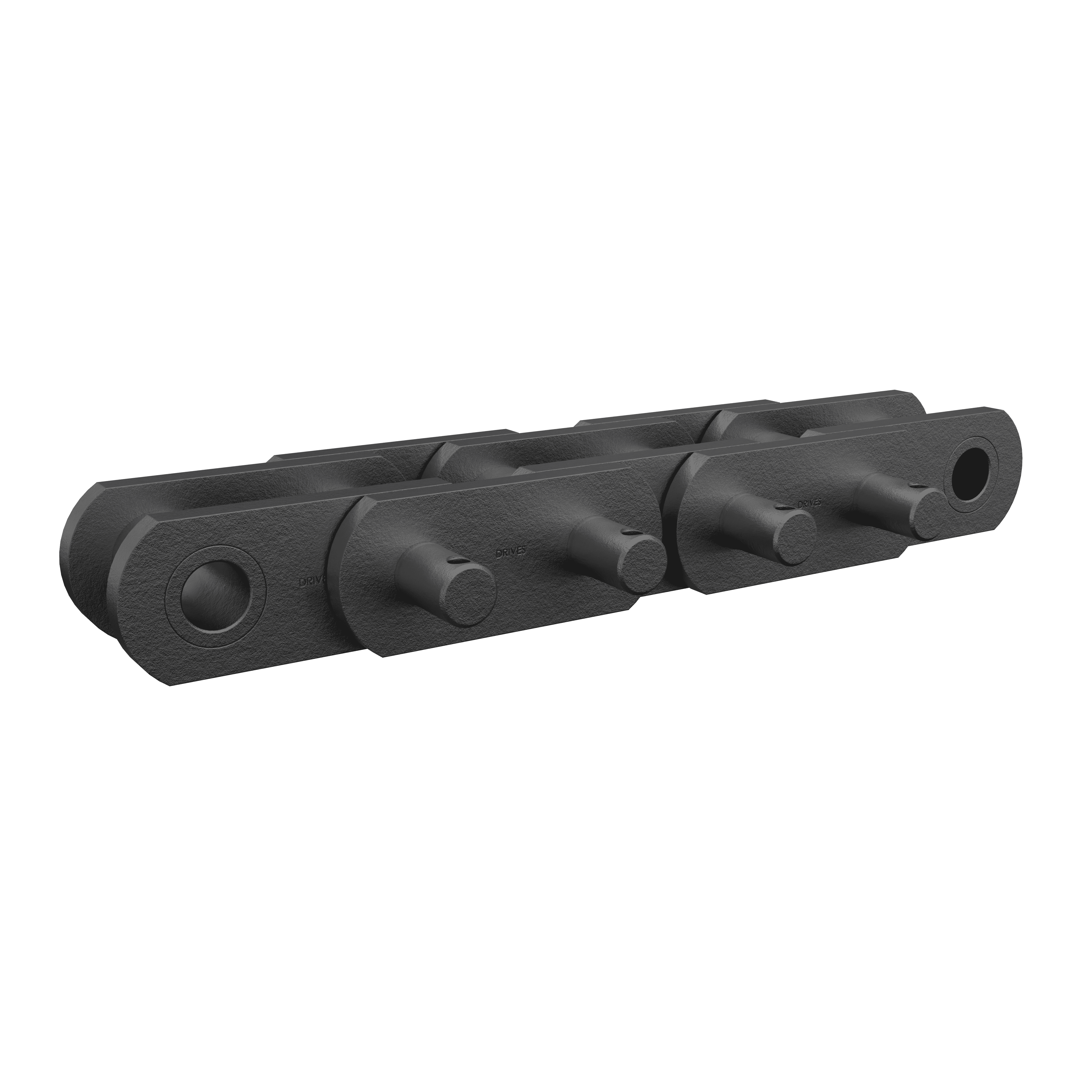

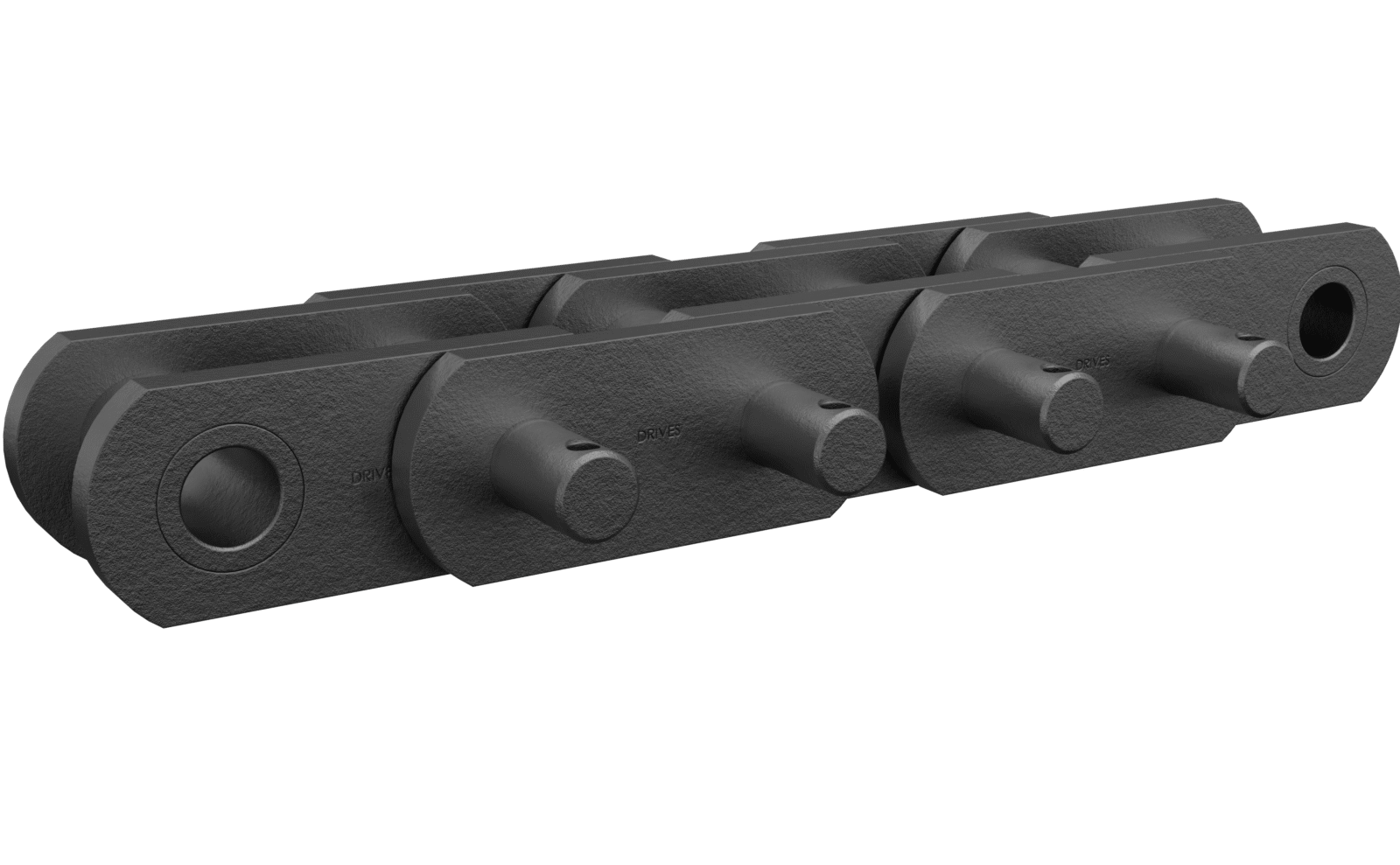

Feederbreaker Chain

Pin Link Plate: outer link plate

Bushing: cold-headed hollow cylinder press-fit into the link plate

Material: heat-treated carbon steel

Extended Cold Head Pin: pins extend beyond the length of the strand with a cross-drilled hole for inserting a t-pin

Roller Link Plate: inner link plate

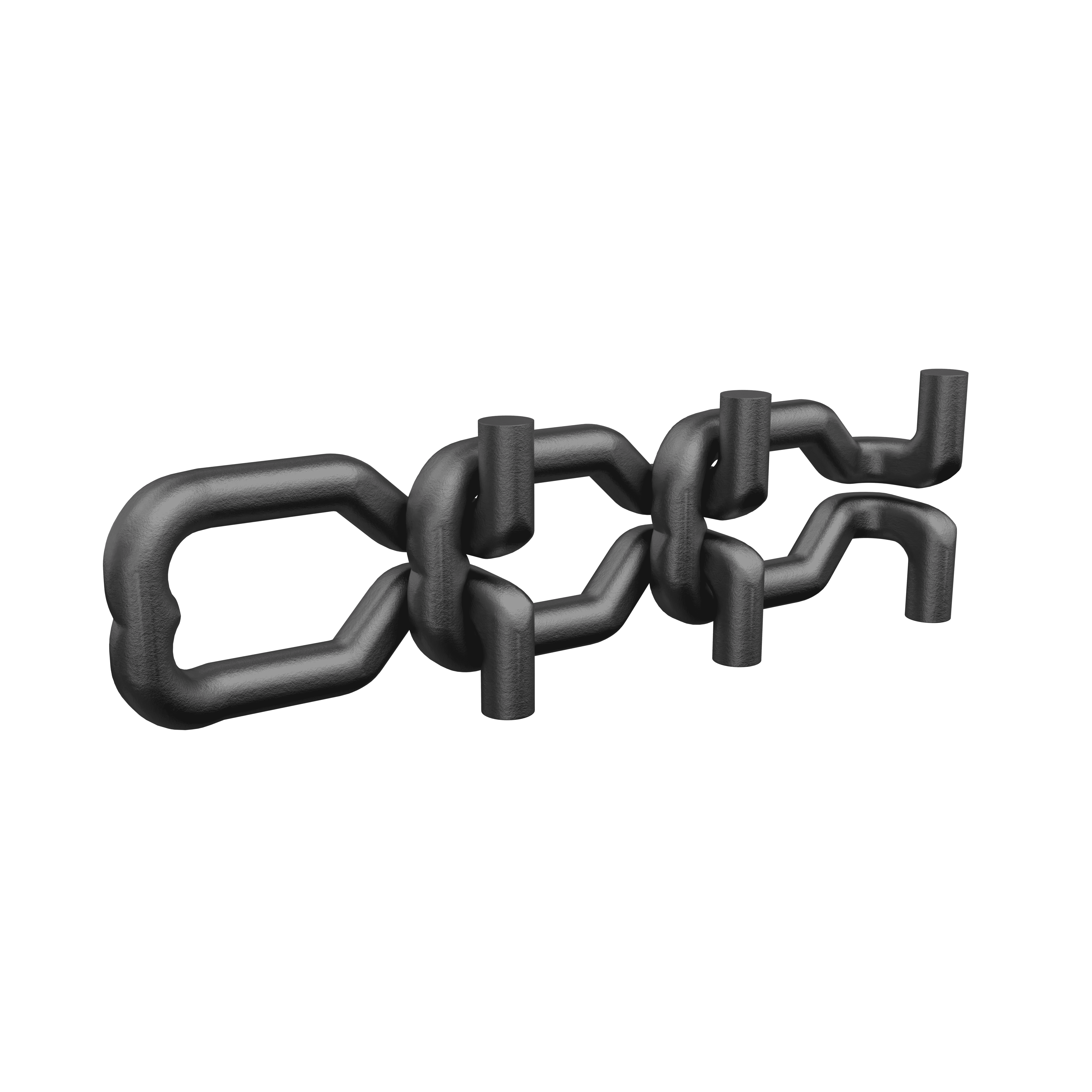

T-Rod Chain

Link: simple design lacks pins, rollers and bushings

Material: through-hardened, heat-treated carbon steel

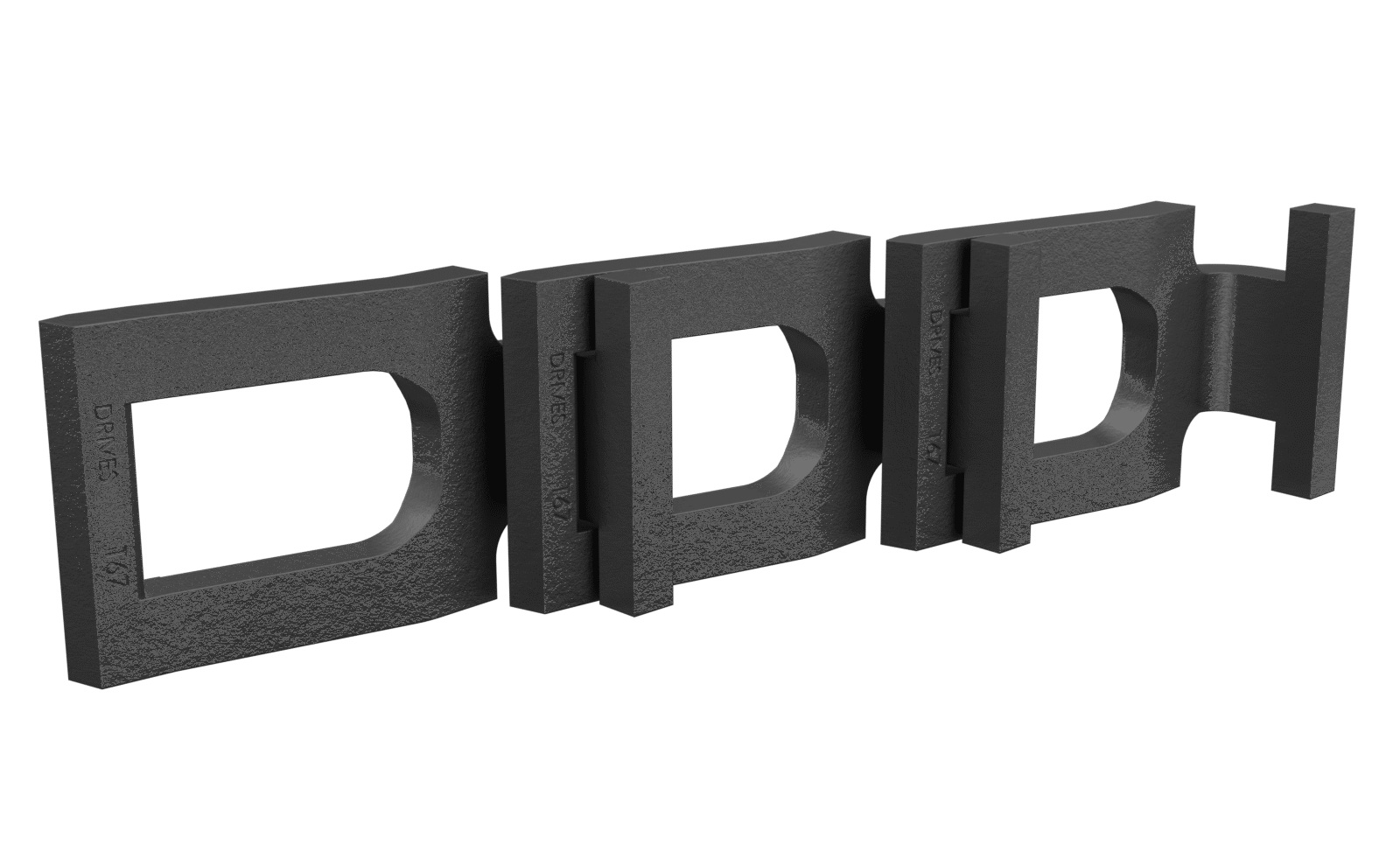

T-Bar Chain

Link: simple design lacks pins, rollers and bushings; can be replaced by hand

Material: through-hardened, heat-treated carbon steel

C Series Conveyor Chain

Pin Link Plate: outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: inner link plate

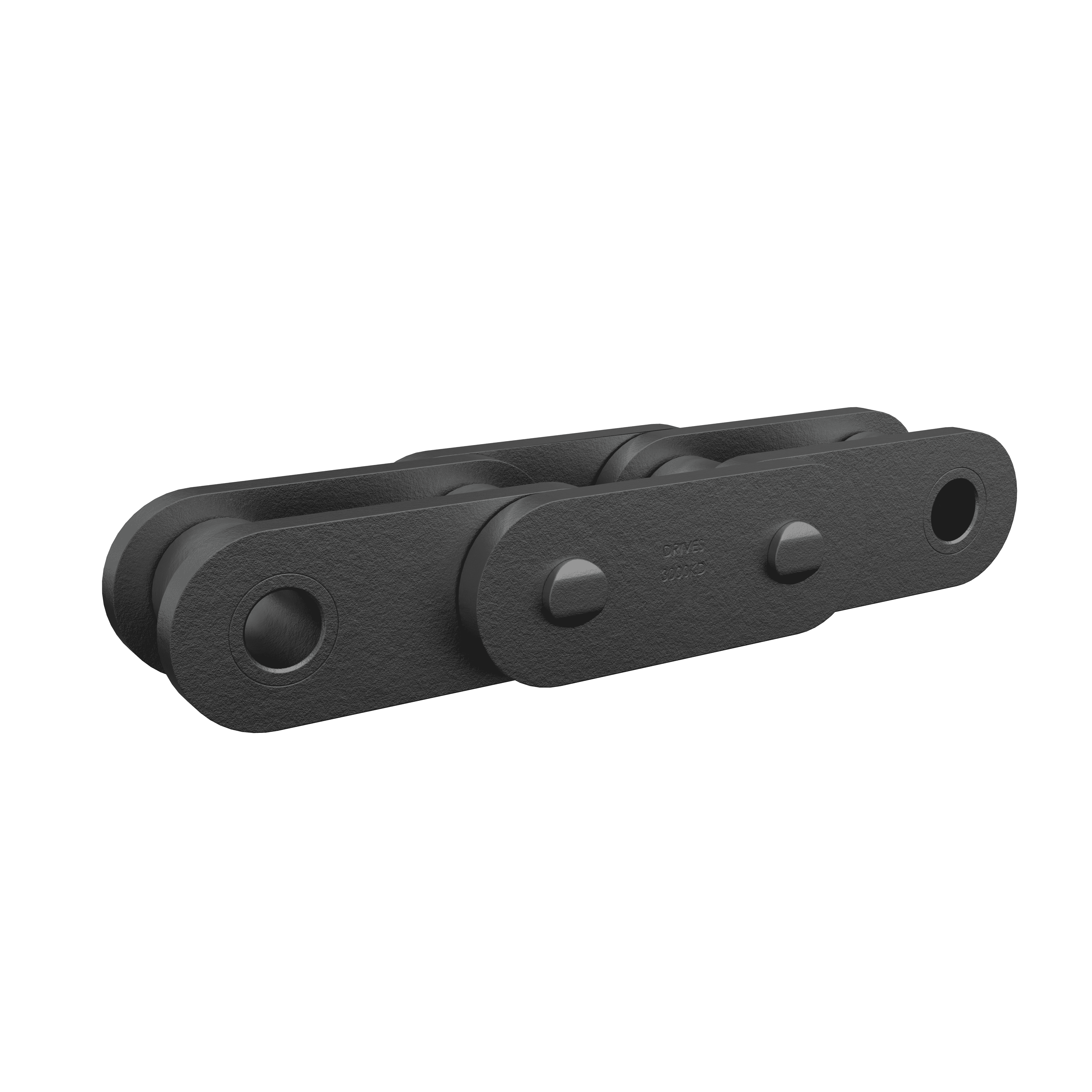

3000KD Chain

Pin Link Plate: heavy outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: heavy inner link plate

81XHKD Chain

Pin Link Plate: heavy outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder through-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: heavy inner link plate

81XKD Chain

Pin Link Plate: outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: inner link plate

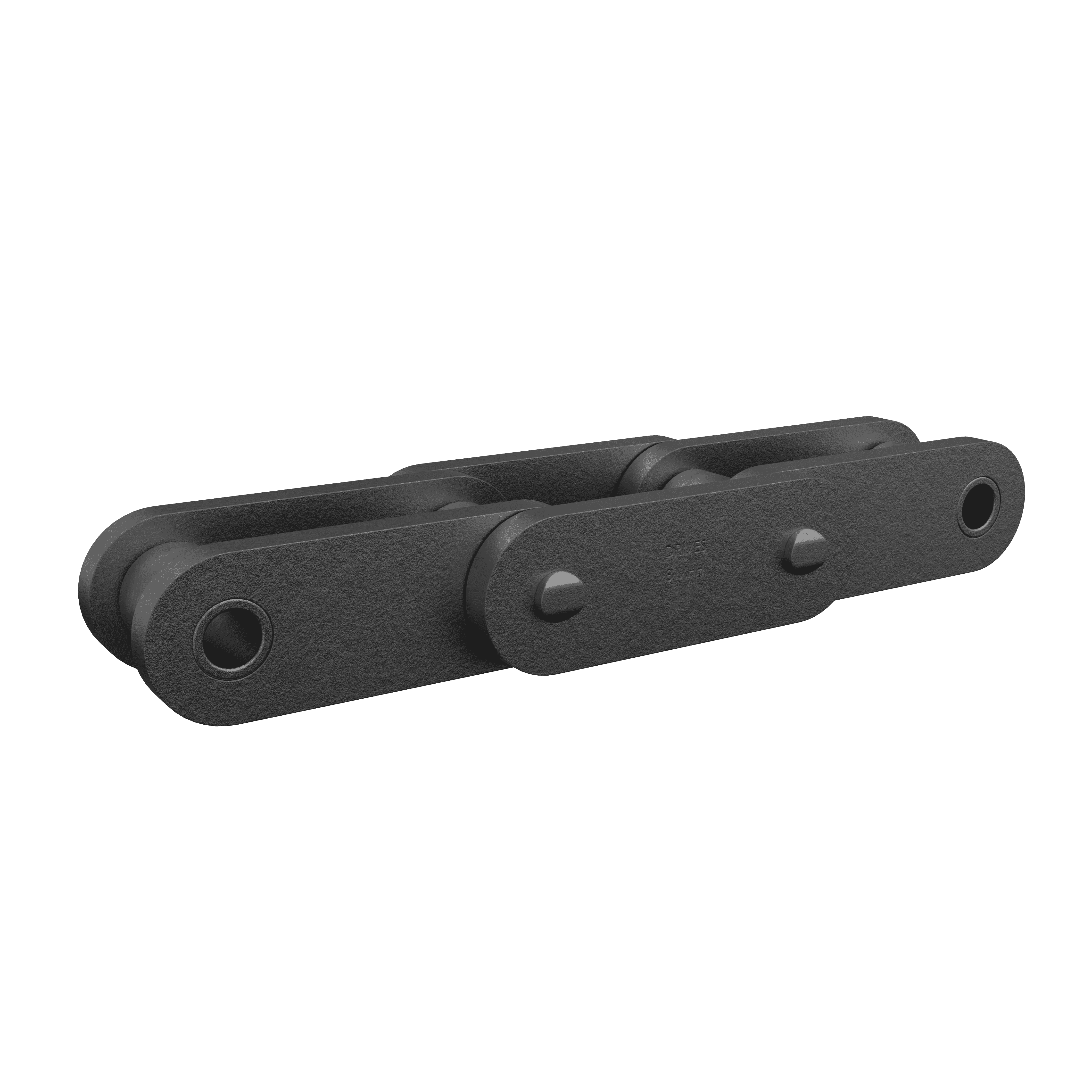

81XHH Chain

Pin Link Plate: outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder through-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: heavy inner link plate

81XH Chain

Pin Link Plate: outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder through-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: heavy inner link plate

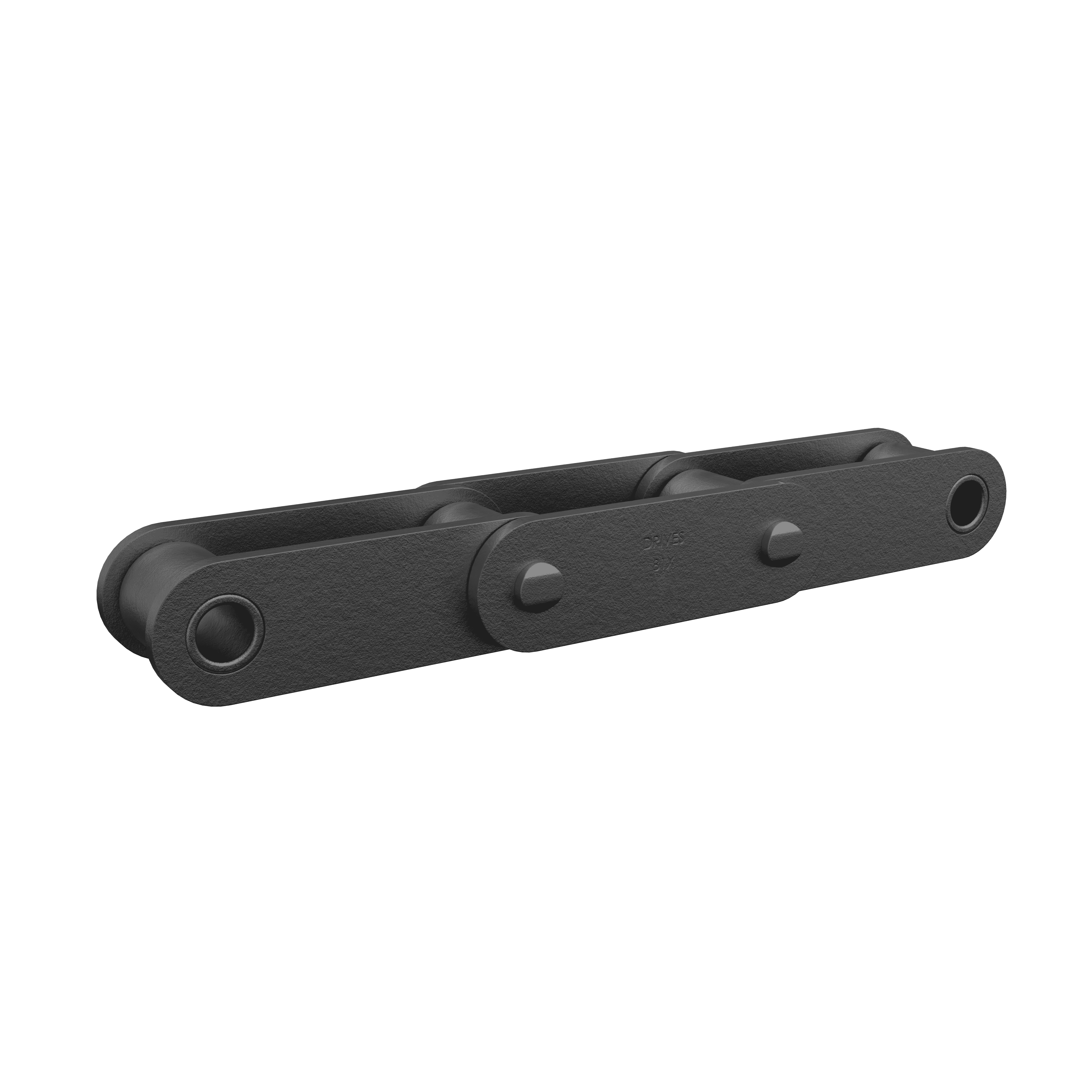

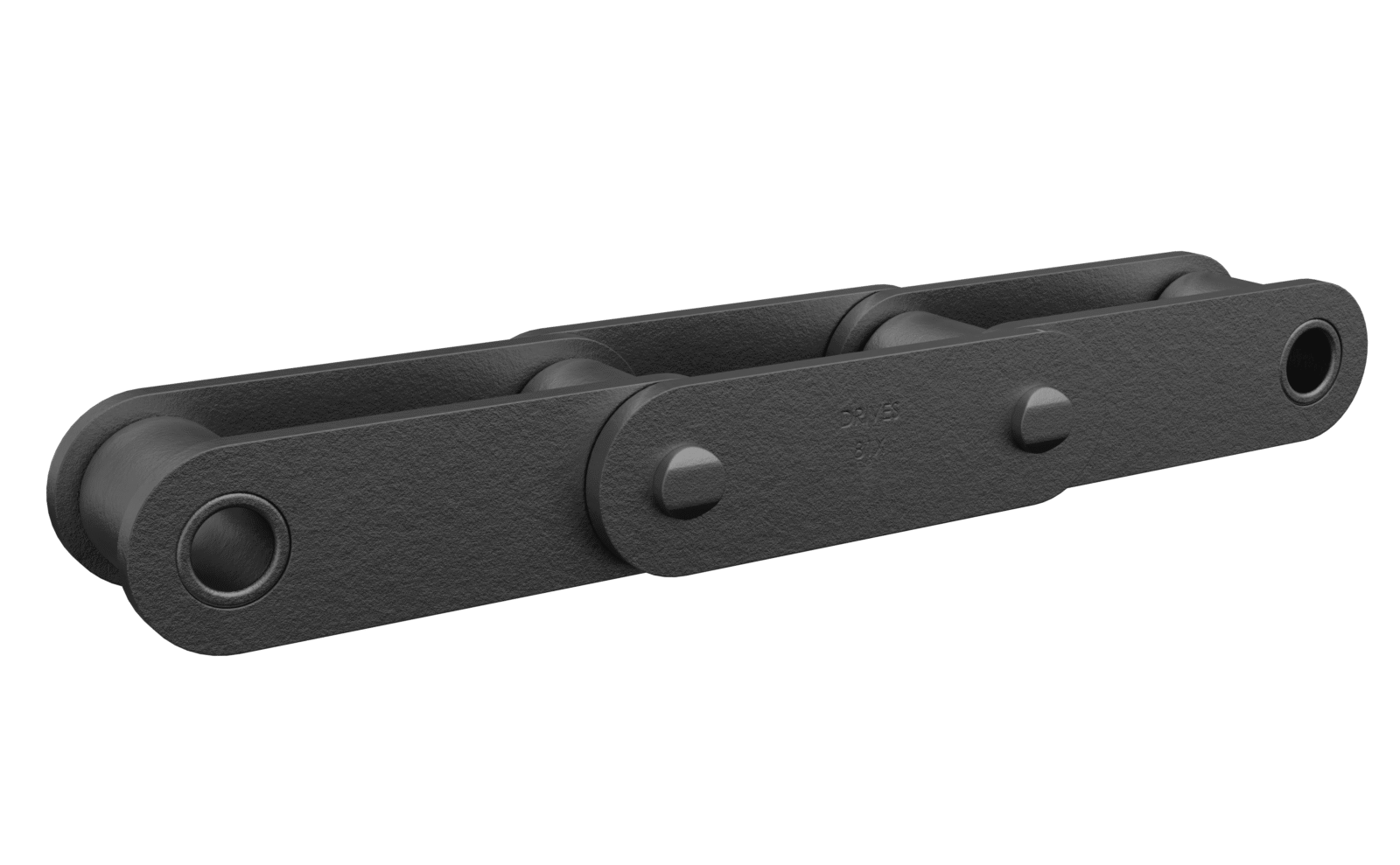

81X Chain

Pin Link Plate: outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: inner link plate

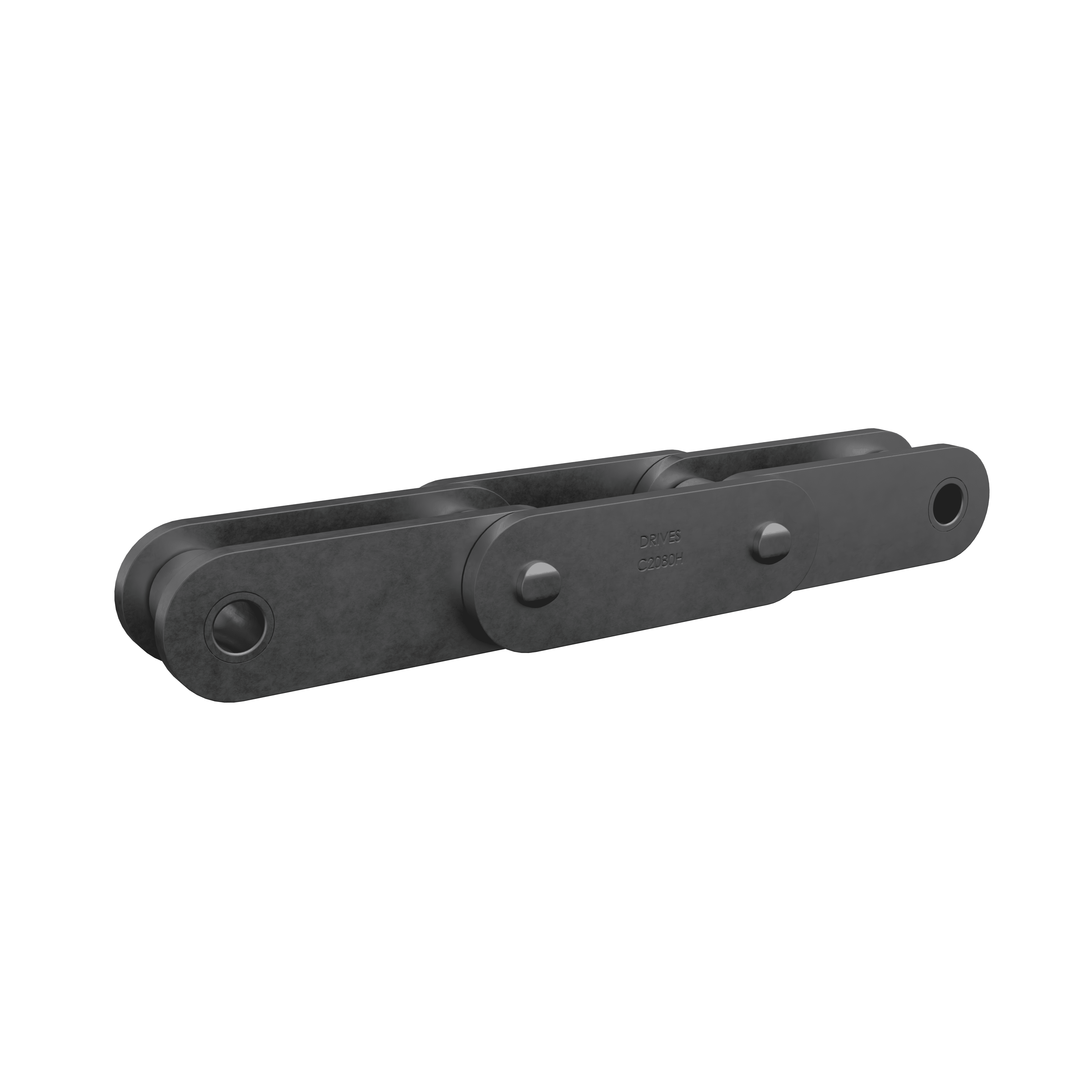

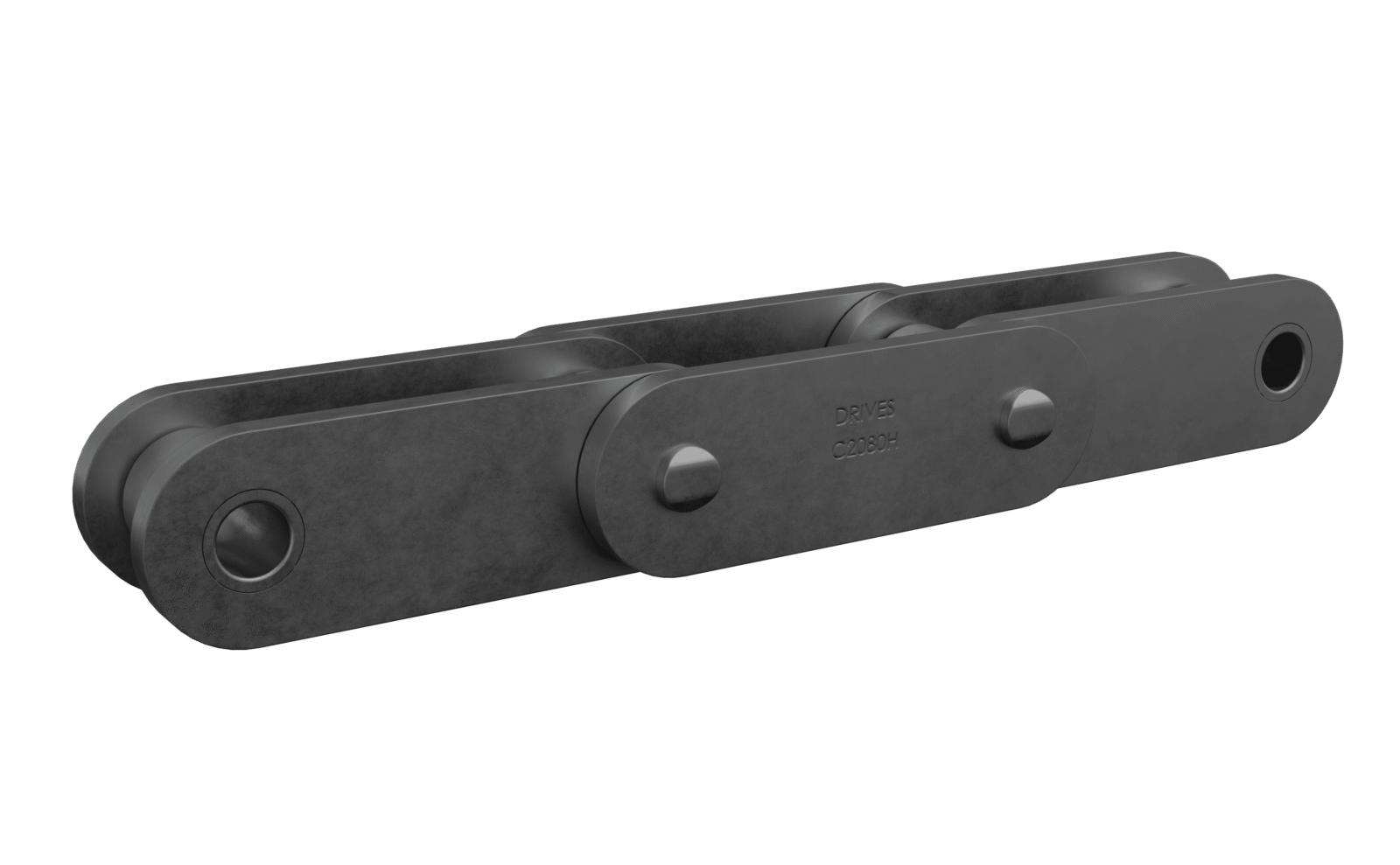

Silver Shield CR® Double-Pitch Conveyor Chain

Pin Link Plate: double-pitch outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Silver Shield CR® Coating: heat-treated carbon steel as the base material with a Silver Shield CR coating

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: double-pitch inner link plate

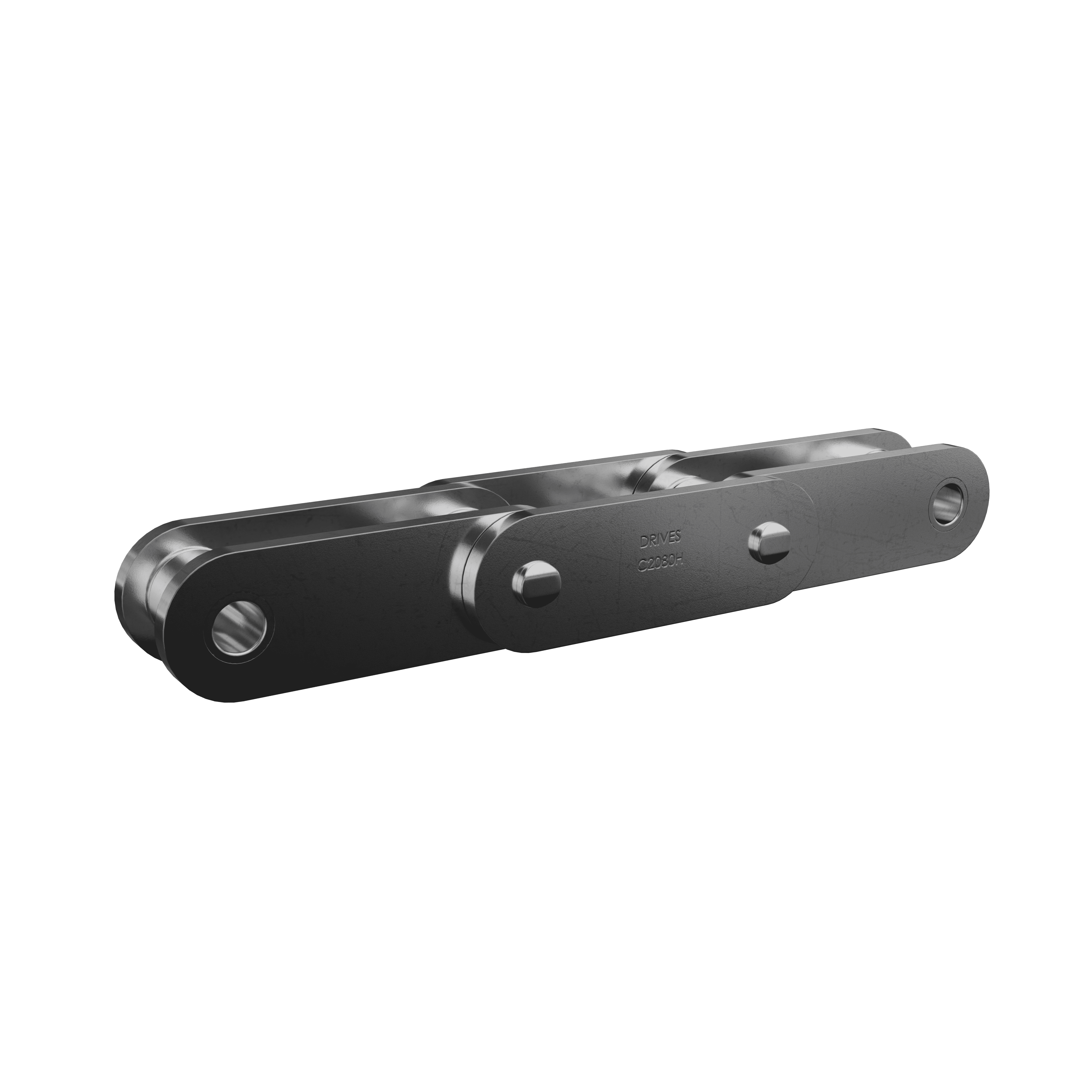

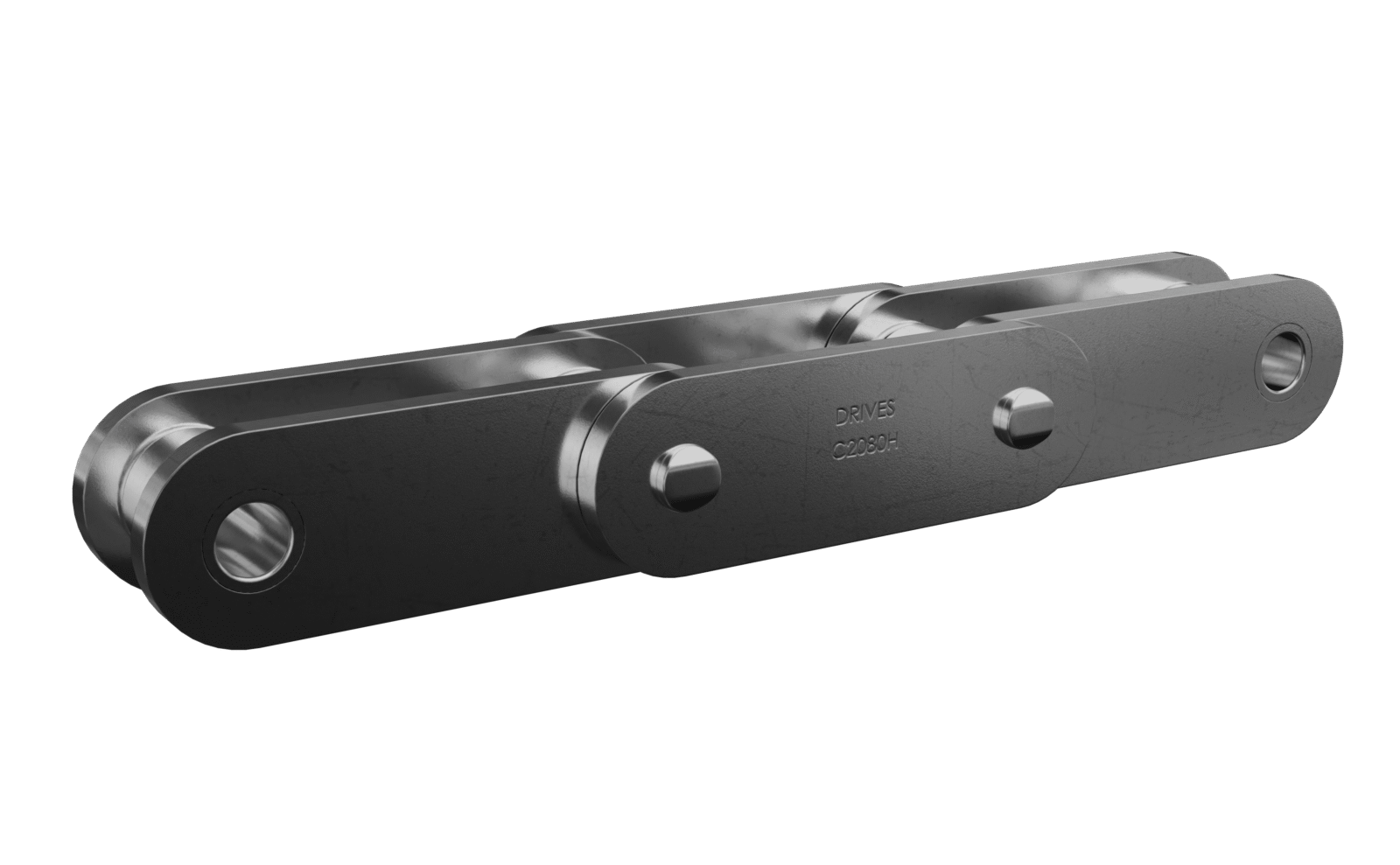

Stainless Steel Double-Pitch Conveyor Chain

Pin Link Plate: double-pitch outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Stainless Steel: constructed with stainless steel components (can be AS, PS or NS series)

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: double-pitch inner link plate

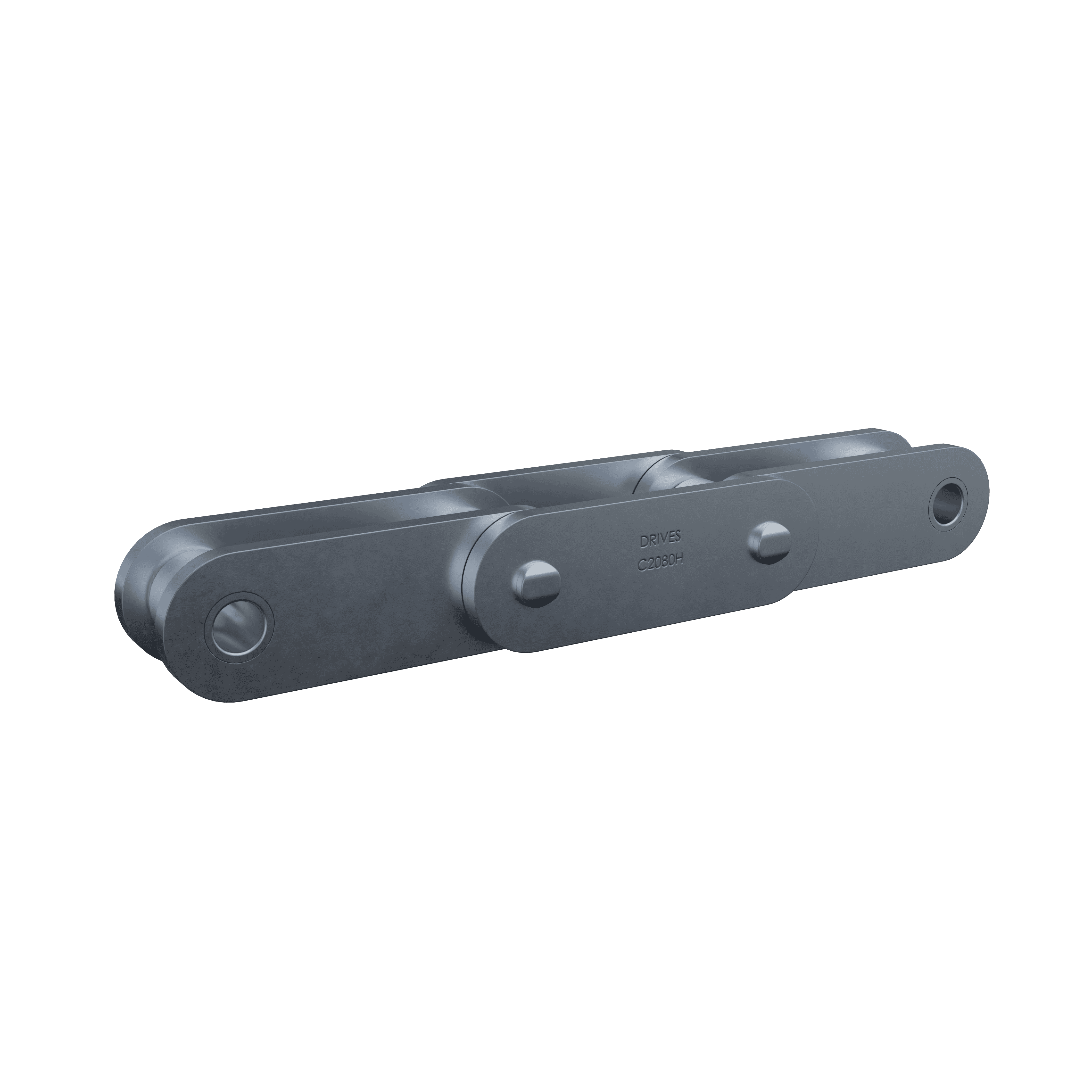

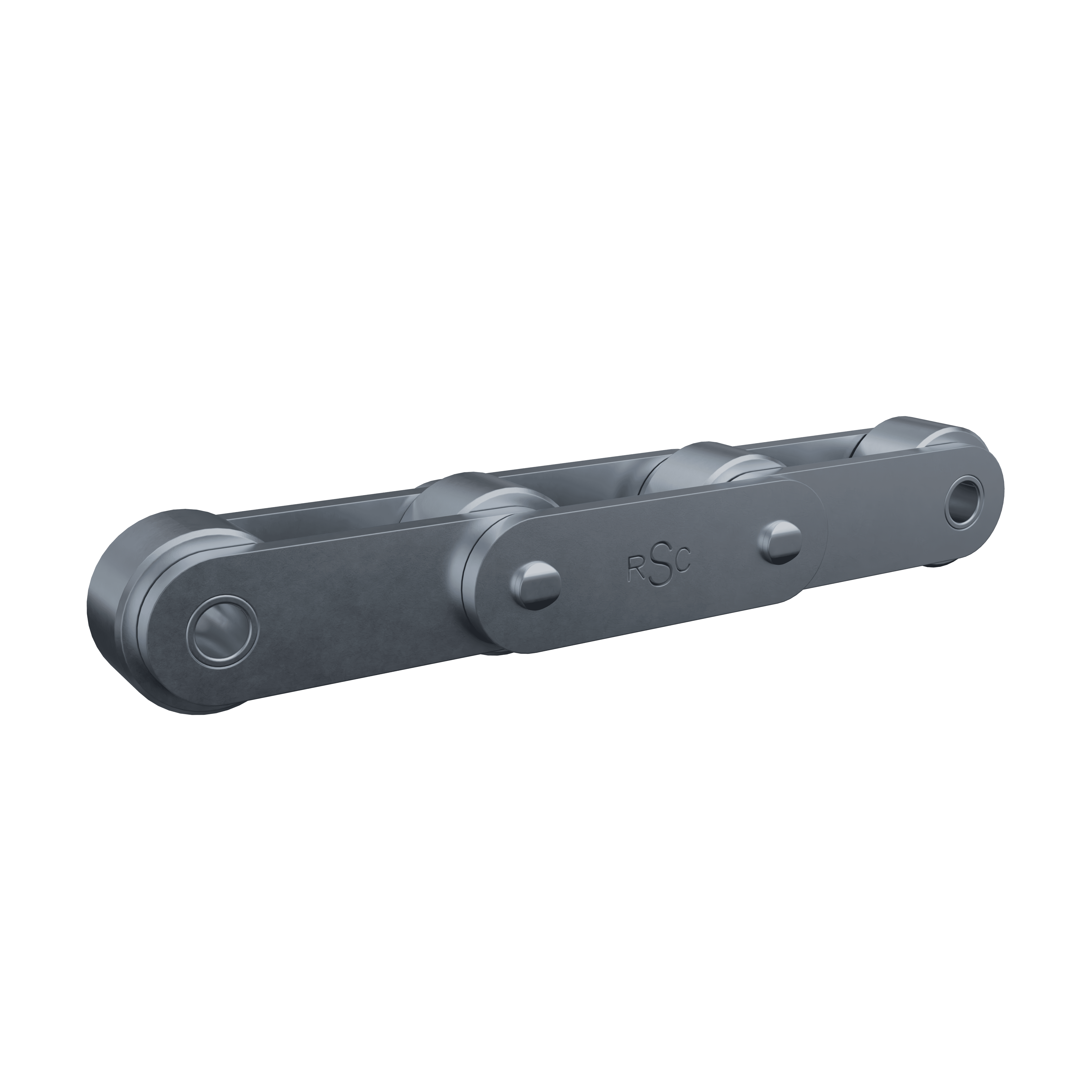

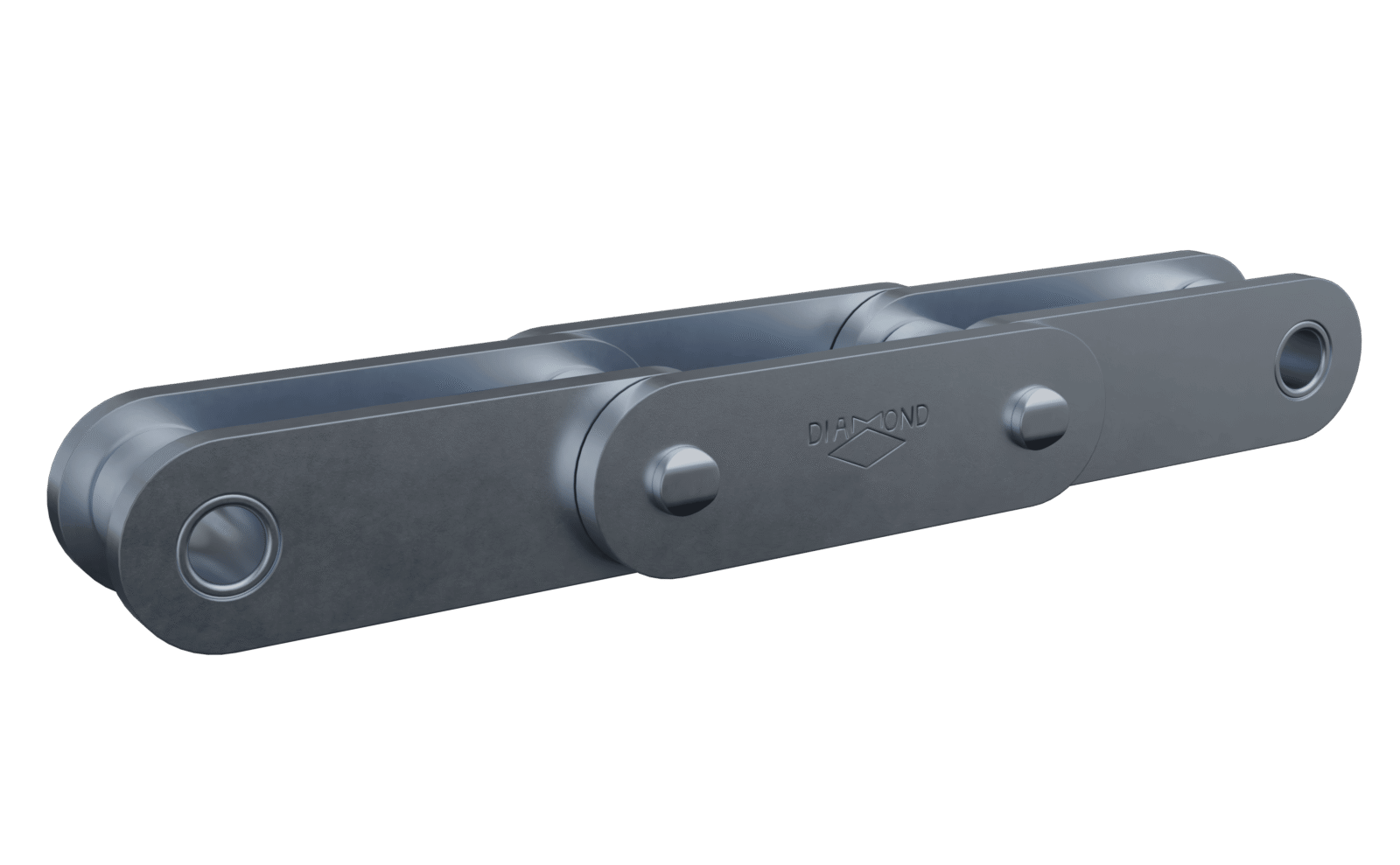

Nickel Plated Double-Pitch Conveyor Chain

Pin Link Plate: double-pitch outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Nickel Plated Coating: heat-treated carbon steel as the base material with a nickel-plated coating

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: double-pitch inner link plate

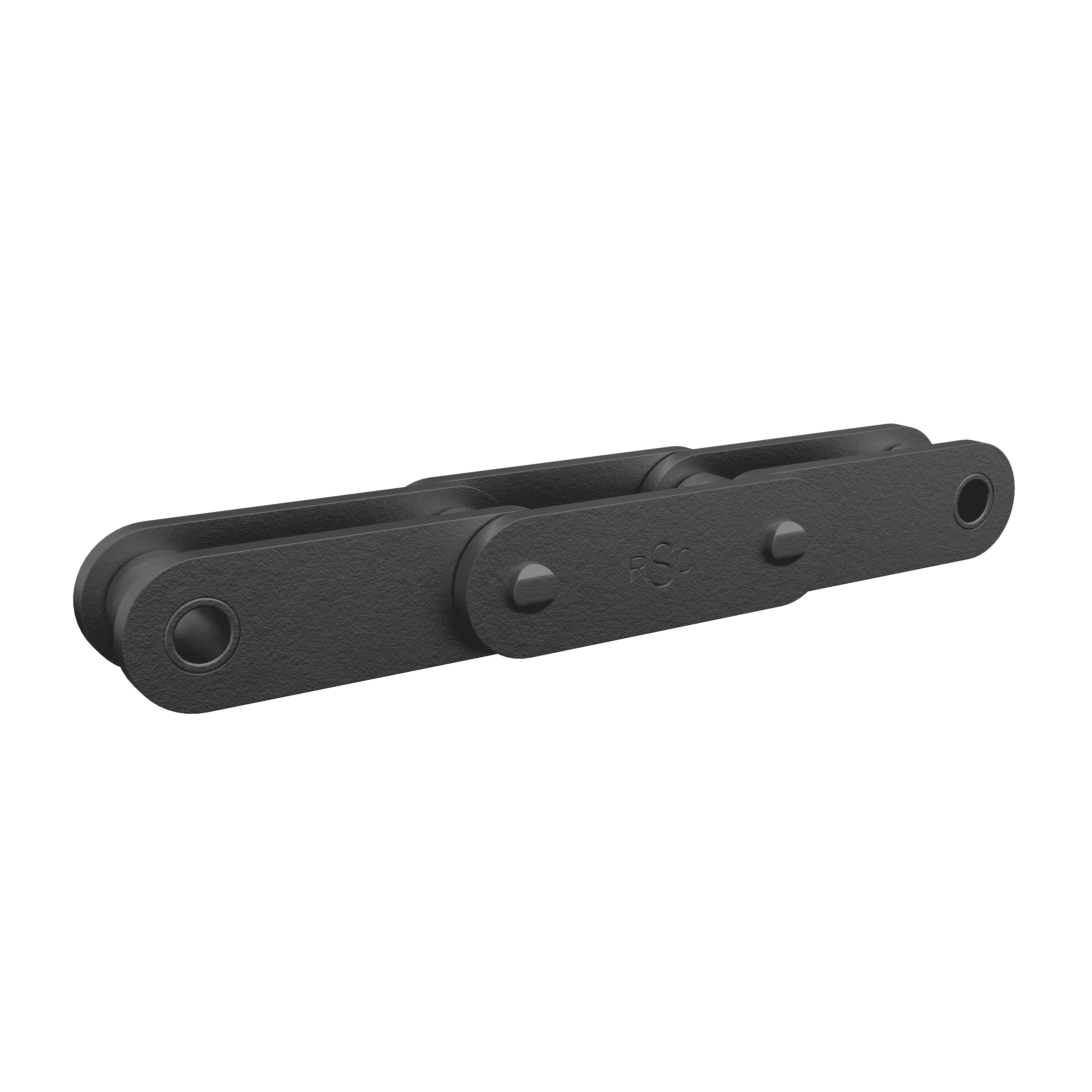

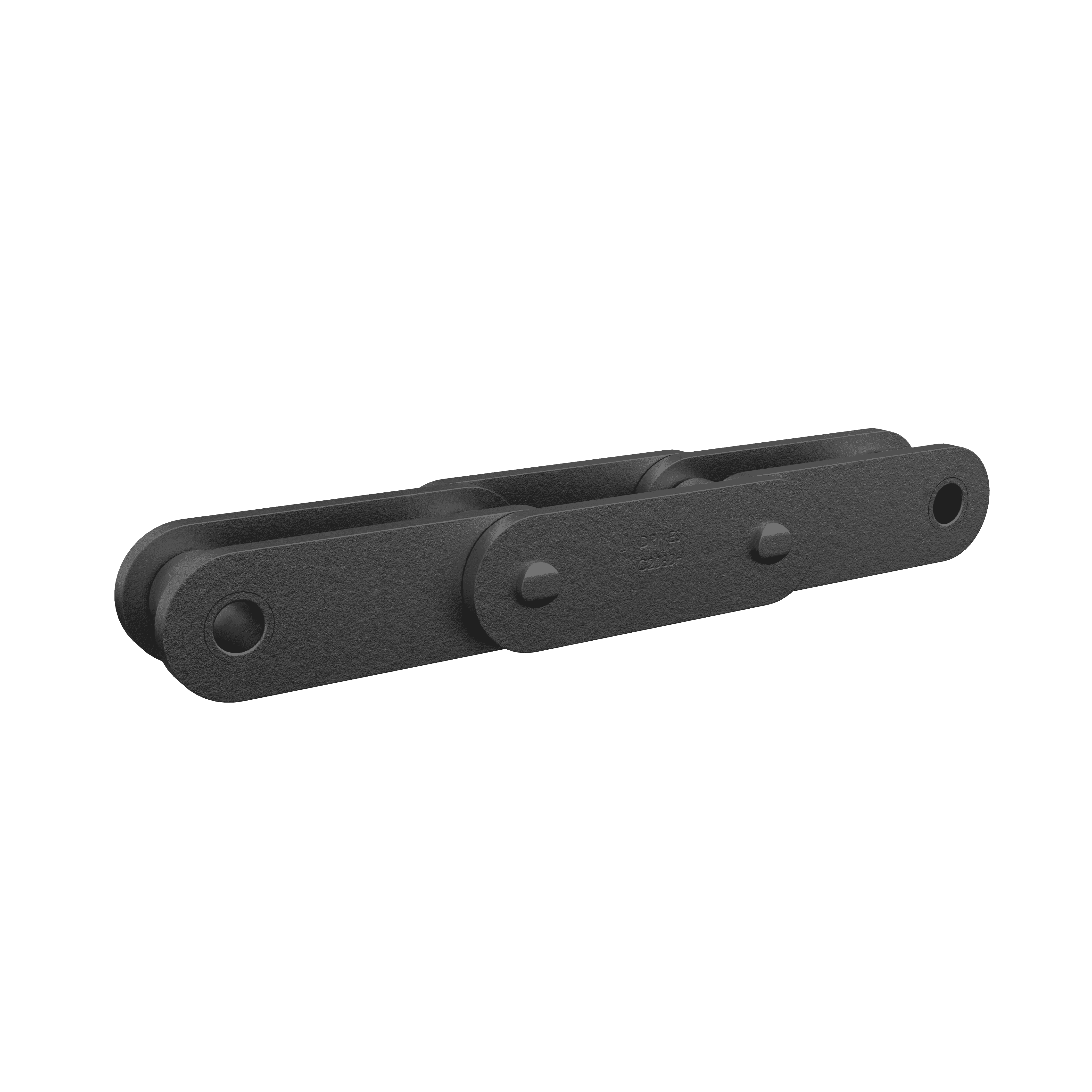

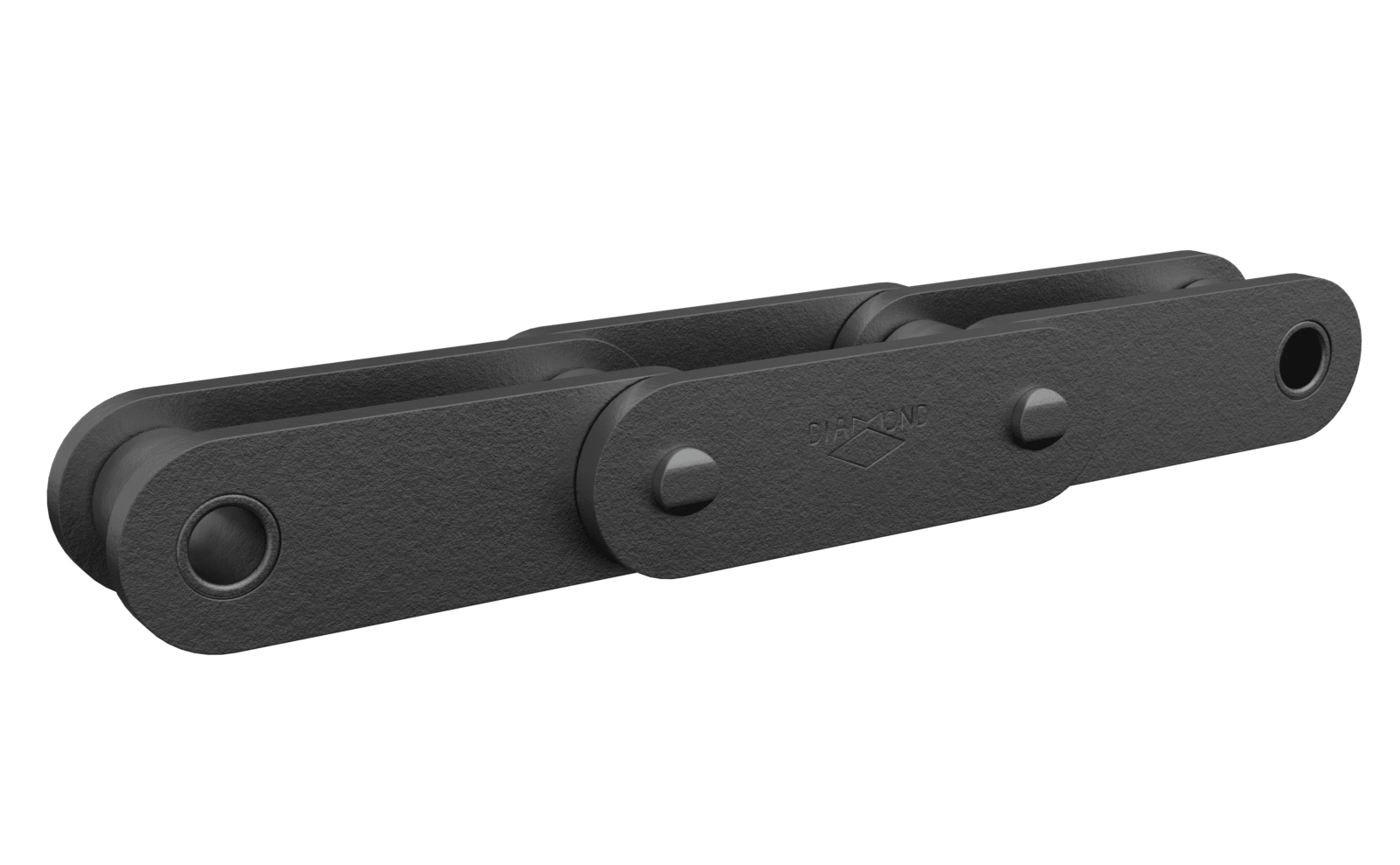

Double-Pitch Conveyor Chain

Pin Link Plate: double-pitch outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: double-pitch inner link plate

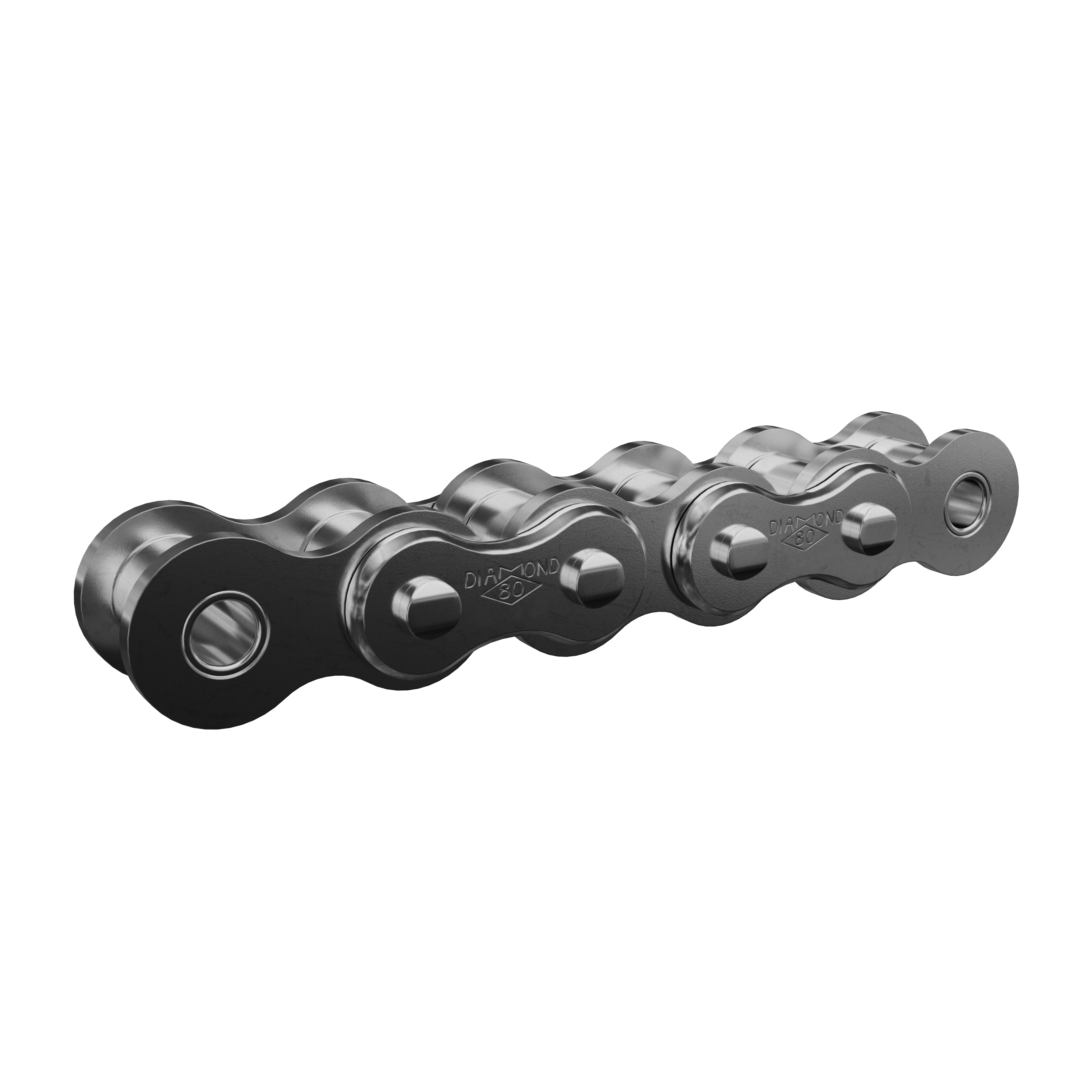

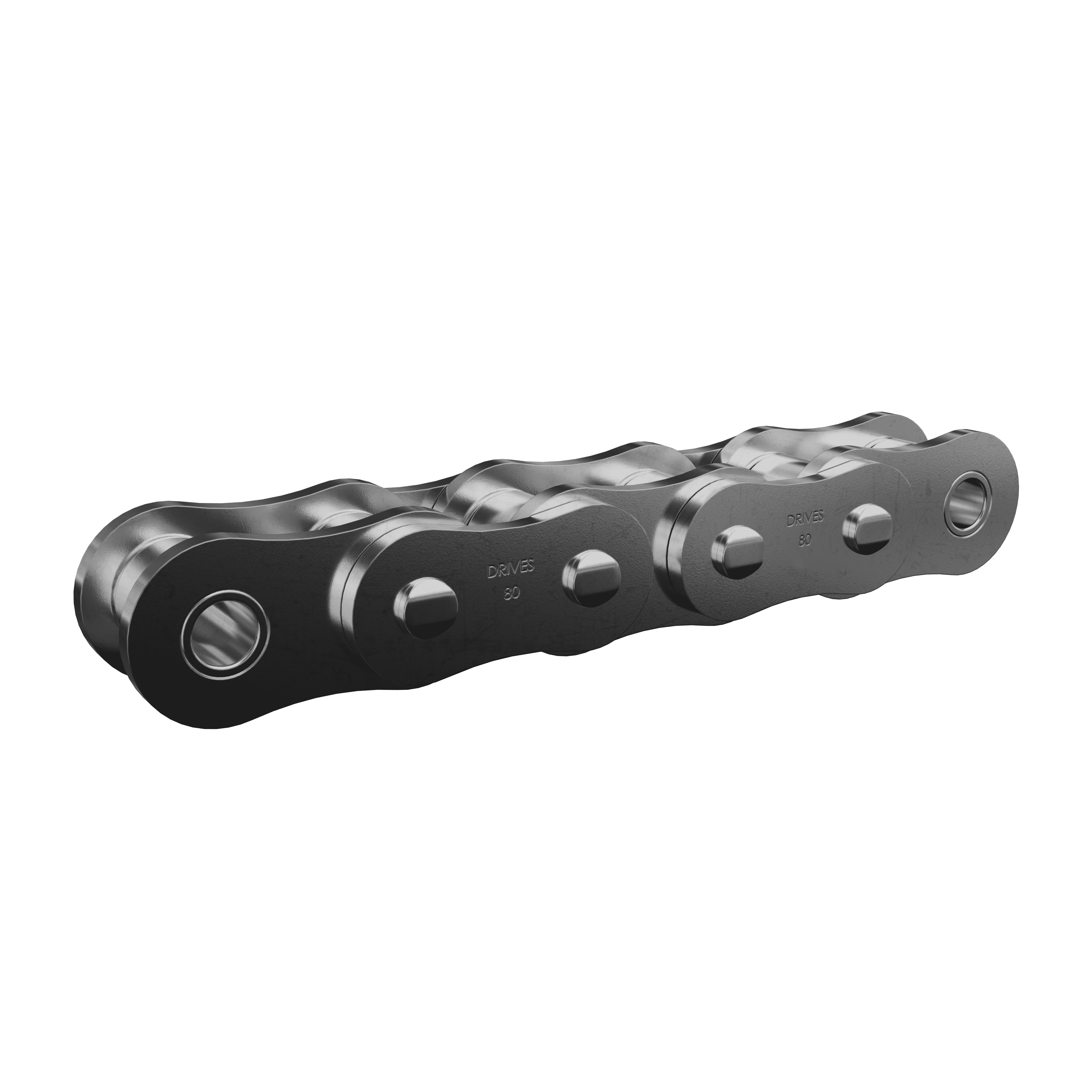

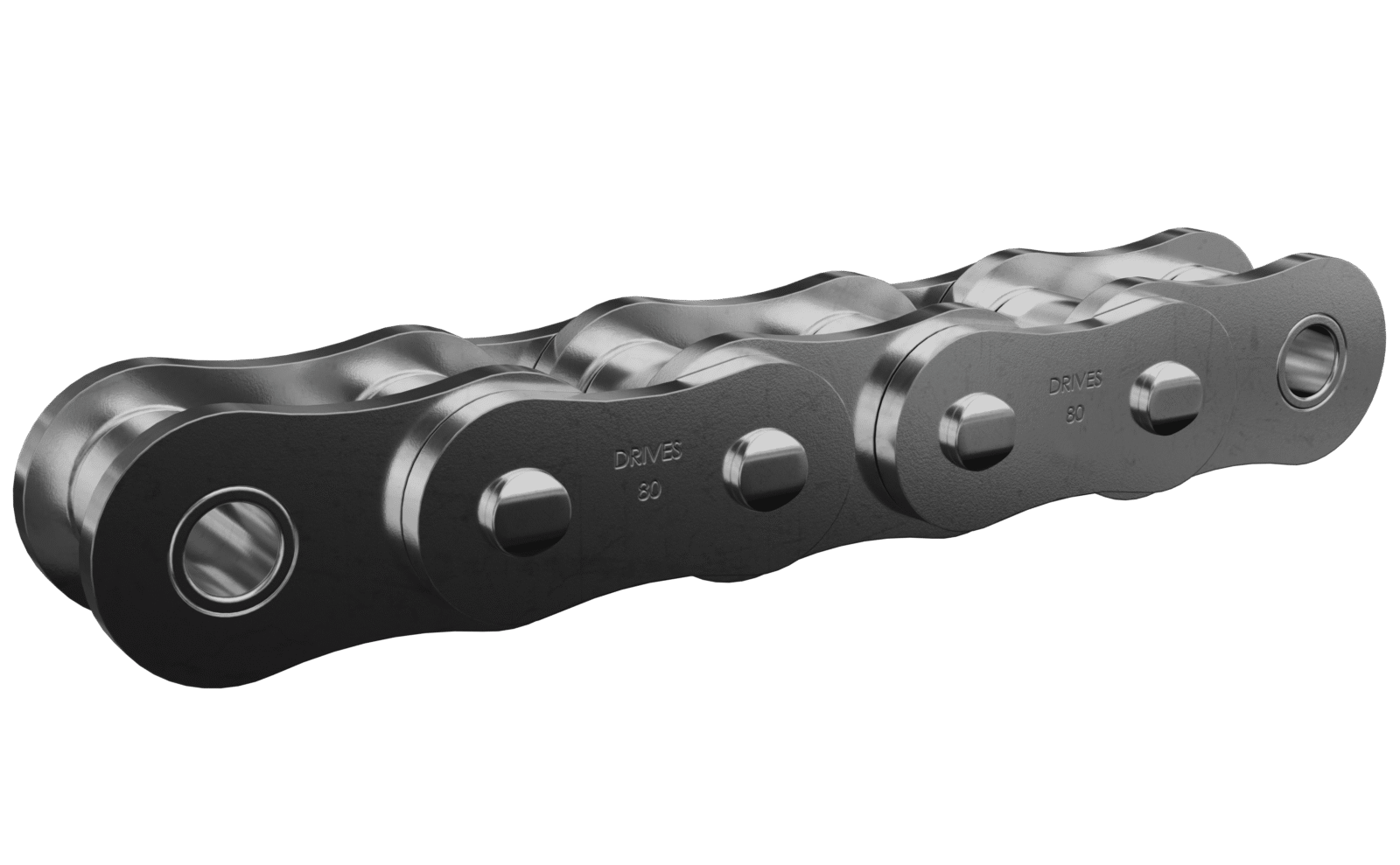

Stainless Steel Chain

Pin Link Plate: wide-waist outer link plate

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Stainless Steel: constructed with stainless steel components (can be AS, PS or NS series)

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: wide-waist inner link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

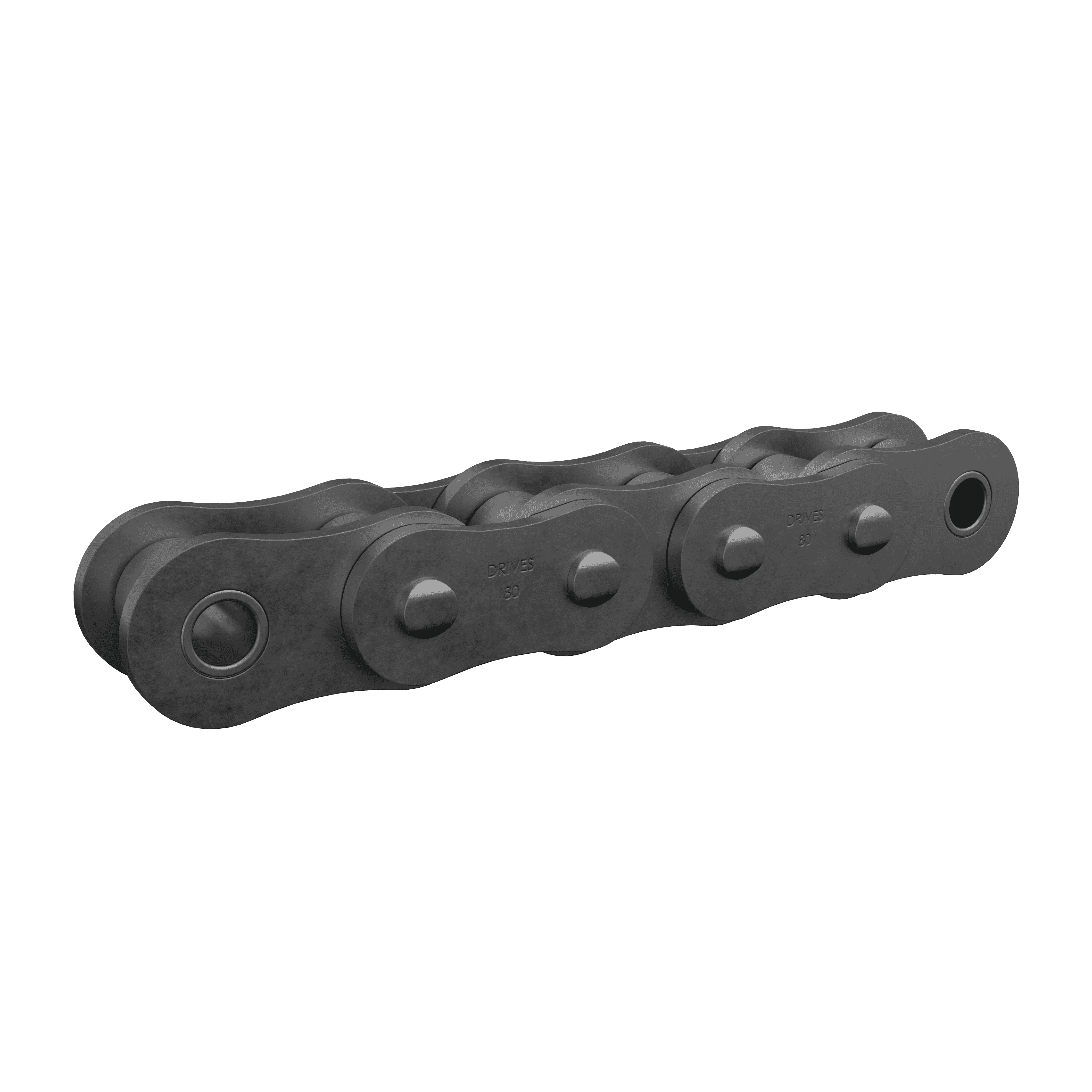

Silver Shield CR® Chain

Pin Link Plate: wide-waist outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Silver Shield CR® Coating: heat-treated carbon steel as the base material with a Silver Shield CR coating

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: wide-waist inner link plate

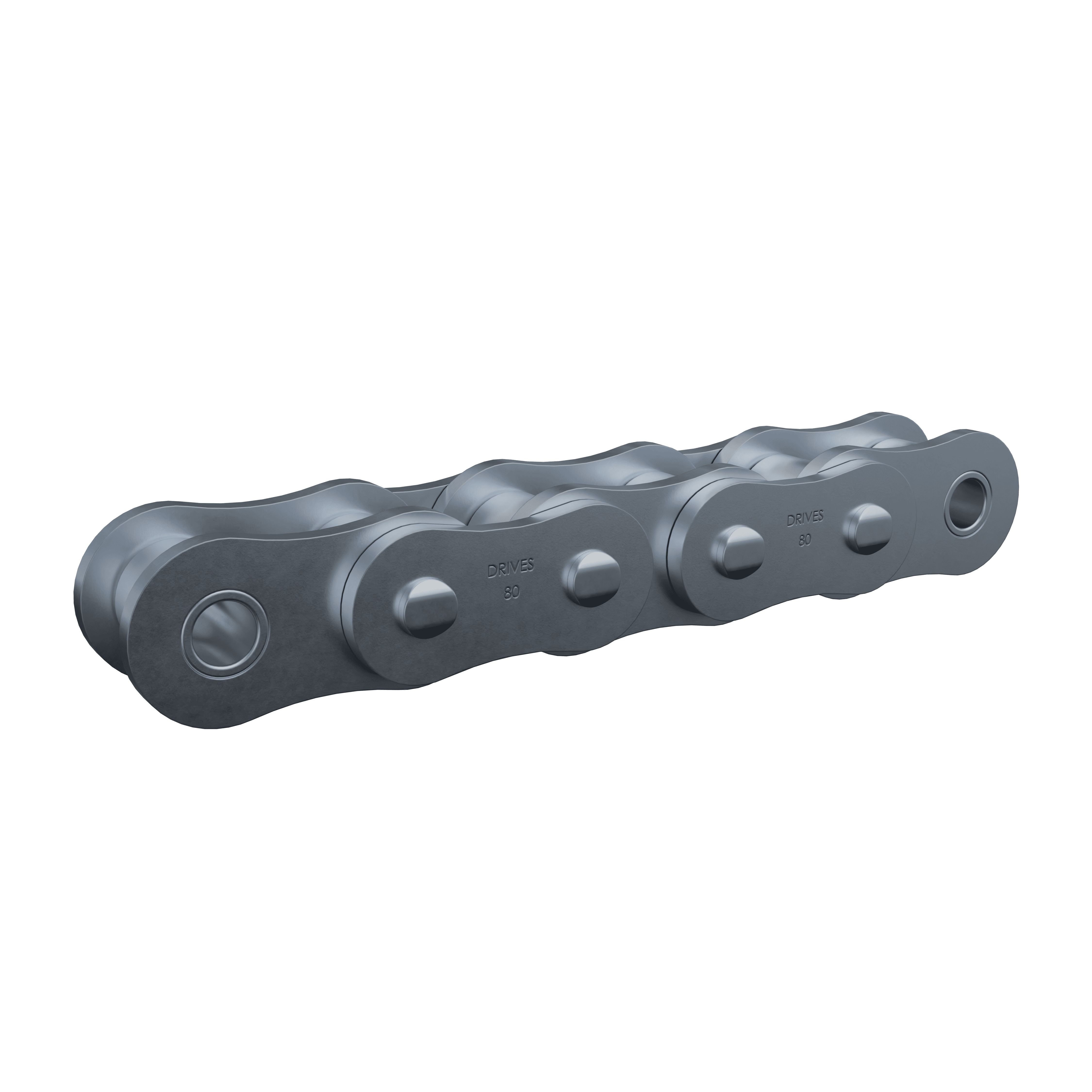

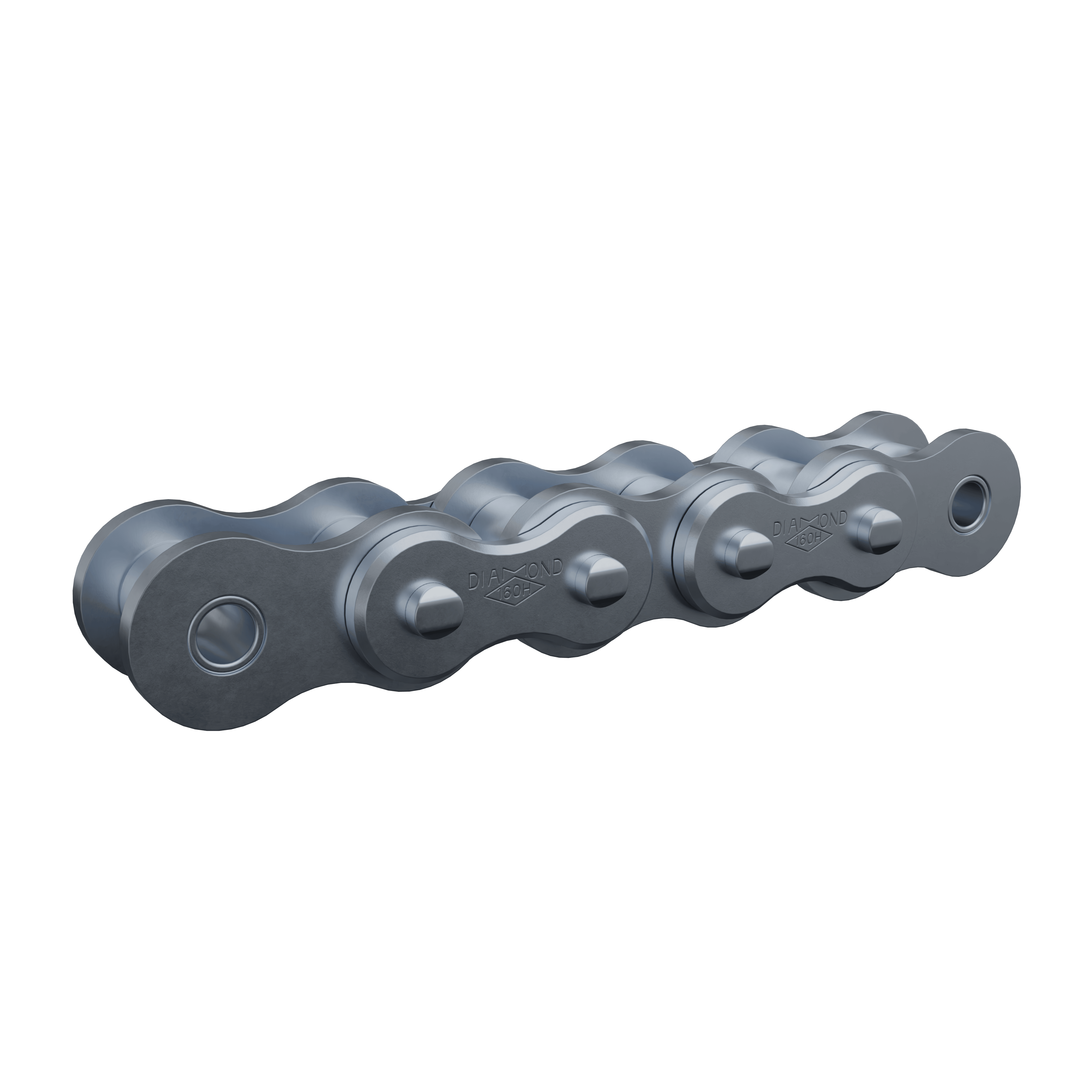

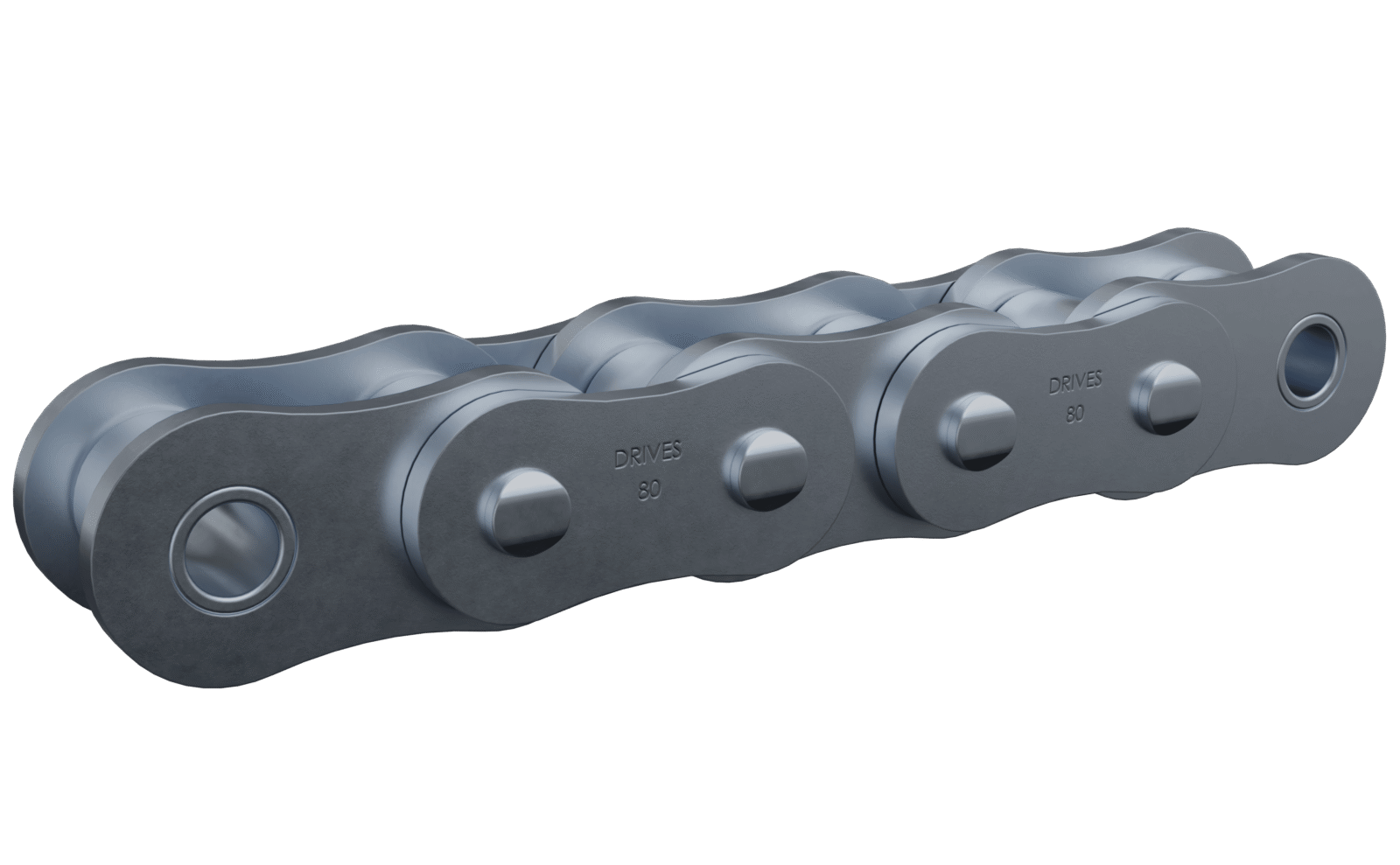

Nickel Plated Chain

Pin Link Plate: wide-waist outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Nickel Plated Coating: heat-treated carbon steel as the base material with a nickel-plated coating

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: wide-waist inner link plate

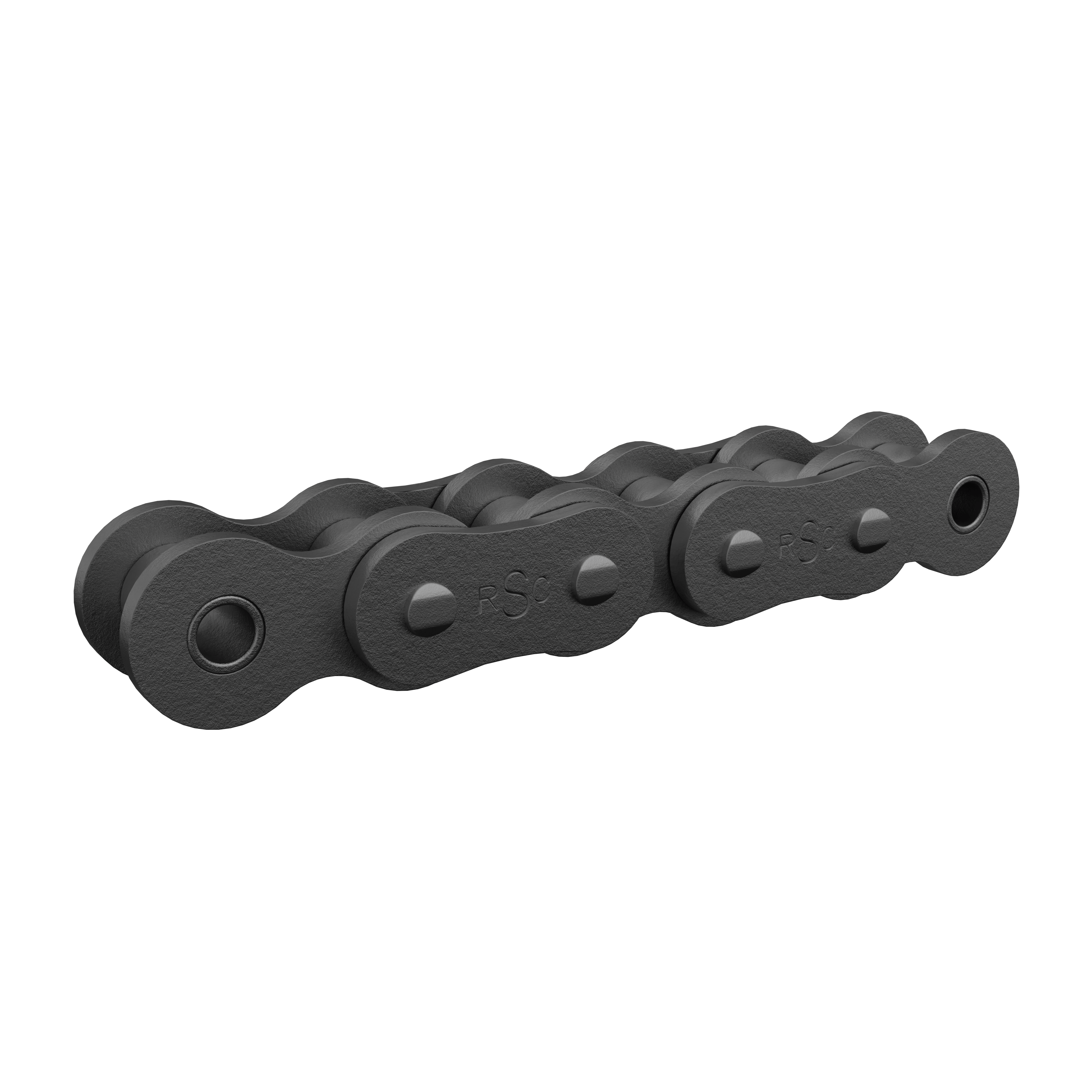

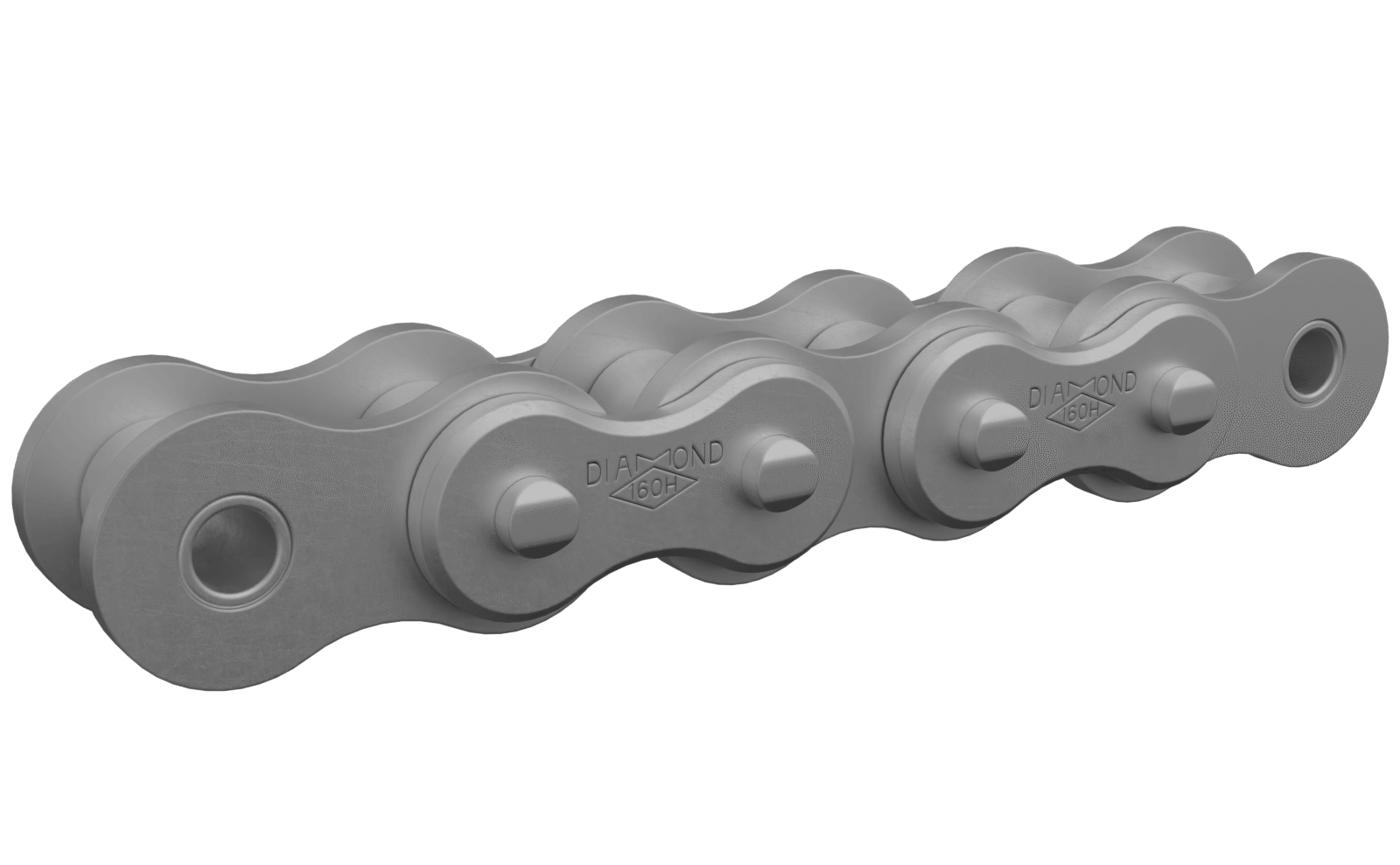

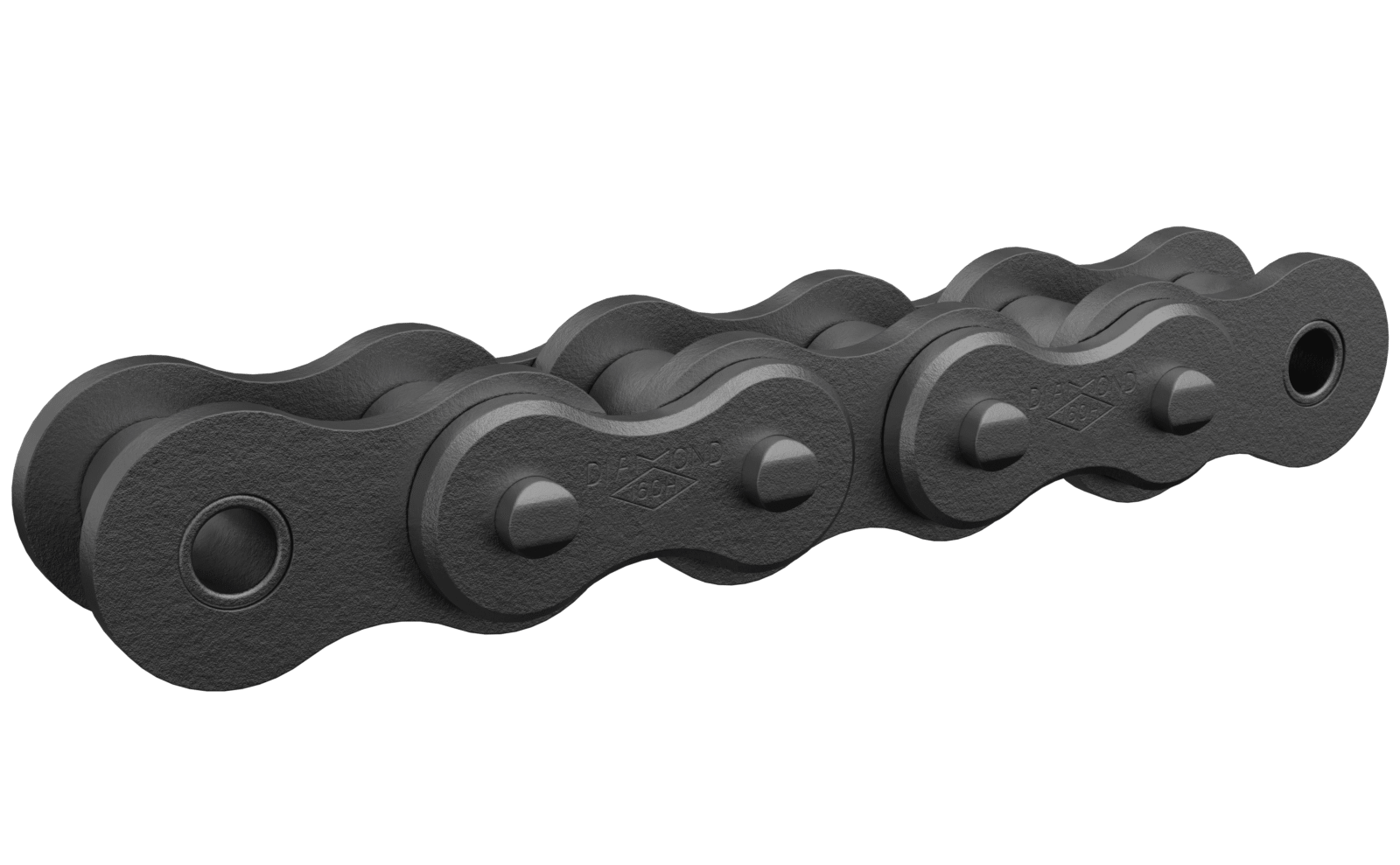

Heavy Series Chain

Pin Link Plate: heavy wide-waist outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder (can be case-hardened or through-hardened) and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: heavy wide-waist inner link plate

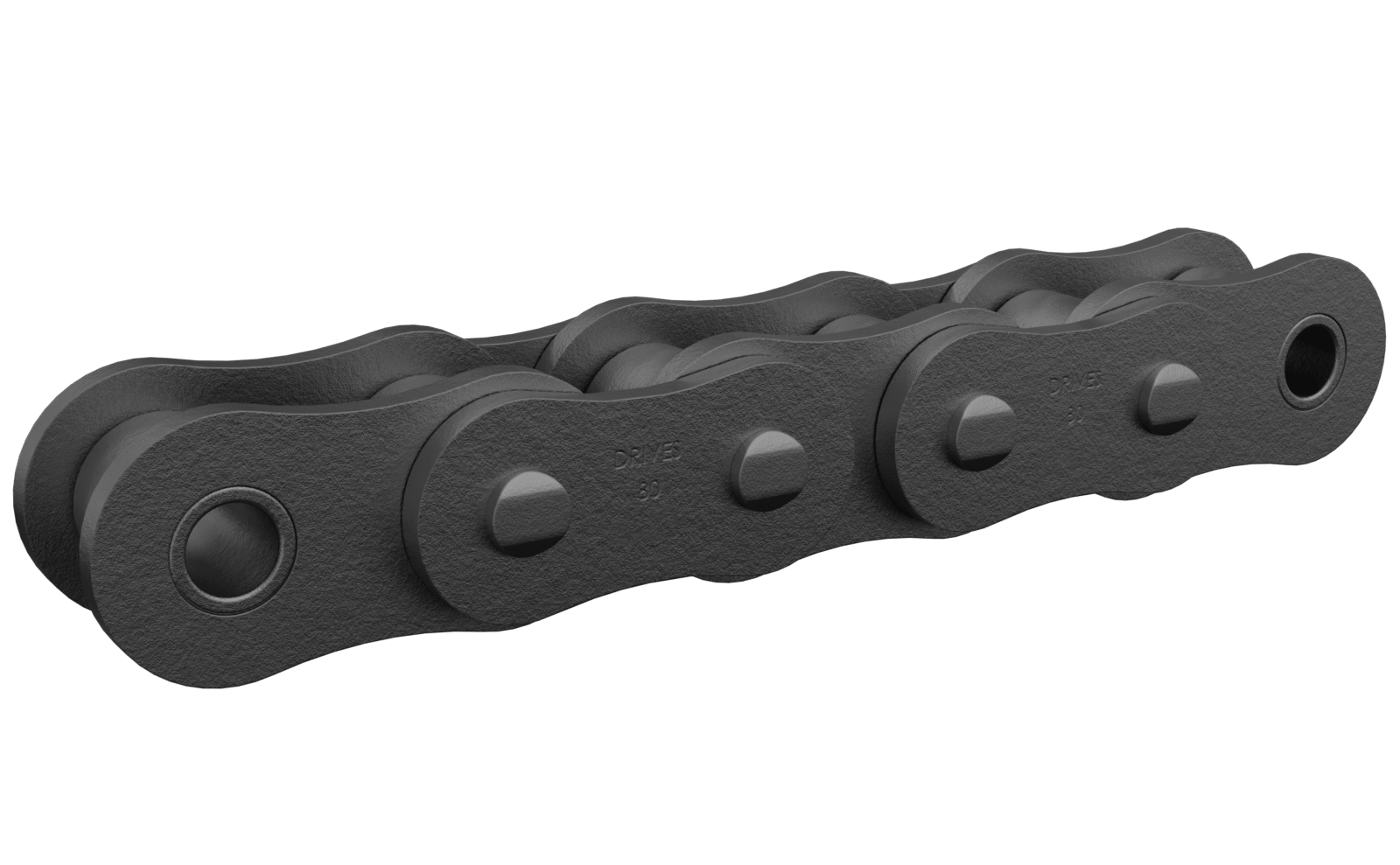

ANSI Roller Chain

Pin Link Plate: wide-waist outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: wide-waist inner link plate

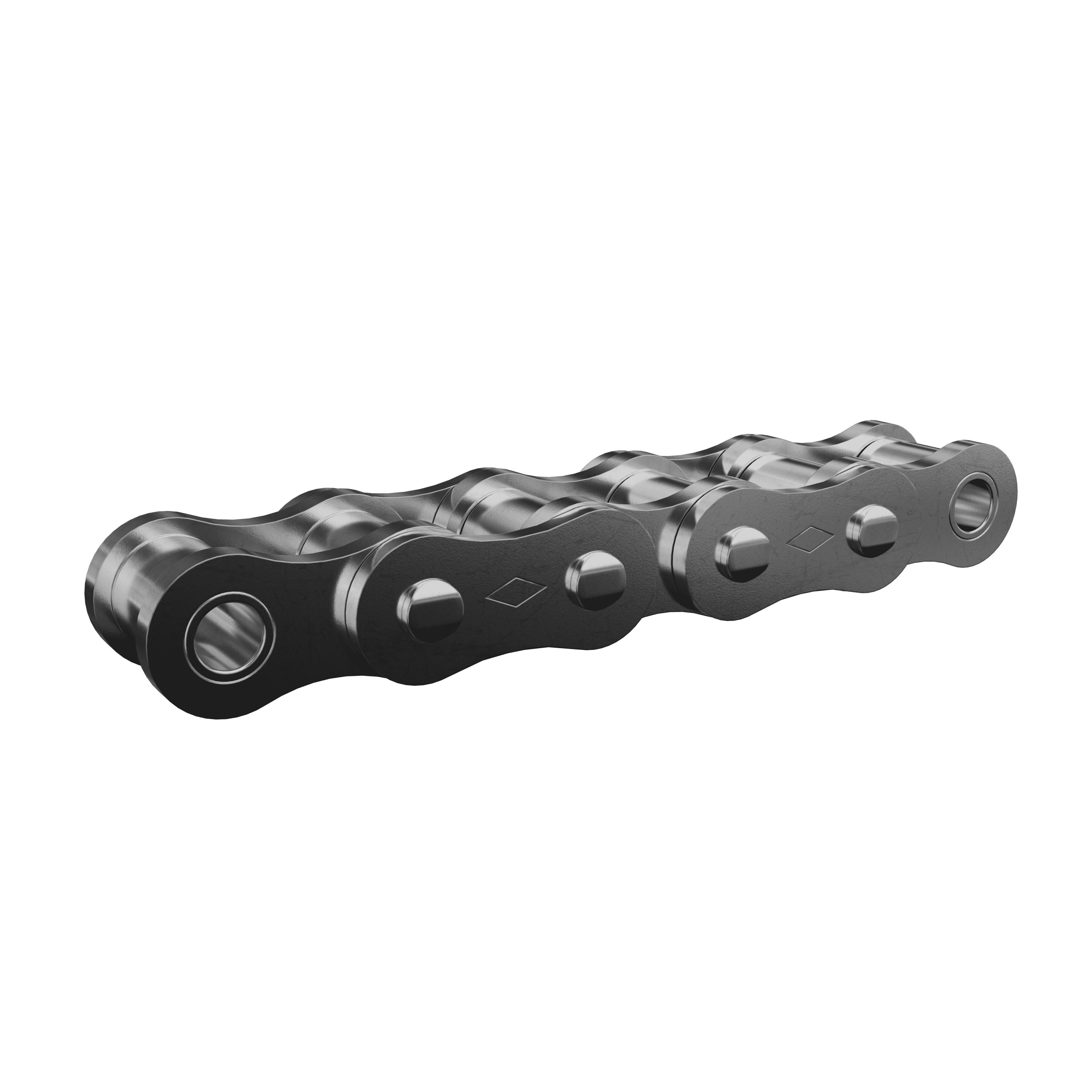

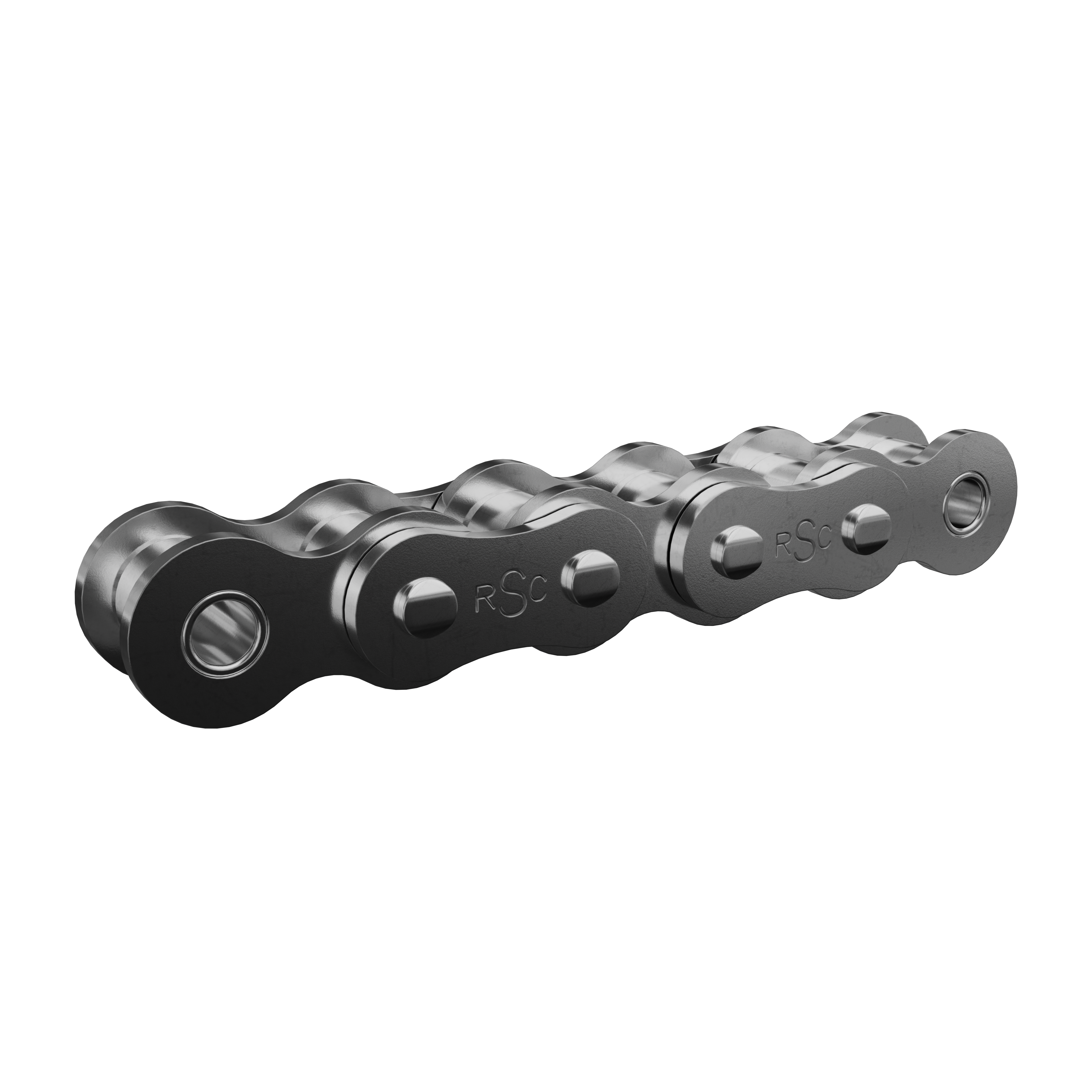

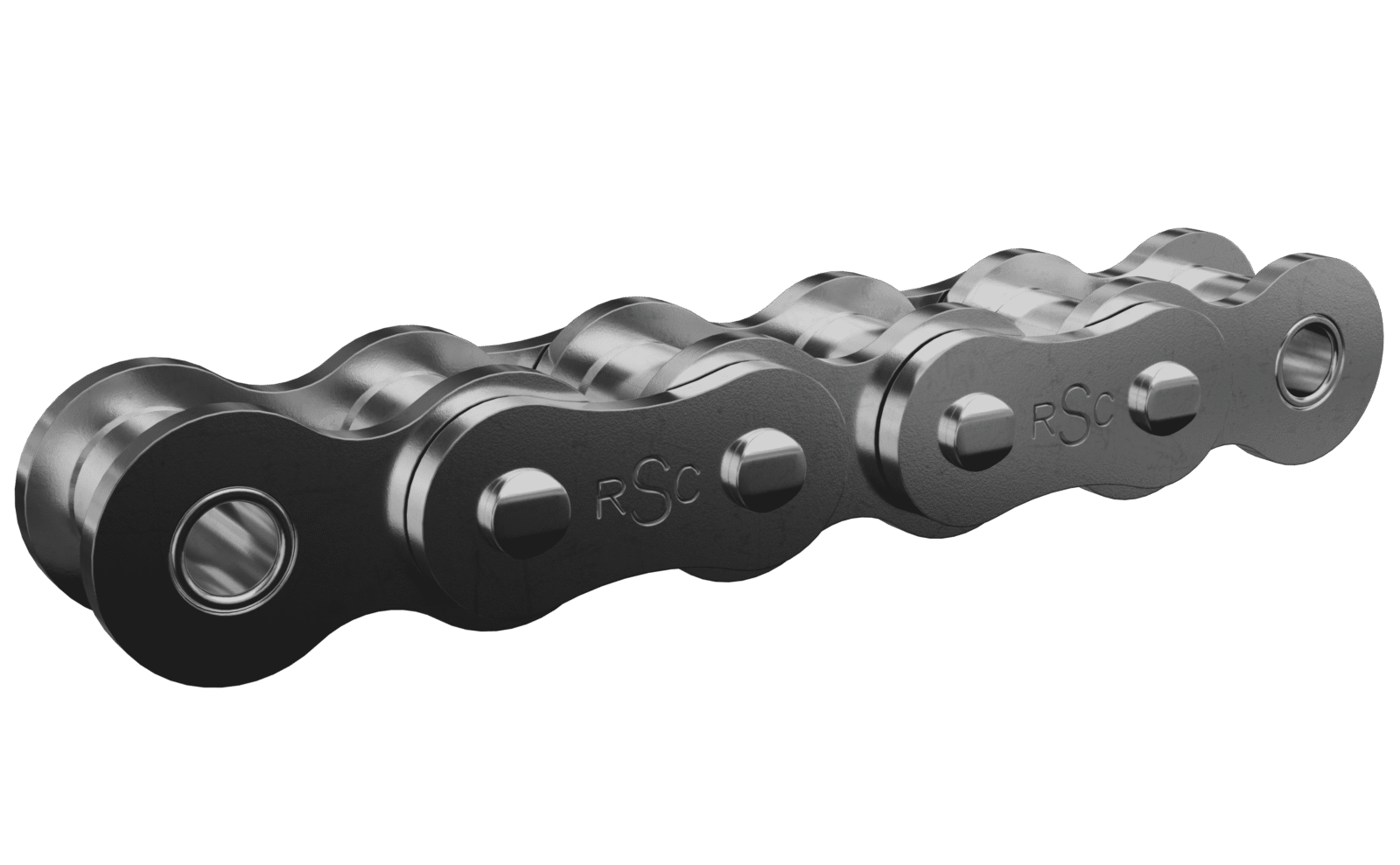

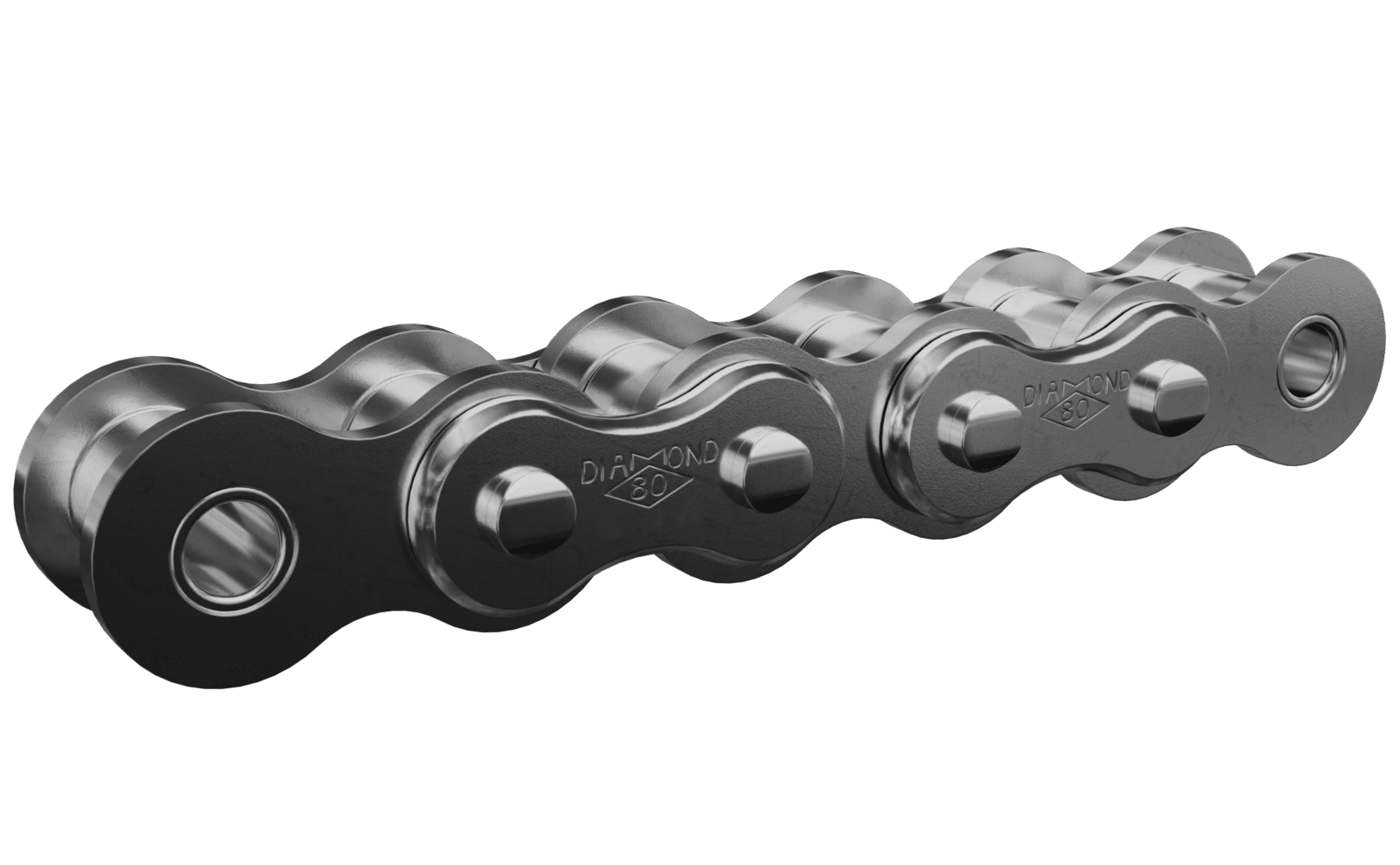

Sapphire® Stainless Standard Chain

Pin Link Plate: outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Stainless Steel: constructed with stainless steel components

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: inner link plate

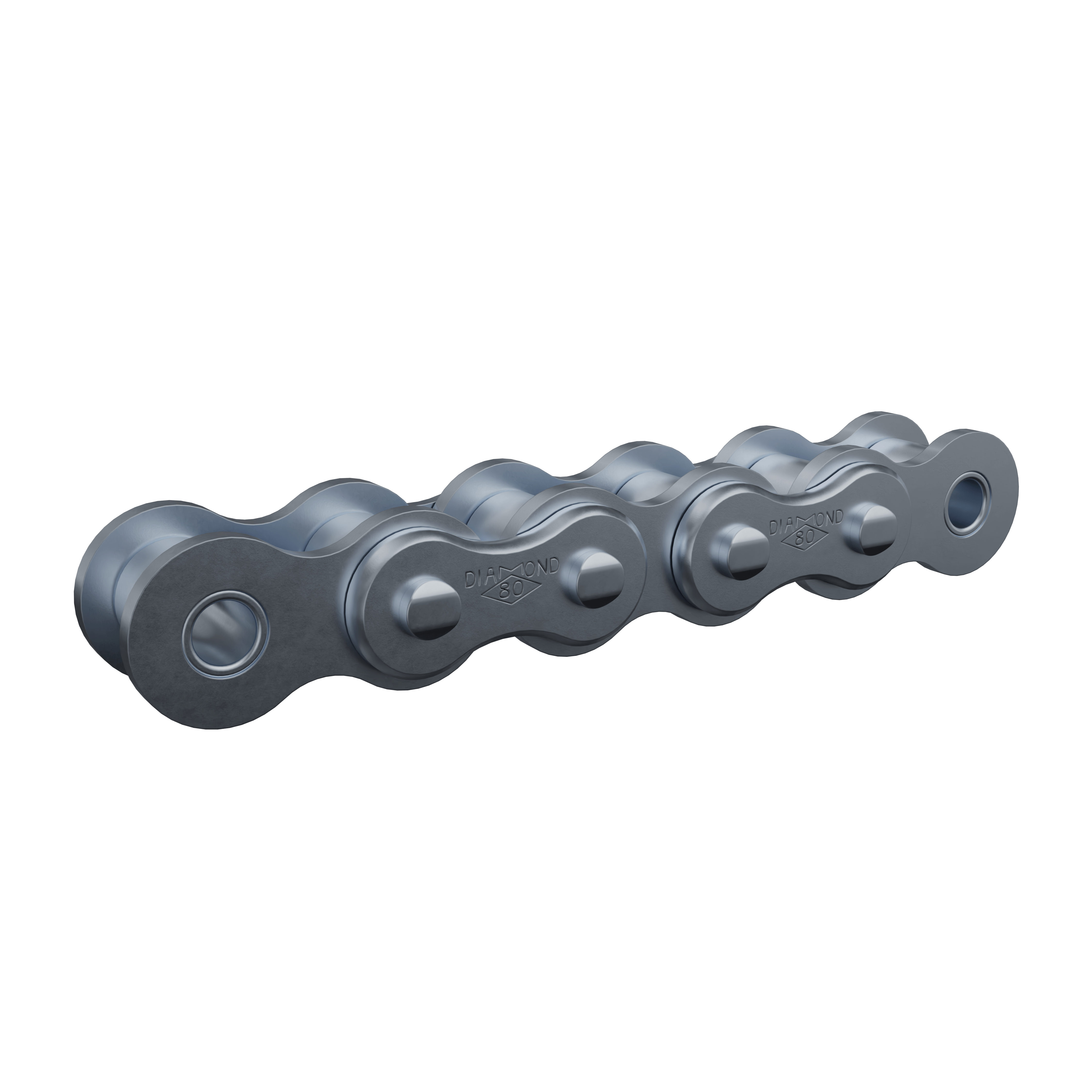

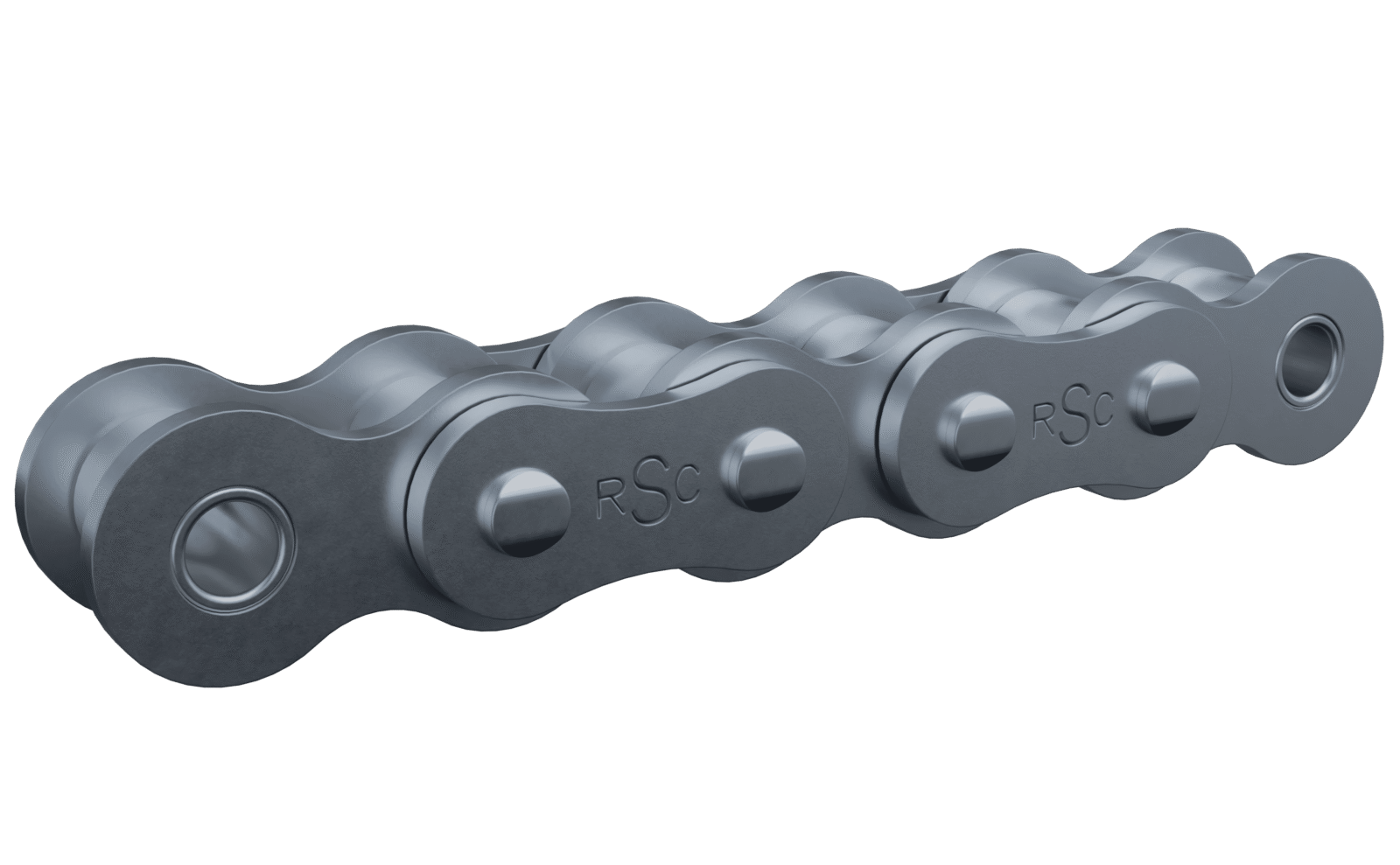

Sapphire® Nickel Plated Standard Chain

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Pin Link Plate: outer link plate with tapered (beveled) edges for plate orientation

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Nickel Plated Coating: heat-treated carbon steel as the base material with a nickel-plated coating

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: inner link plate

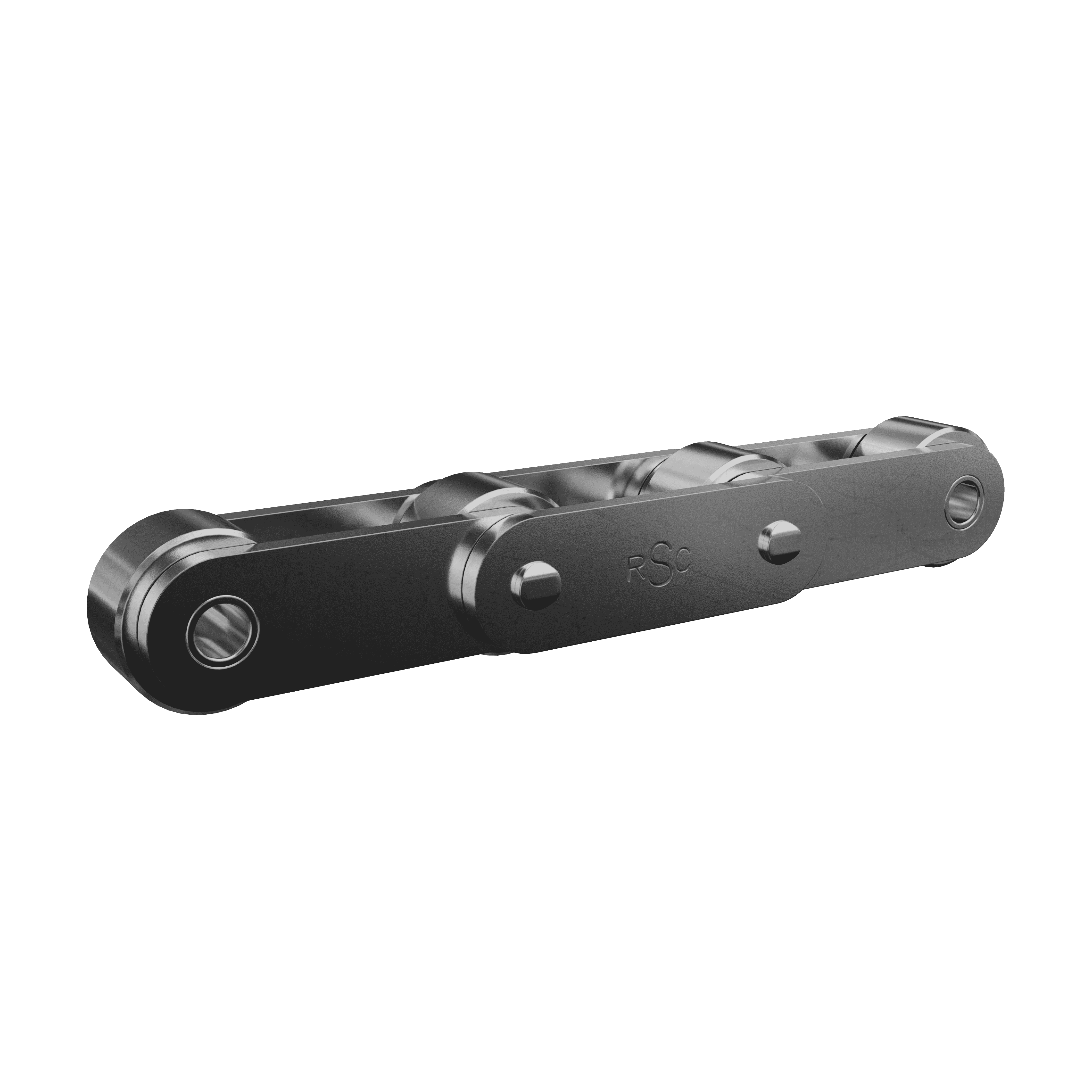

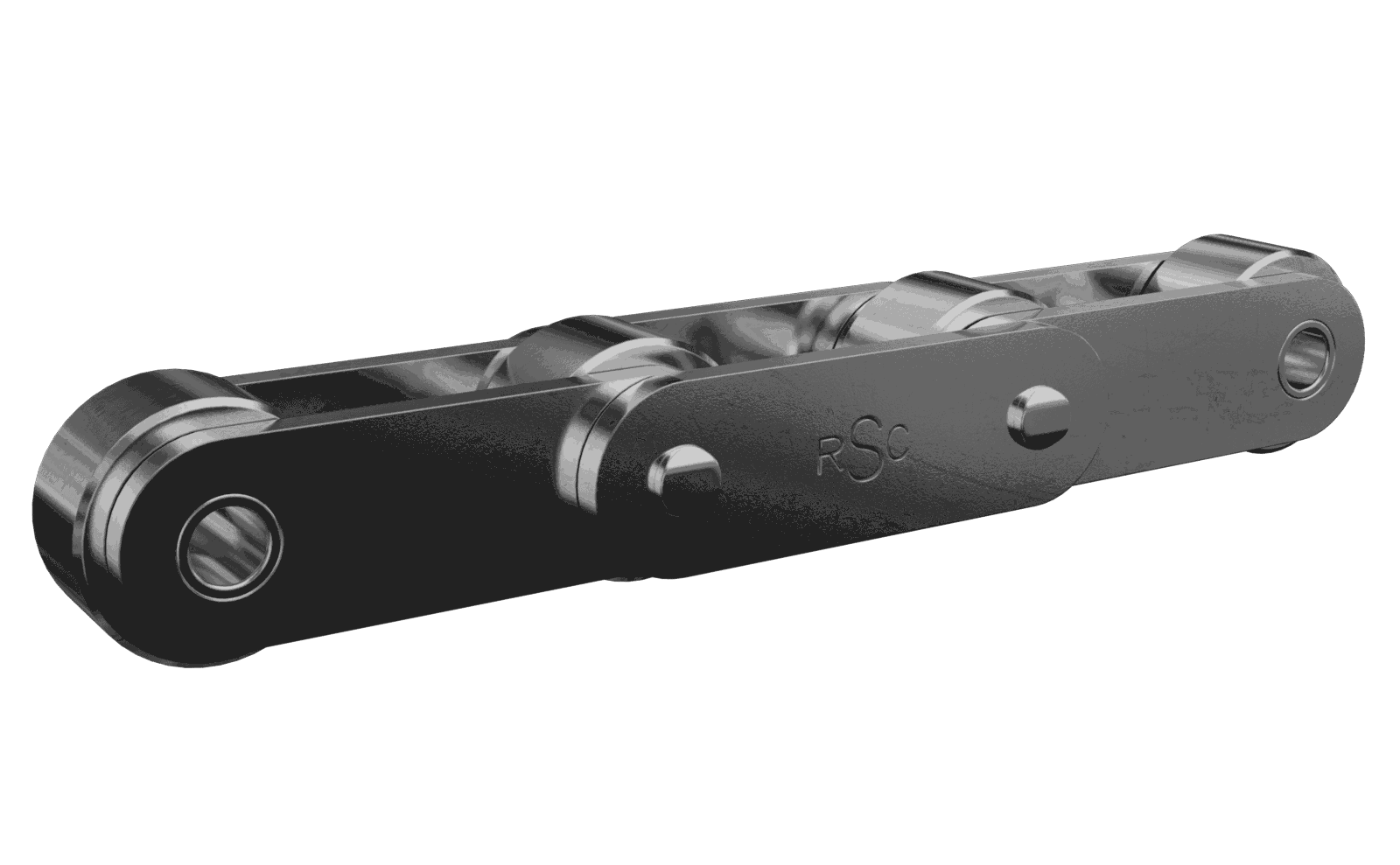

Sapphire® Stainless Steel Conveyor Chain

Pin Link Plate: double-pitch outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Stainless Steel: constructed with stainless steel components

Oversized Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: double-pitch inner link plate

Sapphire® Nickel Plated Conveyor Chain

Pin Link Plate: double-pitch outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Nickel Plated Coating: heat-treated carbon steel as the base material with a nickel-plated coating

Oversized Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: double-pitch inner link plate

Sapphire® Double-Pitch Conveyor Chain

Pin Link Plate: double-pitch outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: double-pitch inner link plate

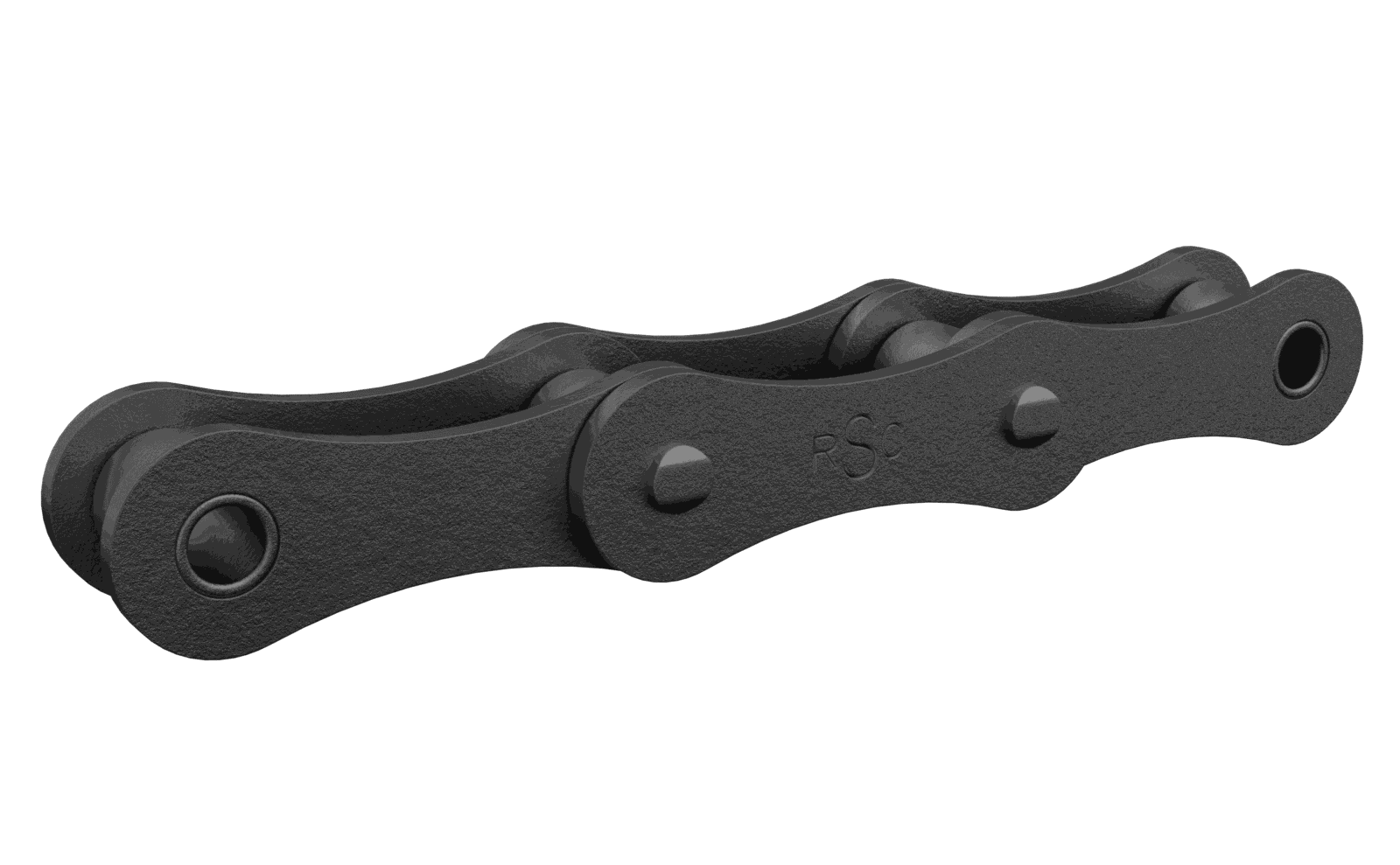

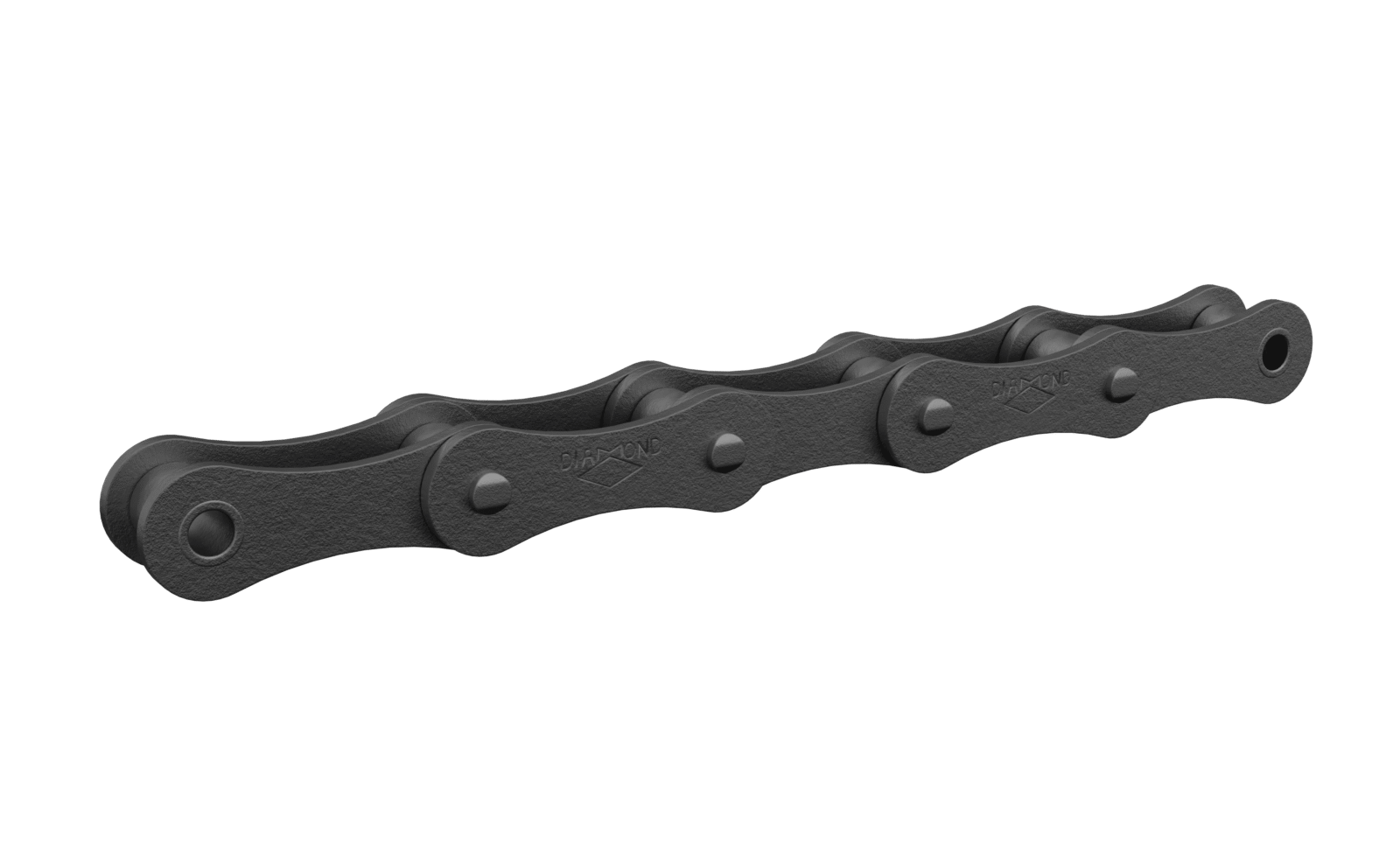

Sapphire® Double-Pitch Power Transmission Chain

Pin Link Plate: double-pitch, narrow-waisted outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: double-pitch, narrow-waisted inner link plate

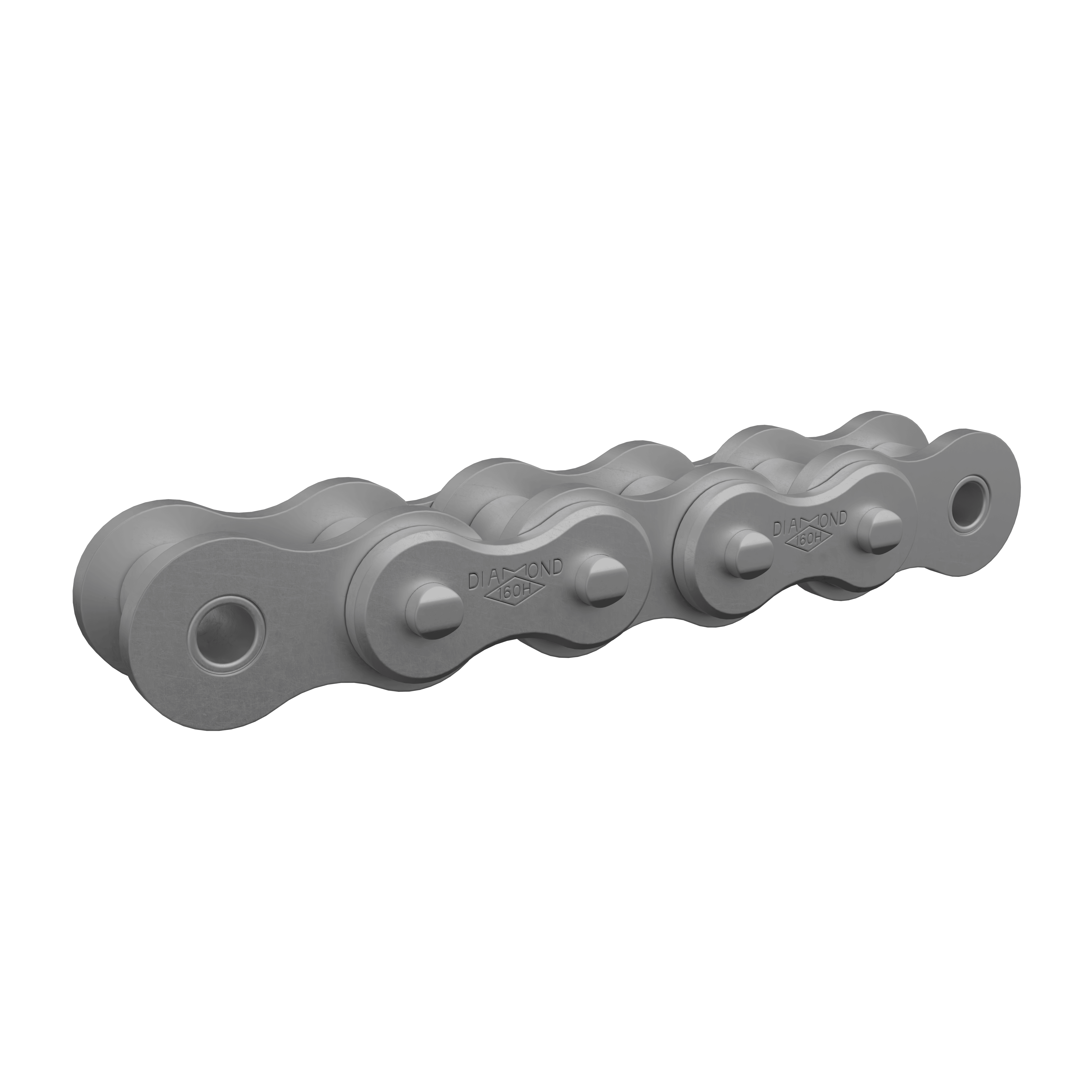

Sapphire® Heavy Series Chain

Pin Link Plate: heavy outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Roller Link Plate: heavy inner link plate

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Material: heat-treated carbon steel

Sapphire® Standard Series Chain

Pin Link Plate: outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: inner link plate

ISO/British Standard Oval Contour Chain

Pin Link Plate: oval contour outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: oval contour inner link plate

ISO/British Standard Stainless Steel Chain

Pin Link Plate: outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Stainless Steel: constructed with stainless steel components

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: inner link plate

ISO/British Standard Carbon Steel Chain

Pin Link Plate: outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Roller Link Plate: inner link plate

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Material: heat-treated carbon steel

Stainless Standard Series Chain

Pin Link Plate: outer link plate with tapered (beveled) edges for plate orientation

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Stainless Steel: constructed with stainless steel components (can be AP or AU series)

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: inner link plate

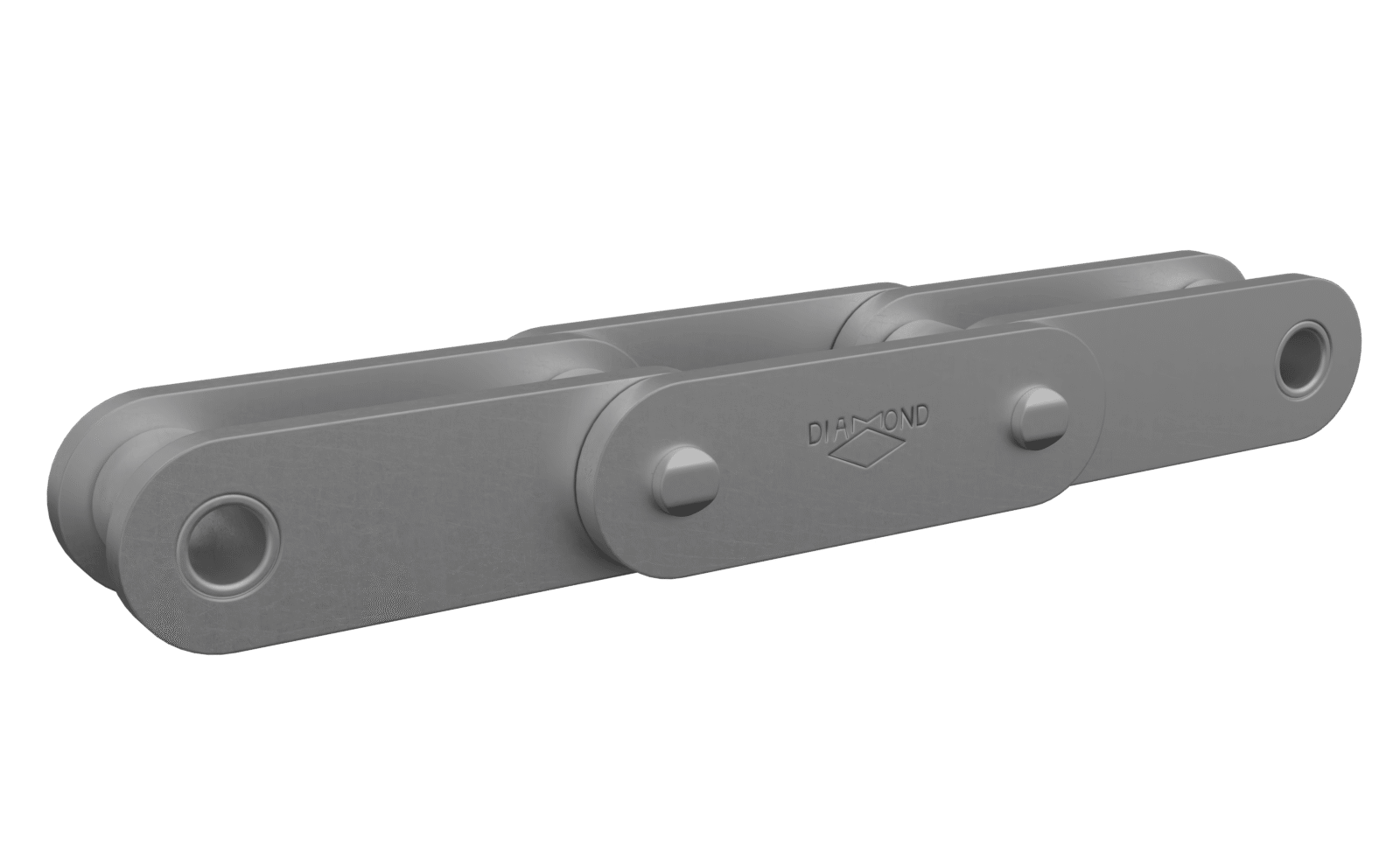

ACE Plated Double-Pitch Conveyor Chain

Pin Link Plate: double-pitch outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

ACE Plated Coating: heat-treated carbon steel as the base material with ACE (Anti-Corrosion Exterior) coating

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: doublle-pitch inner link plate

ACE Plated Heavy Series Chain

Pin Link Plate: heavy outer link plate with tapered (beveled) edges for plate orientation

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

ACE Plated Coating: heat-treated carbon steel as the base material with ACE (Anti-Corrosion Exterior) coating

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: heavy inner link plate

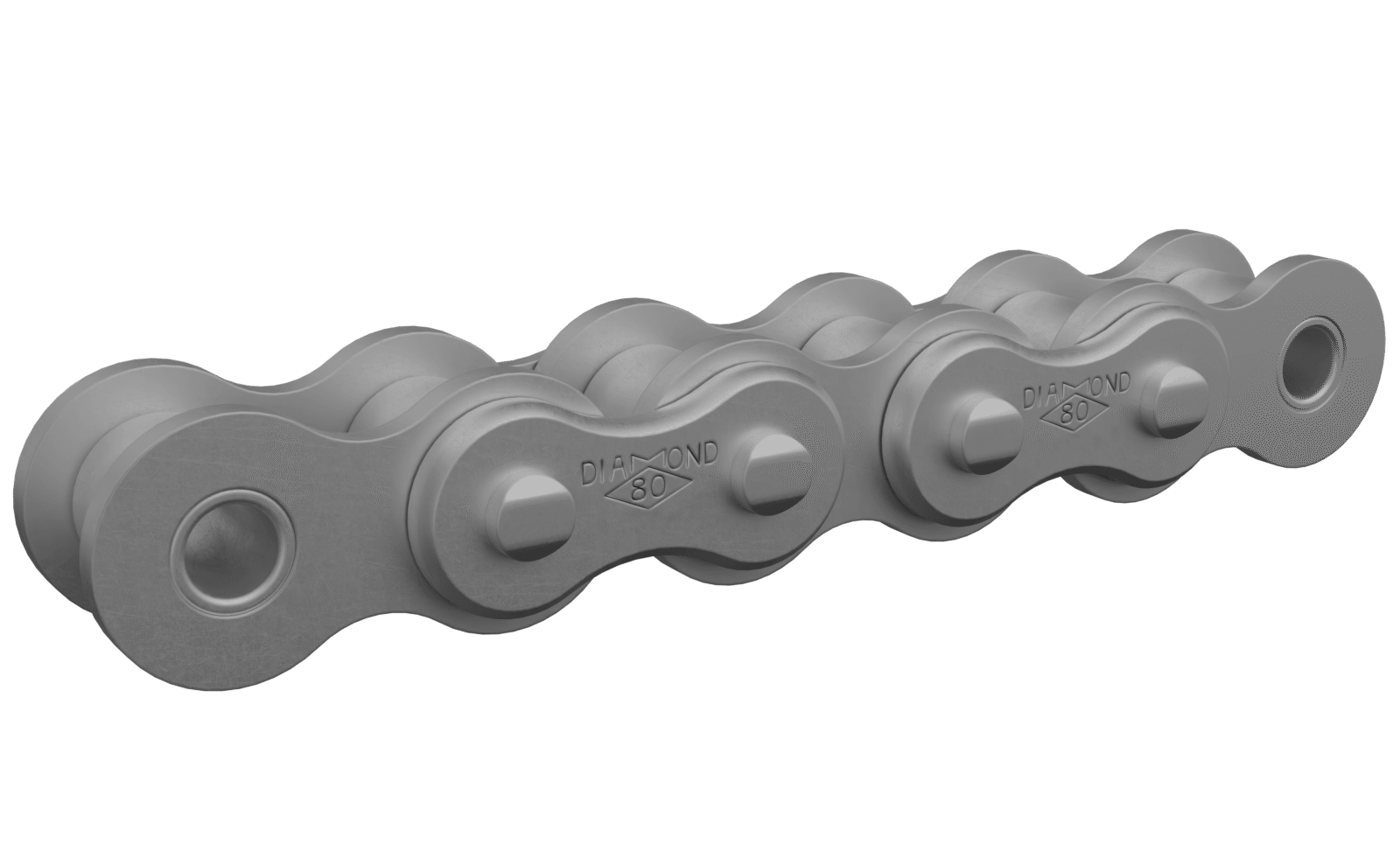

ACE Plated Standard Series Chain

Pin Link Plate: outer link plate with tapered (beveled) edges for plate orientation

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

ACE Plated Coating: heat-treated carbon steel as the base material with ACE (Anti-Corrosion Exterior) coating

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: inner link plate

Nickel Plated Double-Pitch Conveyor Chain

Pin Link Plate: double-pitch outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Nickel Plated Coating: heat-treated carbon steel as the base material with a nickel-plated coating

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: double-pitch inner link plate

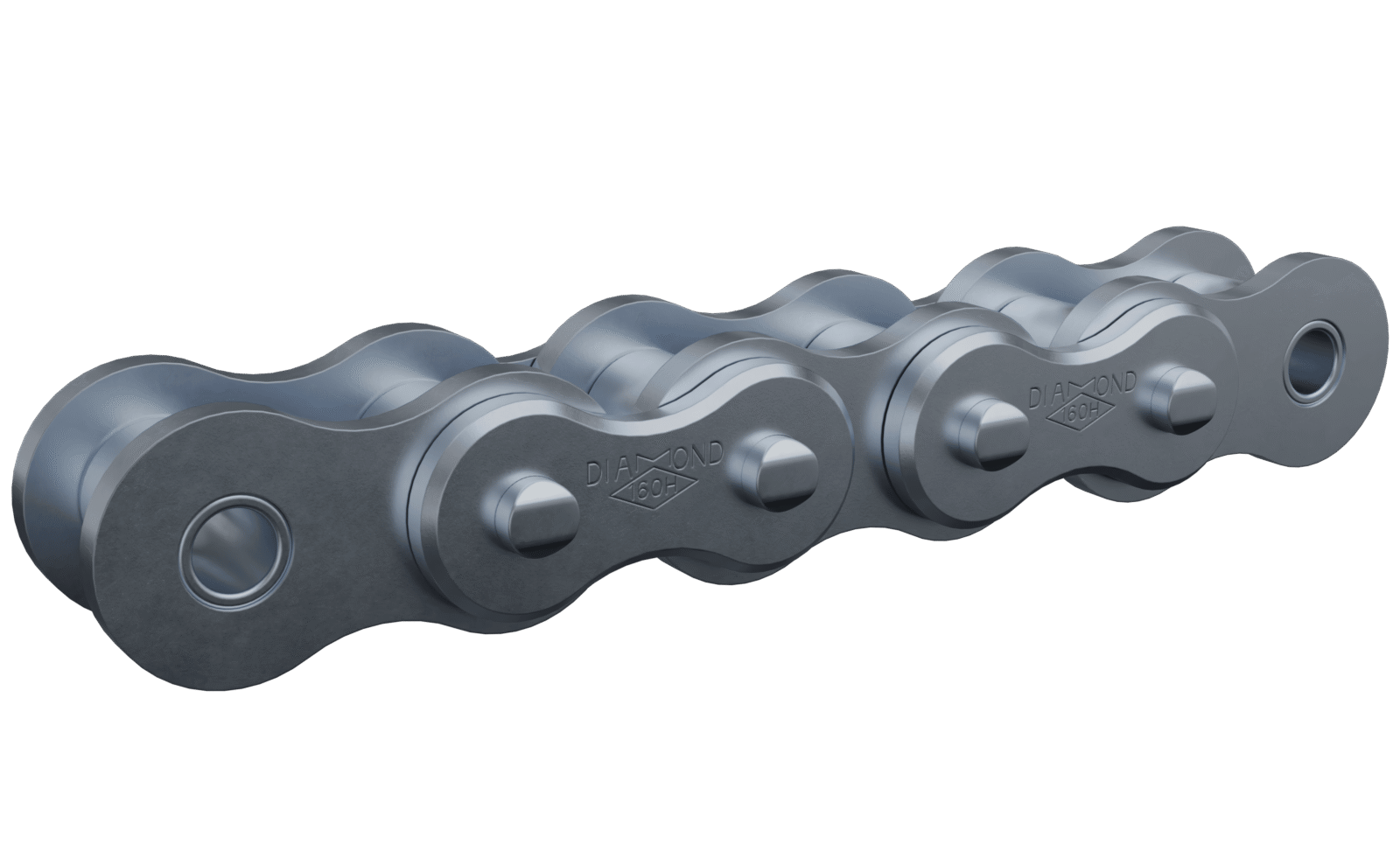

Nickel Plated Heavy Series Chain

Pin Link Plate: heavy outer link plate with tapered (beveled) edges for plate orientation

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Nickel Plated Coating: heat-treated carbon steel as the base material with a nickel-plated coating

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: heavy inner link plate

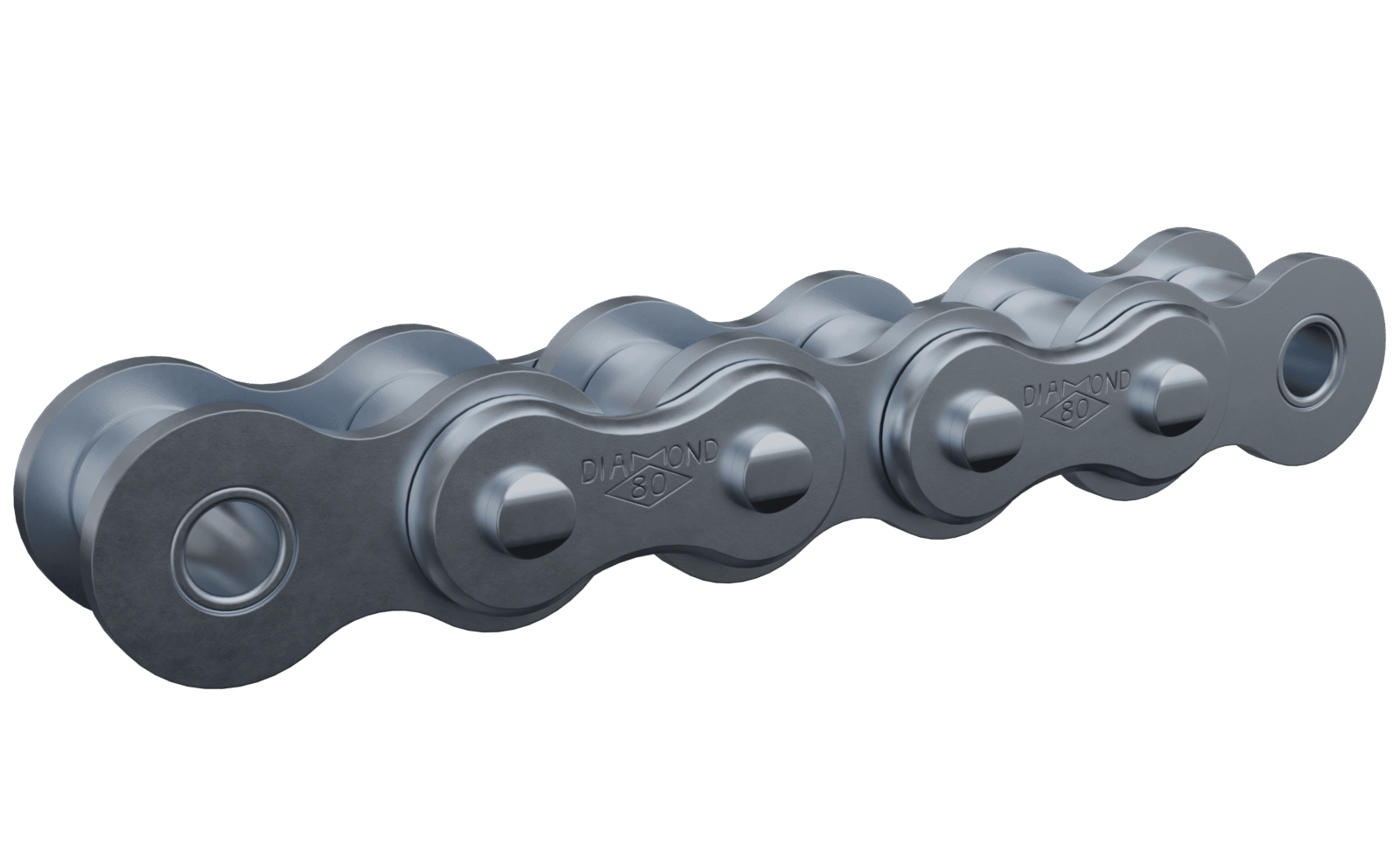

Nickel Plated Standard Series Chain

Pin Link Plate: outer link plate with tapered (beveled) edges for plate orientation

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Nickel Plated Coating: heat-treated carbon steel as the base material with a nickel-plated coating

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: inner link plate

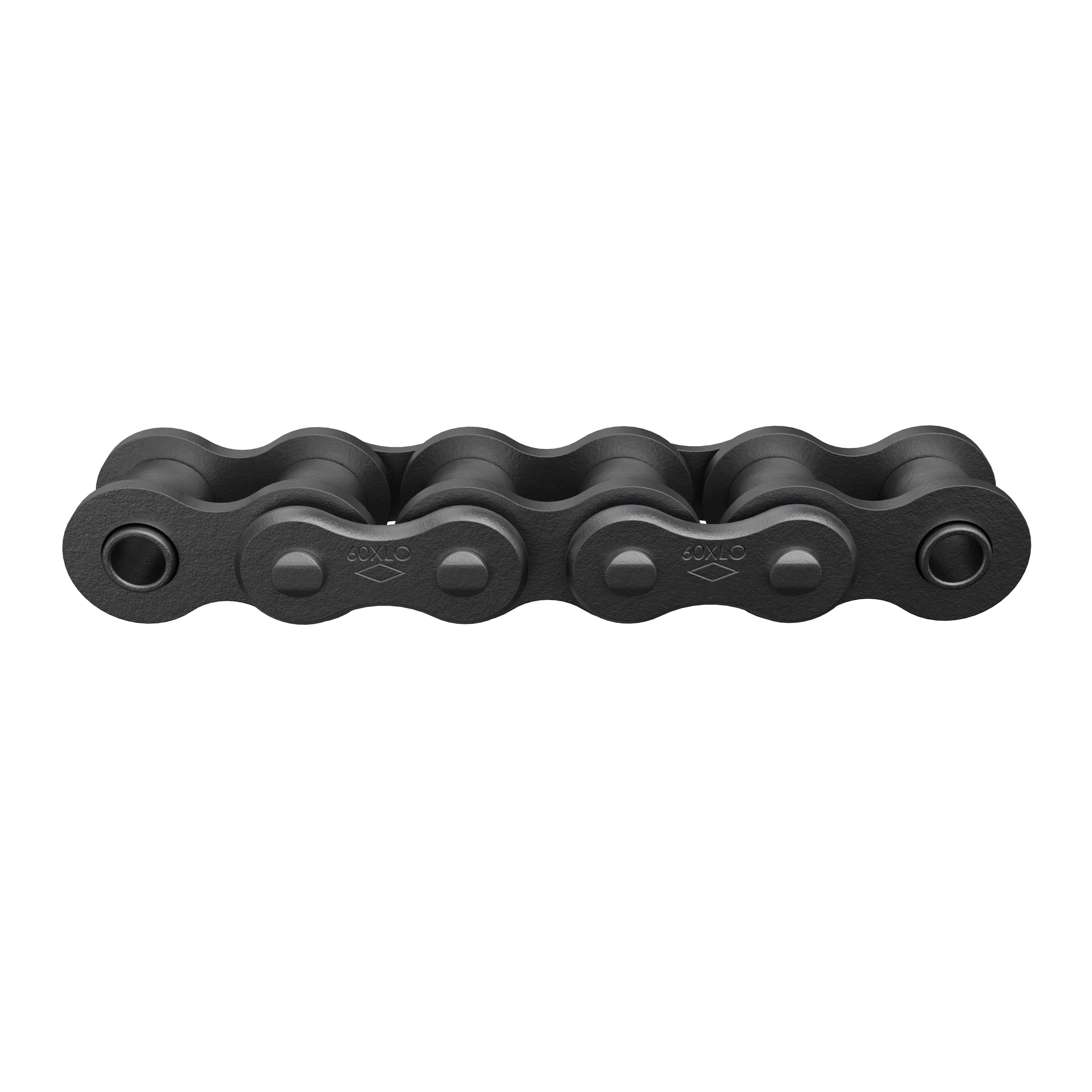

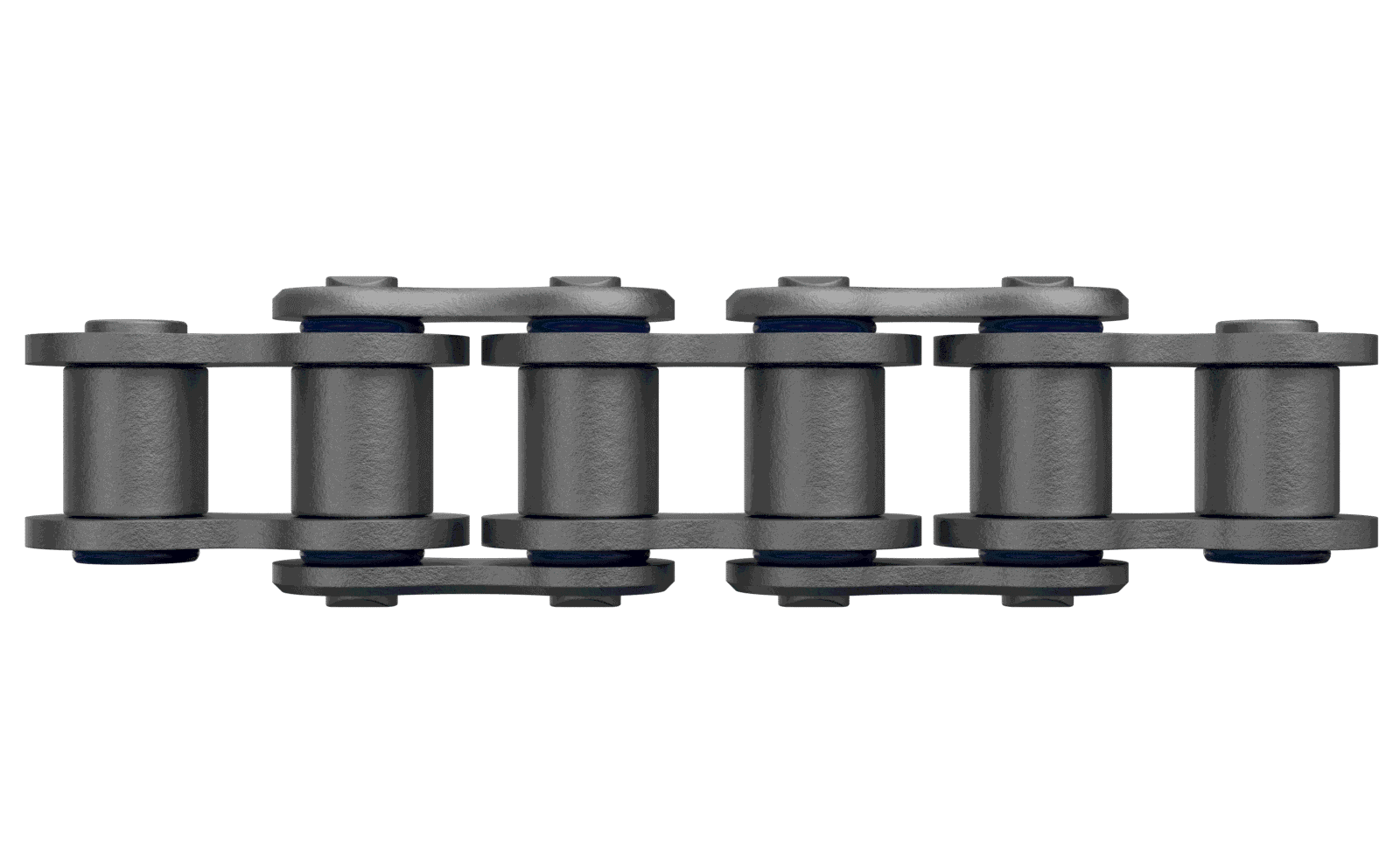

XLO O-Ring Chain

Pin Link Plate: outer link plate with tapered (beveled) edges for plate orientation

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: inner link plate

O-Ring: specialized o-ring that seals lubricant into pin/bushing joint

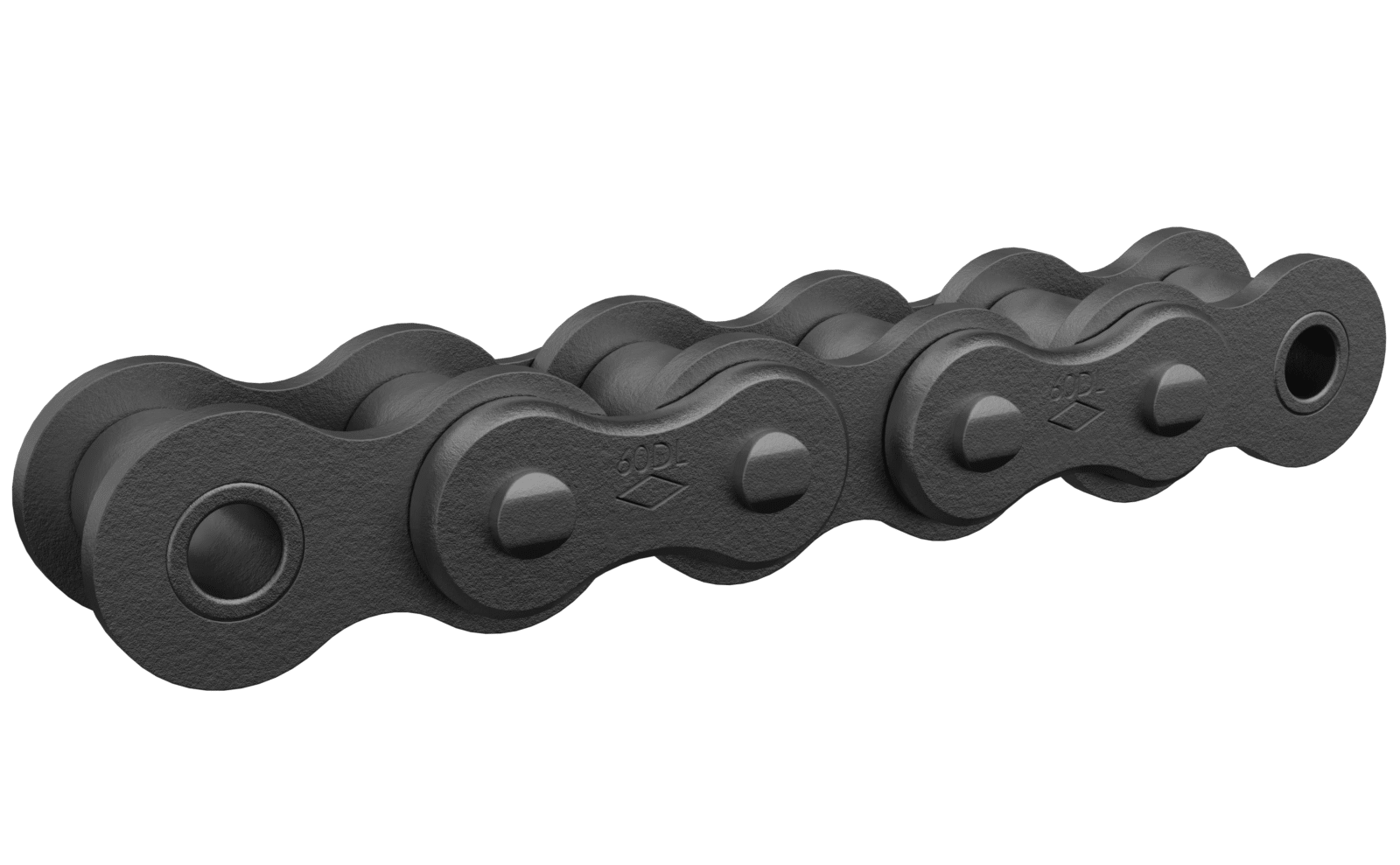

Duralube® LIVE Chain

Pin Link Plate: outer link plate with tapered (beveled) edges for plate orientation

Bushing: sintered, hollow cylinder impregnated with oil and press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: inner link plate

Thermoforming Chain

Pin Link Plate: outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: SK-1 straight attachment on inner link plate

Middle Spike Attachment: attachment on outer link plate

Pin Oven Chain

Pin Link Plate: outer link plate with tapered (beveled) edges for plate orientation

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Standard Pin: a long solid cylinder case-hardened and press-fit into the pin link plate

Roller Link Plate: inner link plate with tapered (beveled) edges for plate orientation

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Material: heat-treated carbon steel

Extended Pin: pin press fitted into the link plates, extending far beyond the length of the strand

Coupling Chain

Pin Link Plate: outer link plate with tapered (beveled) edges for plate orientation

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: inner link plate

Press Fit Construction: middle plates are press-fit style

Cottered Pin: a long solid cylinder case-hardened and press-fit into the pin link plate with a cross-drilled hole for inserting a cotter key

Double-Pitch Conveyor Chain

Pin Link Plate: double-pitch outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: double-pitch inner link plate

Double-Pitch Power Transmission Chain

Pin Link Plate: double-pitch, narrow-waisted outer link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Material: heat-treated carbon steel

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Roller Link Plate: double-pitch, narrow-waisted inner link plate

Heavy Series Chain

Pin Link Plate: heavy wide-waist outer link plate

Roller Link Plate: heavy wide-waist inner link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder (can be case-hardened or through-hardened) and press-fit into the pin link plate, which are then side-mashed (riveted)

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Material: heat-treated carbon steel

ANSI Standard Series Chain

Pin Link Plate: outer link plate with tapered (beveled) edges for plate orientation

Roller Link Plate: inner link plate

Bushing: hollow cylinder press-fit into the roller link plate (pin articulates inside the bushing)

Riveted Pin: a long solid cylinder case-hardened and press-fit into the pin link plate, which are then side-mashed (riveted)

Roller: free-rotating hollow cylinder which fits loosely over the bushing

Material: heat-treated carbon steel
