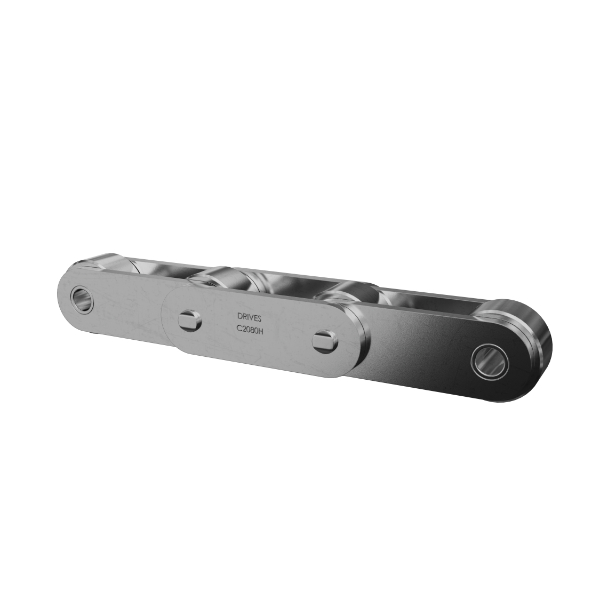

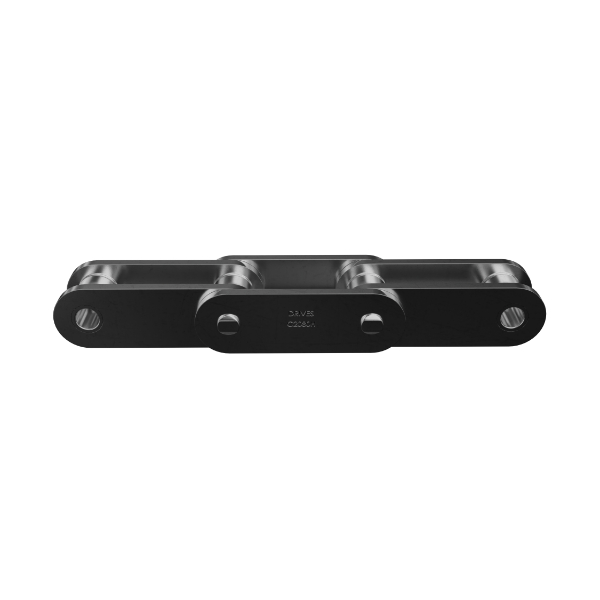

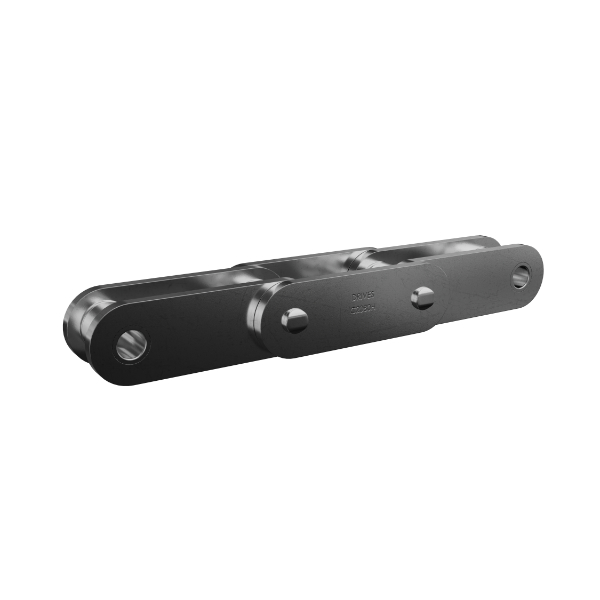

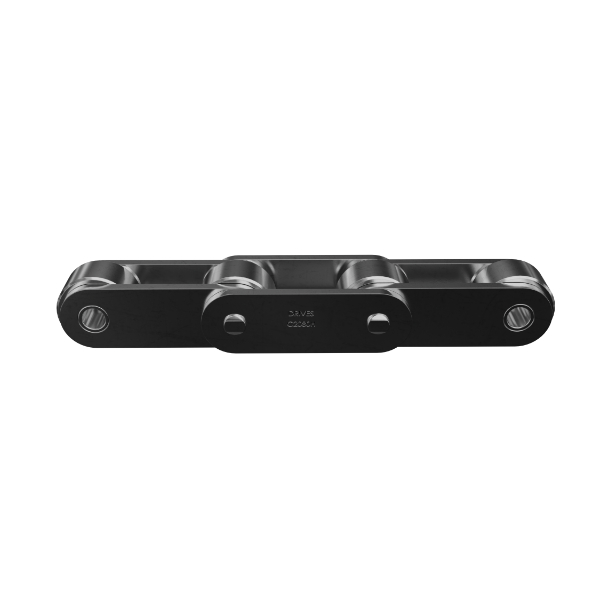

Stainless Steel Double-Pitch Conveyor Chain

Where to BuyContact Us

Drives typically offers Double-Pitch Conveyor chain in two stainless steel offerings: 600 AS Series and 304 PS Series. Choose which description fits your application best:

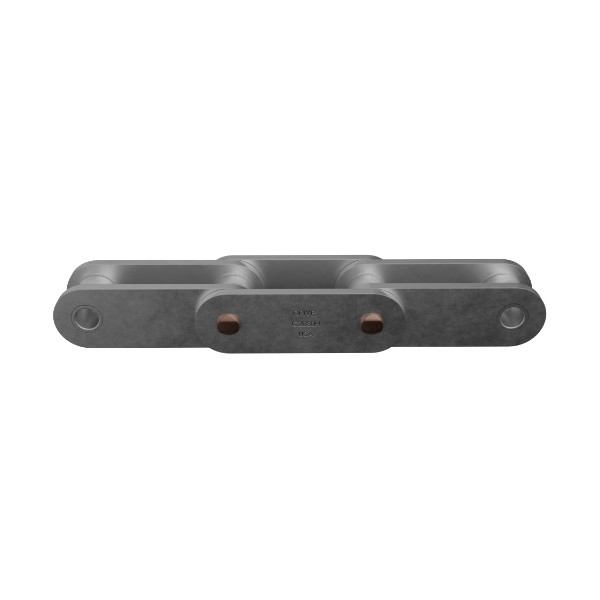

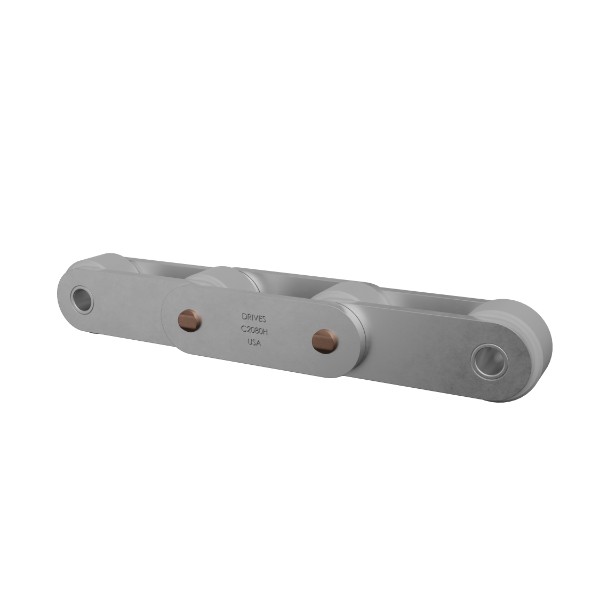

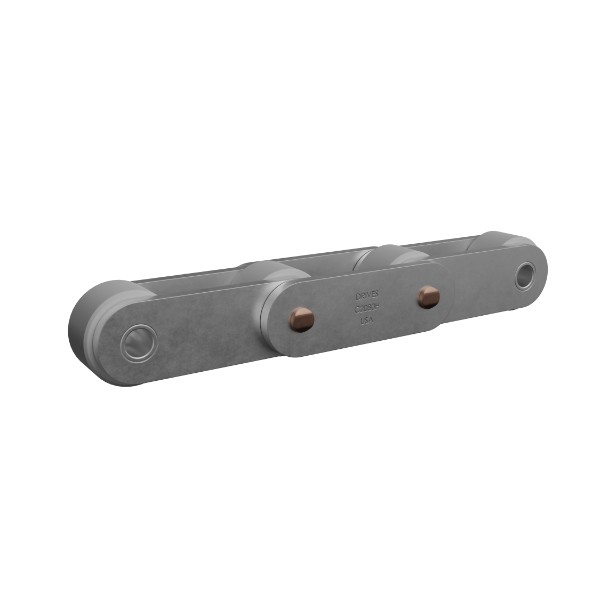

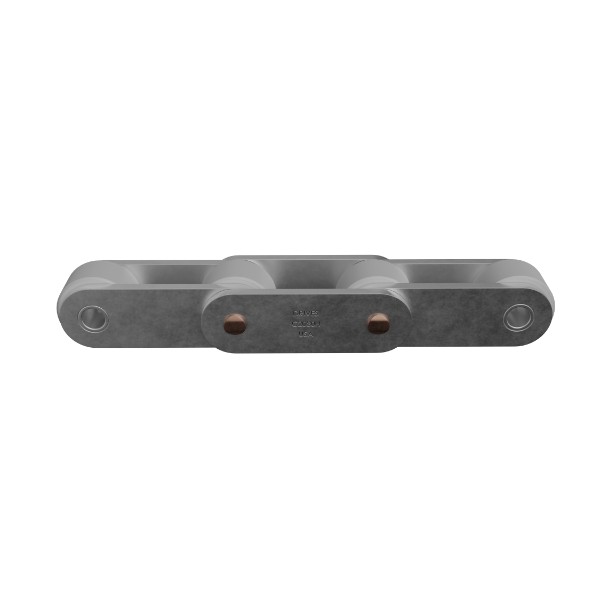

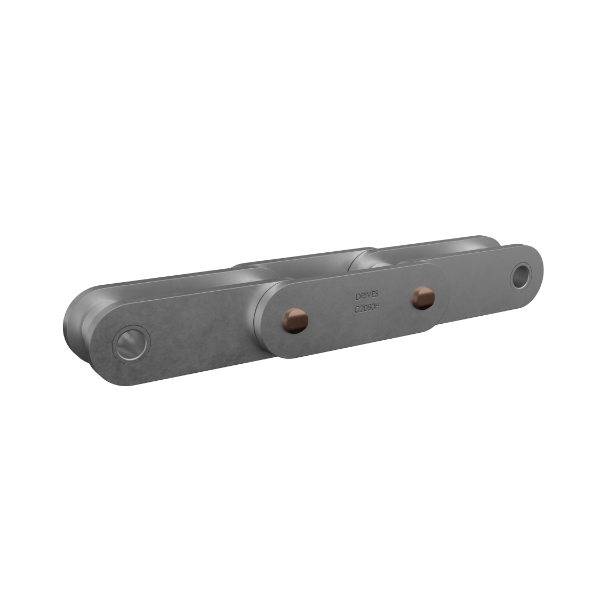

  • 600 AS Series: Magnetic, stainless steel chain designed for corrosive drive or conveyor applications with a high number of articulations. Hardened round parts provide up to a 50% higher working load and better wear life than 304 Series, with the caveat being less corrosion resistance than 304 Series.

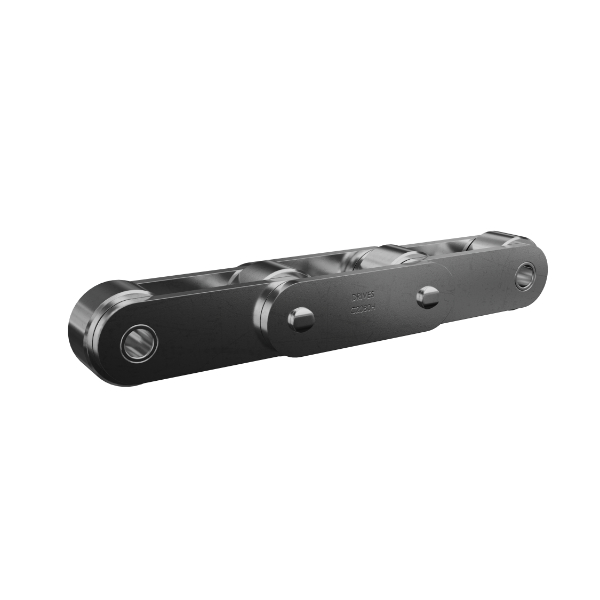

  • 304 PS Series: Non-magnetic, stainless steel chain designed for use in corrosive or high temperature environments. Offers less working load or wear life than 600 Series.



Features & Benefits

  • Materials

    Starting with the best materials leads to higher strength and better wear life. Our manufacturing process begins with raw materials that meet exacting standards for metal grade, mechanical properties, carbon and alloy content to ensure minimization of impurities that impact tensile and fatigue strength.

  • Fabrication

    Drives designs each component to exacting dimensional standards for optimal performance. Precision ground pins, solid rollers and bushings work in concert with linkplates to maximize the bearing area, improving fatigue life and working loads as a result. In addition, Drives® Stainless Steel Double Pitch Conveyor chain, either 600 or 304 Series, offer corrosion resistance in corrosive or extreme temperature environments. This chain is also available with standard or oversized rollers to best fit your application.

  • Heat Treatment

    Strict control of atmosphere, time and temperature optimize the material properties – increasing strength, durability and wear resistance.

  • Shot Peening

    We shot peen our roller and link plates for greater fatigue strength. This adds a layer of compressive stress that helps components resist failure when exposed to repeated high loads. In addition, we press steel balls through the pitch holes in a process called ballizing – effectively optimizing bearing contact between pins, bushings and linkplates to increase chain fatigue resistance and pin retention.

  • Lubrication

    We use a proprietary lubrication process on all lubricated chains for enhanced corrosion protection and extended wear life.

  • Preloading

    Following assembly, all chains are preloaded to firmly seat the pins and bushings. This is to reduce initial run-in and extend the wear life of the chain.

Applications

Food & Beverage

General Industry

Material Transport

Packaging

Choosing the Chain for Your Application

Use our Chain Configurator or Chain Engineer Mobile Web App for assistance selecting the right chain for your application. If you have a challenging demand beyond the scope of a standard Drives® chain, we would be excited to partner with you to provide custom-manufactured solutions to meet your specific needs.
